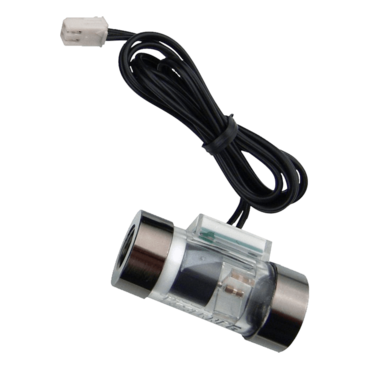

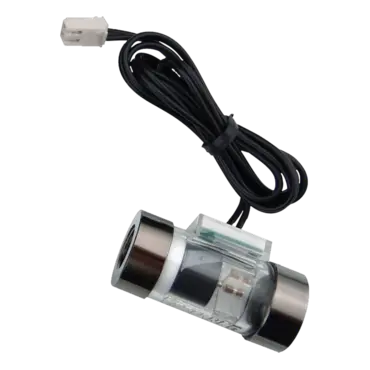

Koolance's inline flow meters provide electronic indication of real-time coolant flow rate. G 1/4 BSPP fitting threads, and primary materials are nickel-plated brass and acrylic. Approximate read range is 1.0-20 LPM (15.6-317 GPH). Wire length is about 28" (70cm).
|Flow Rate Range||1.0-20 LPM (15.6-317 GPH)|
|Weight||0.13 lb (0.06 kg)|
|Fitting Thread||G 1/4 BSPP|
|Materials||Nickel-Plated Brass, Brass, PMMA Acrylic, Stainless Steel, POM Acetal, Plastic, SmCo5|
|Max Pressure Tolerance @ 25°C||2kgf/cm2 (28.5psi)|
|Max Temp. Operating Tolerance||70°C (158°F)|
|Min Temp. Operating Tolerance||0°C (32°F)|
