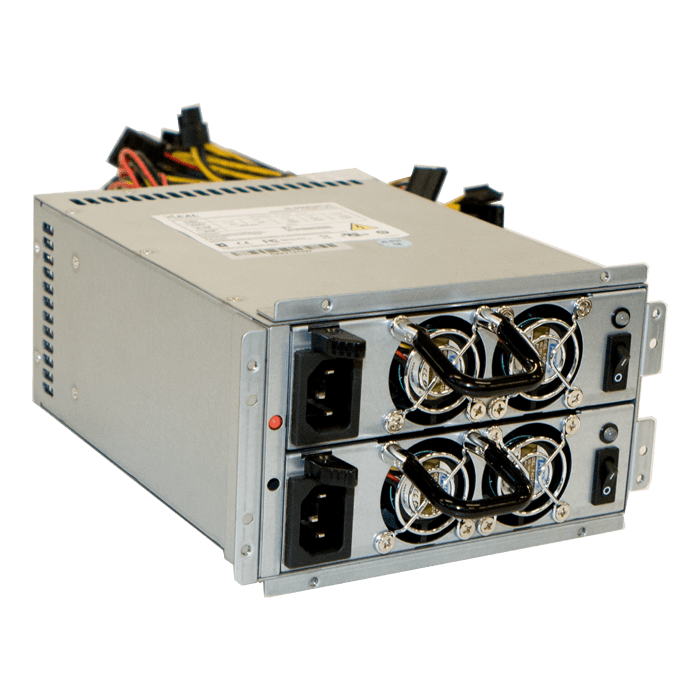

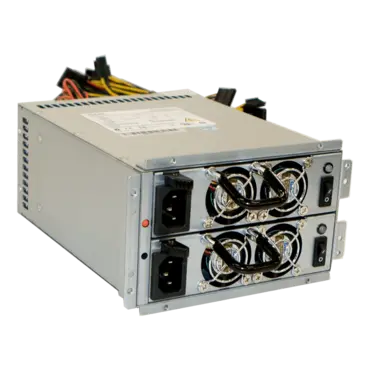

IS-600R8PUC, 80 PLUS 600W, Mini Redundant, PS2 Power Supply
Quantity:
- SKU: 15688748
- Manufacturer: ISTARUSA
- MPN: IS-600R8PUC
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$468.05
IS-600R8PUC, 80 PLUS 600W, Mini Redundant, PS2 Power Supply
XEAL dual AC input Mini Redundant Power Supply IS-600R8PUC. It offers your server and workstation zero down time with full 600w power redundancy.Hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. Standard PS2 form factor fits most ATX or 4U chassis. A good start for your mission critical system integrations.
- Efficiency: 80% at full load
- PSON Remote on/off Control
- Power Failure Alarm & Signals
- Power Status LED on Module
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
- MTBF > 250000 Hours
- Meet IEC62368
| Model Number | IS-600R8PUC |
| RoHS Compliance | Yes |
| Output Wattage | 600 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 20+4 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 9 SATA :: 4 Floppy :: 1 6pin PCIE :: 1 |
| Dimensions (WxHxD) | 5.91" x 3.35" x 7.84" 150.1 mm x 85.1 mm x 199.1 mm |
