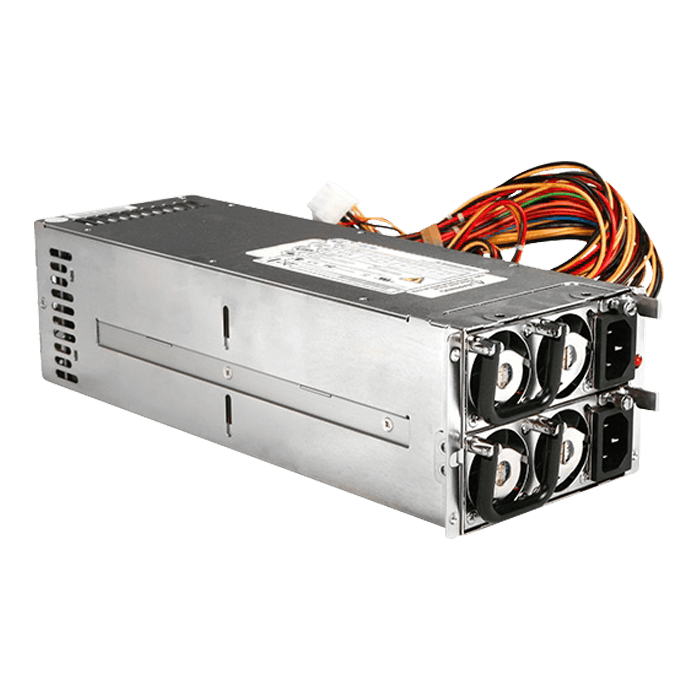

IS-760S2UPD8, 80 PLUS 760W, Redundant, 2U Power Supply

  • SKU: 11003381
  • Manufacturer: ISTARUSA
  • MPN: IS-760S2UPD8
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
IS-760S2UPD8, 80 PLUS 760W, Redundant, 2U Power Supply

XEAL dual AC input 2U 760W Redundant Power Supply IS-760S2UPD8. It offers your server and workstation zero down time with full 760W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.


IS-760S2UPD8 760W 2U High Efficiency Redundant Power Supply

  • Universal Input, Active PFC
  • High Efficiency 80% minimum
  • Power Failure Alarm & Signals
  • OPP (Over Power Protection)
  • OVP (Over Voltage Protection)
  • OCP (Over Current Protection)
  • SCP (Short Circuit Protection)
Model Number IS-760S2UPD8
RoHS Compliance Yes
Output Wattage 760
Efficiency Min 80%
Connector Type Main Connector :: 24 pin
4pin 12V :: 1
8pin EPS 12V :: 2
Molex :: 6
SATA :: 2
Floppy :: 2
Dimensions (WxHxD) 3.98" x 3.31" x 11.81"
101.1 mm x 84.1 mm x 300.0 mm
