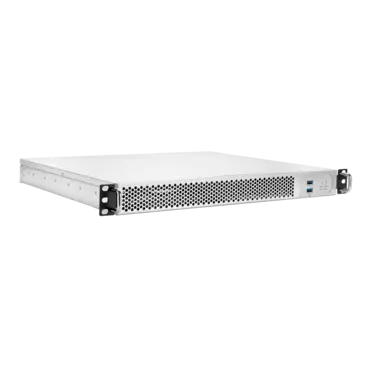

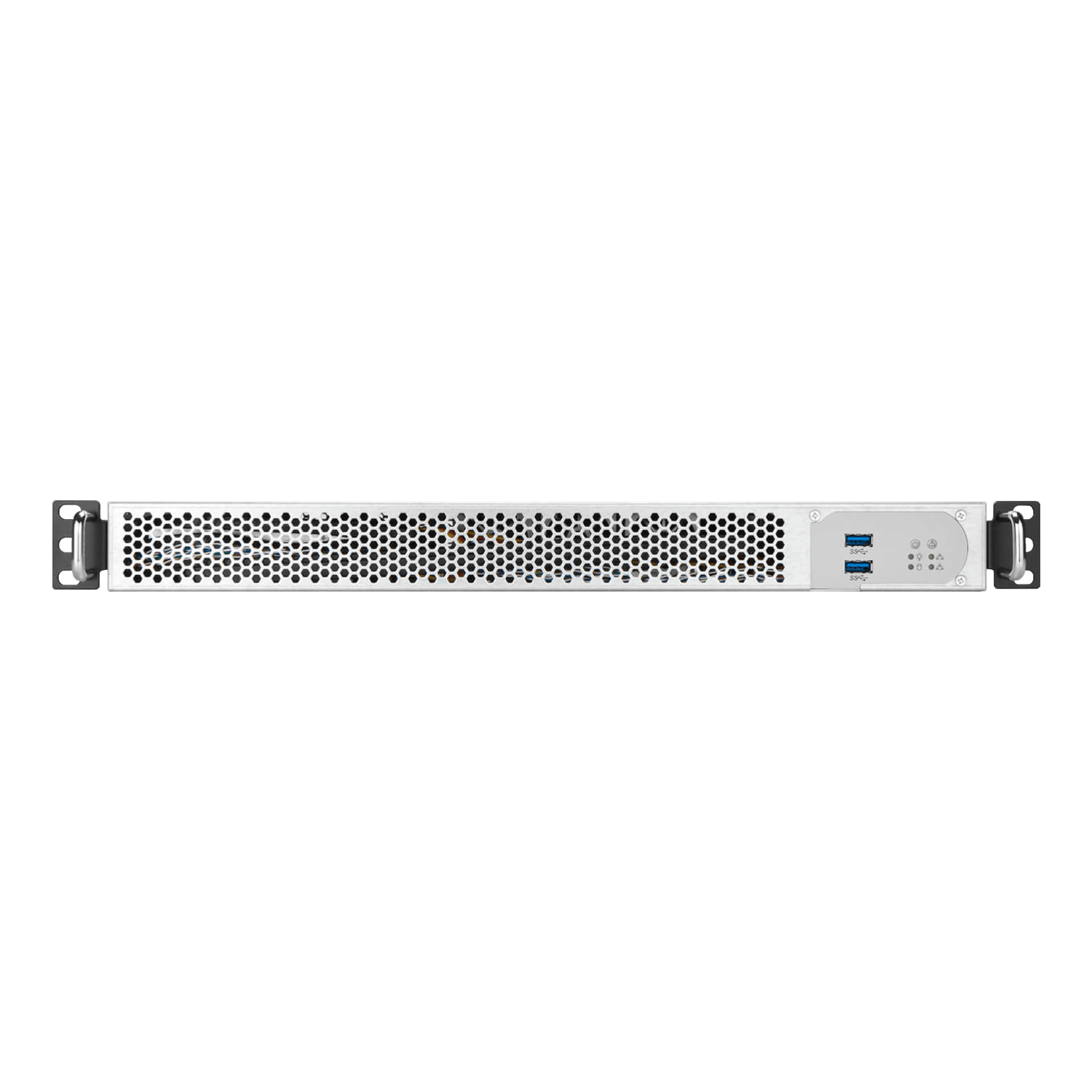

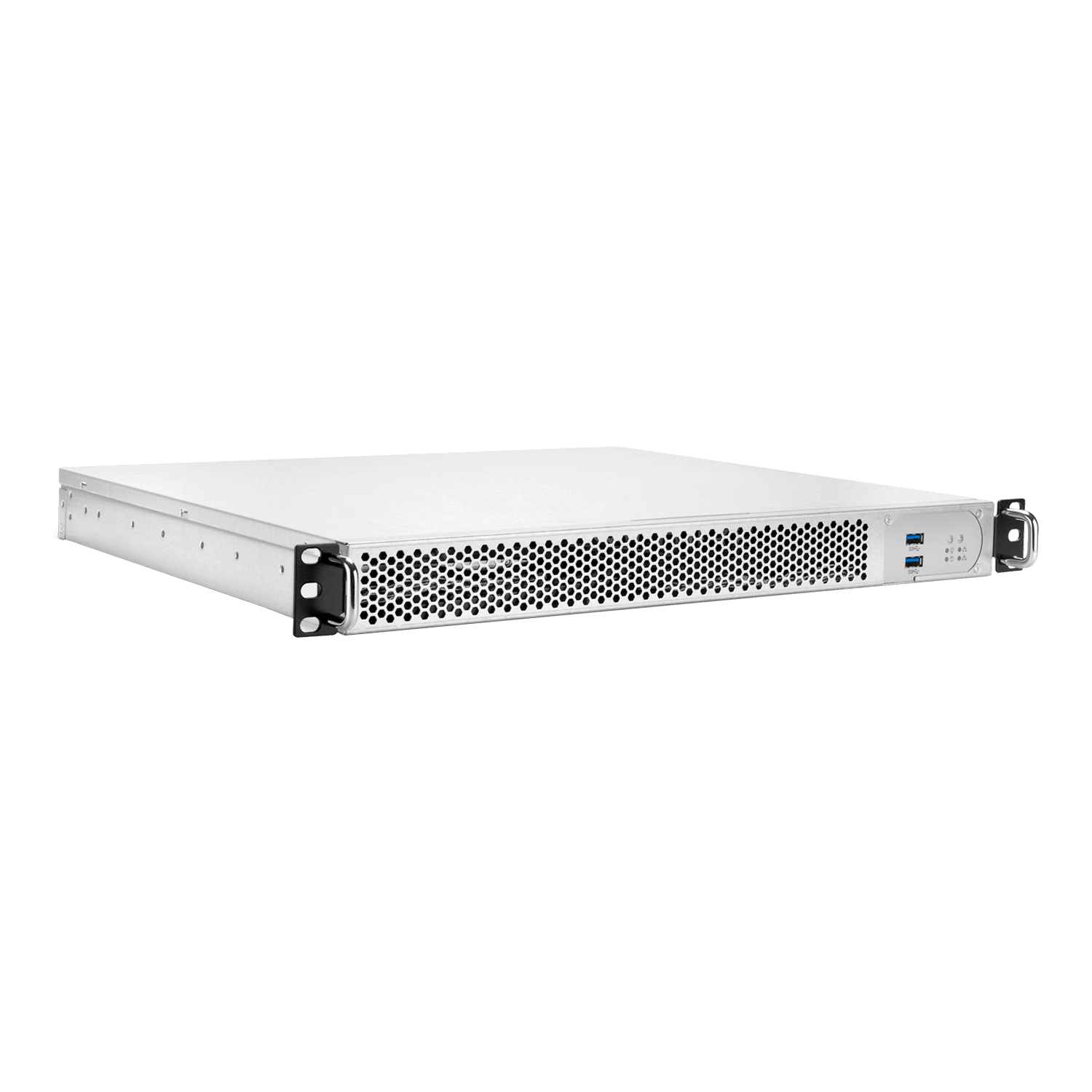

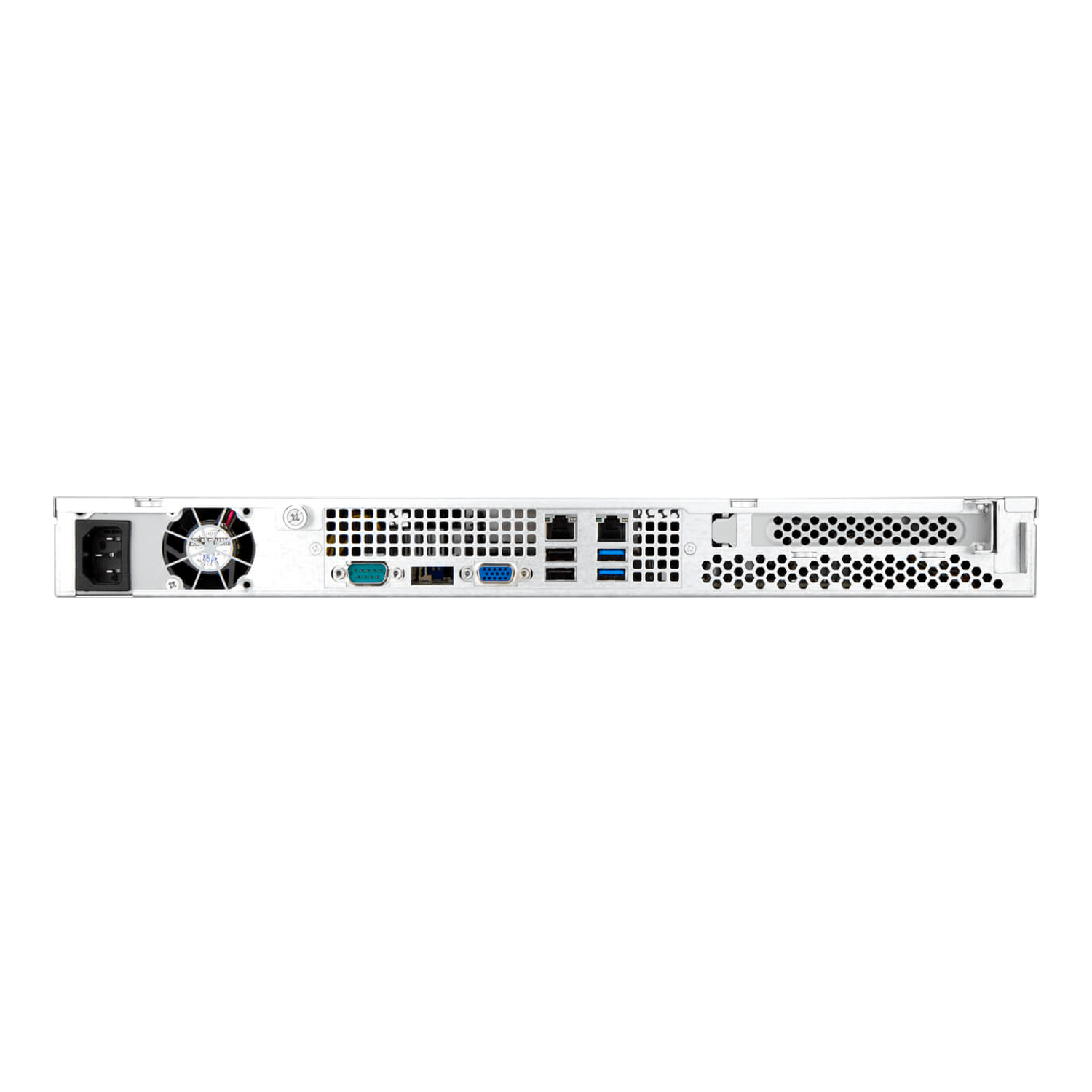

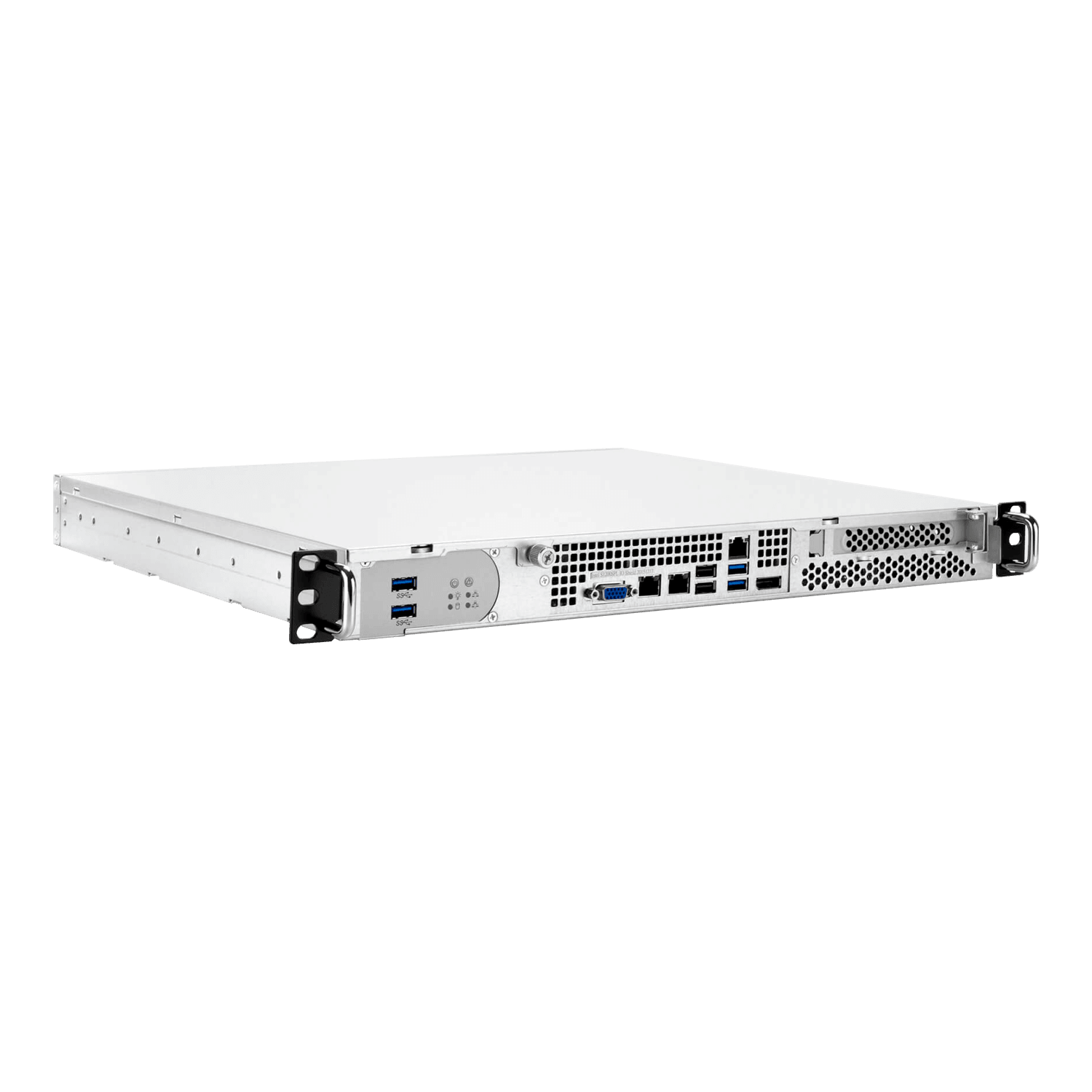

IW-RF100-S315, 2x 2.5 Internal Bays, 315W PSU, ATX, Silver, 1U Chassis - TAA Compliant
- SKU: 11128632
- Manufacturer: InWin
- MPN: IW-RF100-S315
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$185.19
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | Mini ITX (6.7" x 6.7"), ATX (12" x 10") |
| Drive Bay | • Internal: 2.5" x 2, 2.5" x 1 & 3.5" x 1 |
| Power Supply |
Supports: • Form factor: Flex • Watt: up to 265W or 315W |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Cooling Fans | Supports 40 x 28mm PWM fan x 3 (pre-installed x 2) |
| Expansion Slot | Full height PCIe slot x 1 (via riser card) |
| Material |
• Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 20" friction slide rail |
| Product Dimensions (DxWxH; Chassis Only) |
365.9 x 430 x 43.5mm (14.41" x 16.93" x 1.71") |
| Package Dimensions (DxWxH) | 560 x 500 x 135mm |
| Weight (Chassis Only) |
• Net weight: 3.4kg • Gross weight: 4.2kg |
| Cubic Feet | 1.33 |
| Container Information |
Single packing with pallets: • 20': 640pcs • 40': 1280pcs • 40' HQ: 1360pcs |
|
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications. * The above image is for reference only. All hardware components and optional parts are not included. |
|
