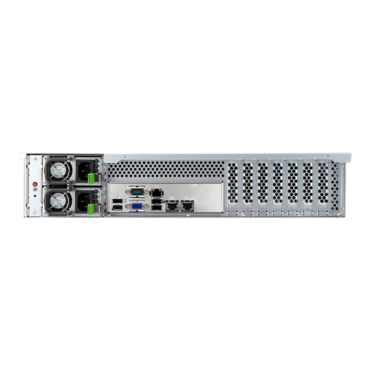

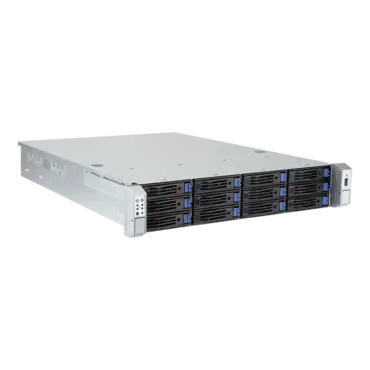

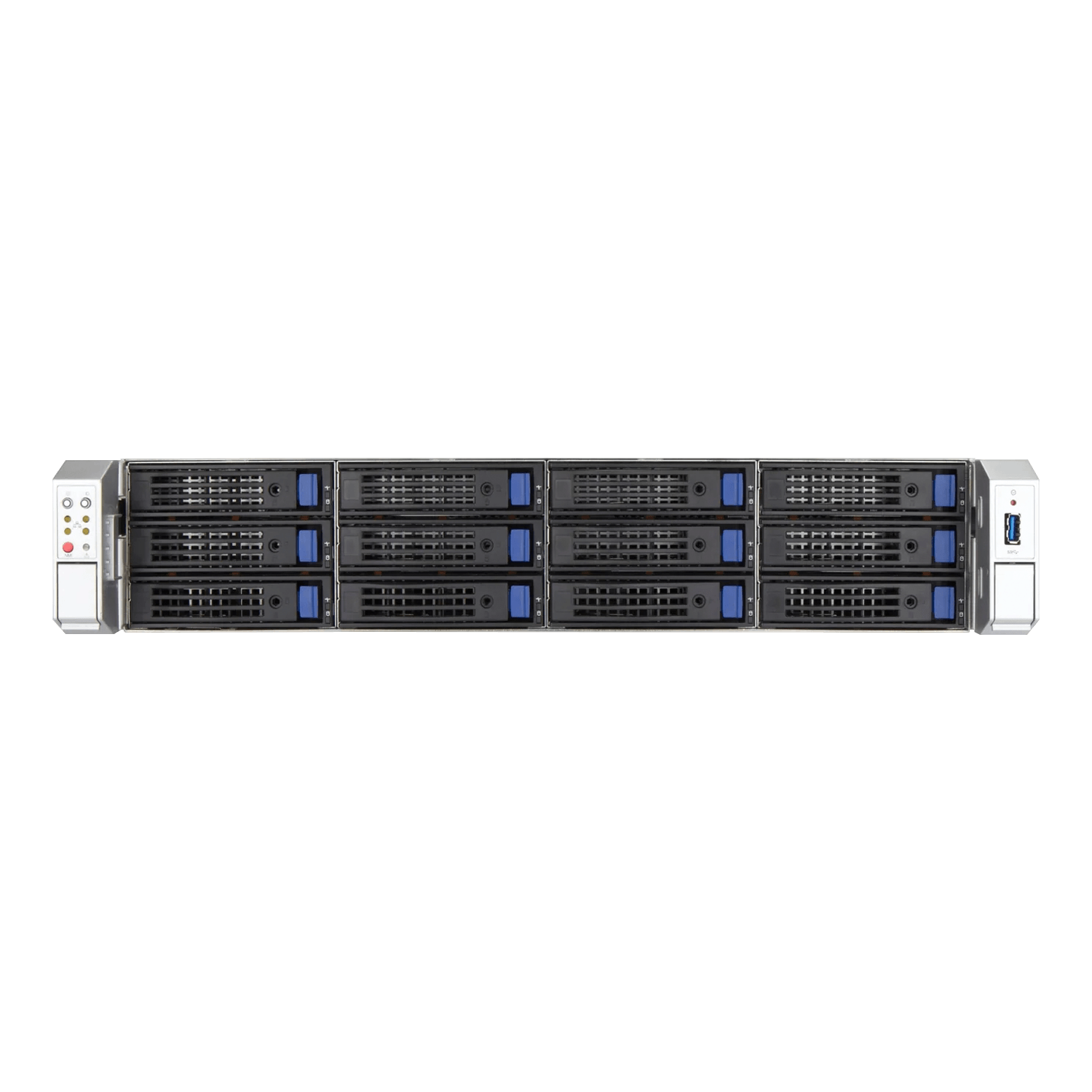

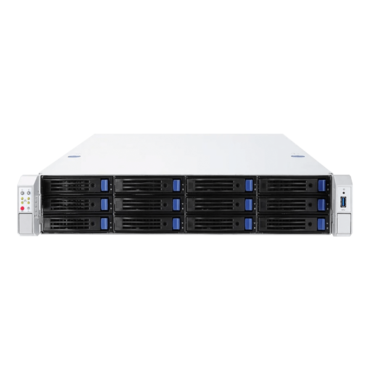

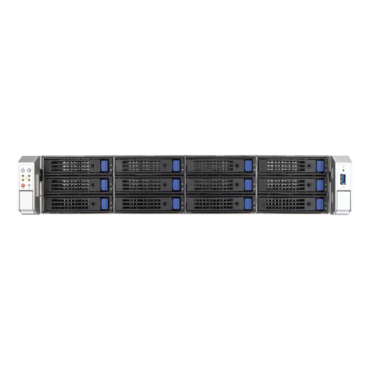

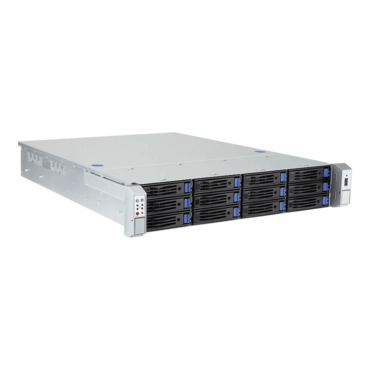

IW-RS212-02M-CR550.H, 12x 3.5"/2.5" External Bays, 2x 2.5" Internal Bays, 550W Rdt PSU, EEB, Black/Grey, 2U Chassis - TAA Compliant
Quantity:
- SKU: 13019854
- Manufacturer: InWin
- MPN: IW-RS212-02M-CR550.H
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$826.19
| M/B Form Factor | ATX (12" x 9.6"), ATX (12" x 10"), SSI EEB (12" x 13") |
| Drive Bay |
• External: Hot-Swap 3.5" x 12 or 2.5" x 12 • Internal: 2.5" HDD x 2 |
| Power Supply | • 550W 1+1 CRPS Redundant Power Supply (80+ Platinum) |
| Indicator | Power Status, HDD, LANs, System Fail Activity LEDs |
| Front Control Panel | Power Switch, ID Switch, System Reset, NMI, USB 3.0 x 1 |
| Backplane | • 12Gb/s Mini-SAS HD backplane supporting SAS 3.0 & SATA 3 drives |
| Cooling Fan | 80 x 38mm PWM hot-swap fan x 3 |
| Expansion Slot | Low Profile PCI Slot x 7 |
| Material |
• Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" Ball-bearing Slide Rail |
| Product Dimensions (DxWxH; Chassis Only) |
625 x 482.6 x 87mm (24" x 19" x 3.5") |
| Package Dimensions (DxWxH) | 796 x 577 x 217mm (31.34" x 22.72" x 8.54") |
| Weight (Chassis Only) |
• Net Weight: 28.44lbs • Gross Weight:33.95lbs |
| Cubic Feet | 3.52 |
| Container Information |
Single Packing with Pallets: • 20': 176pcs • 40': 384pcs • 40' HQ: 480pcs |
