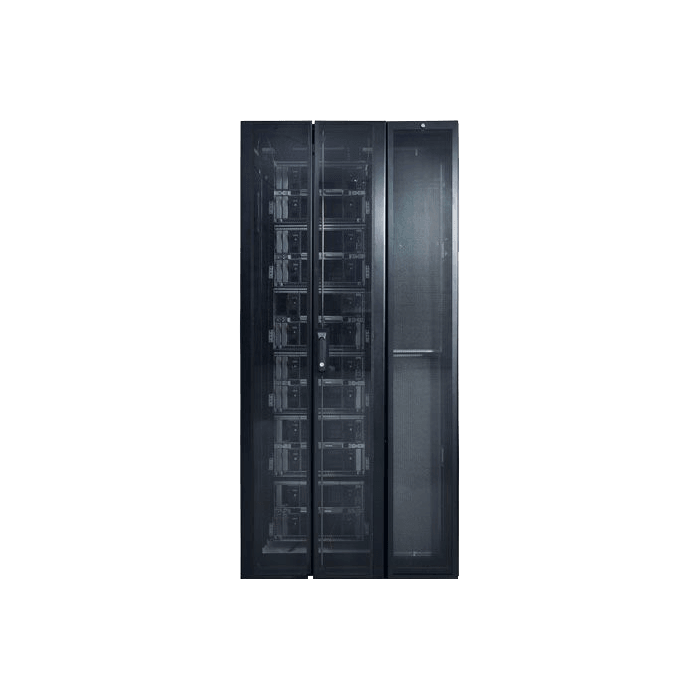

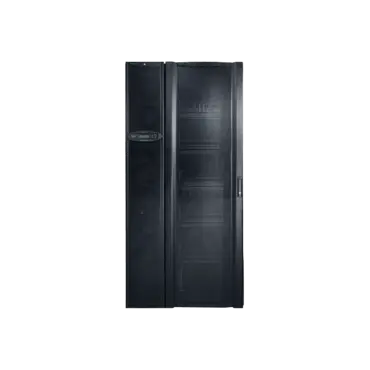

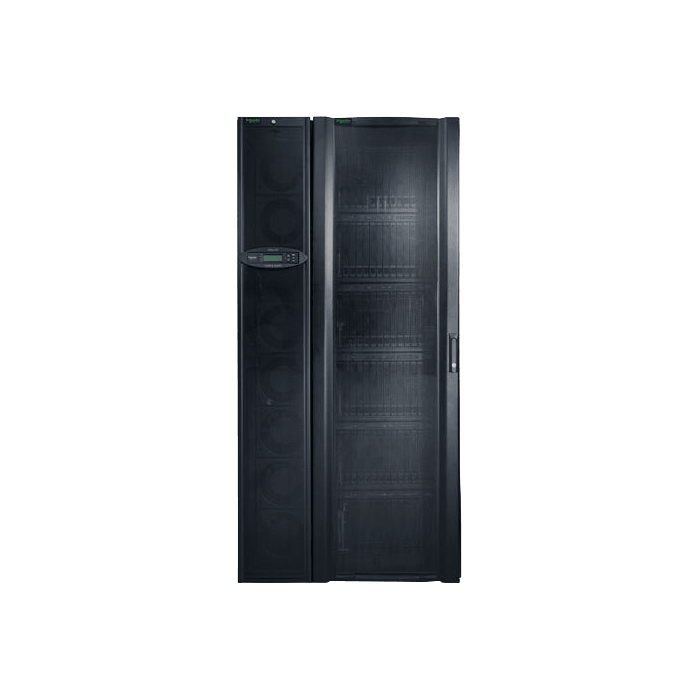

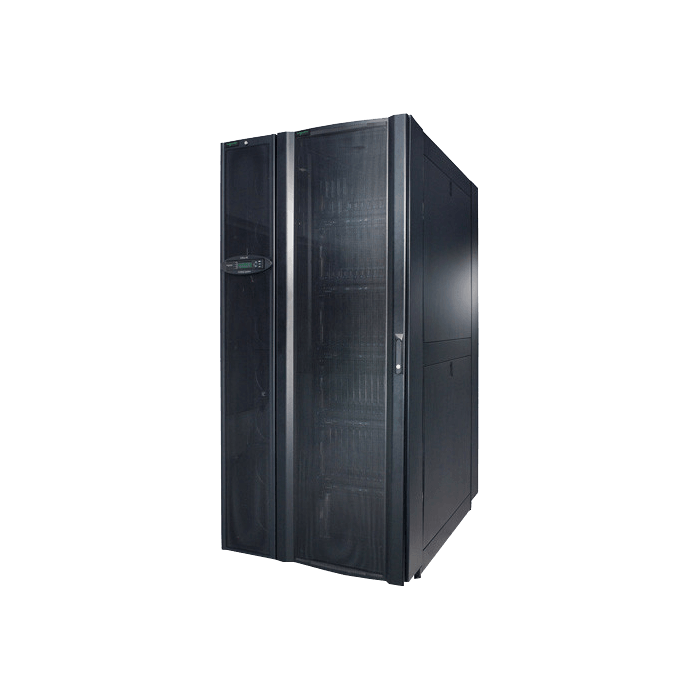

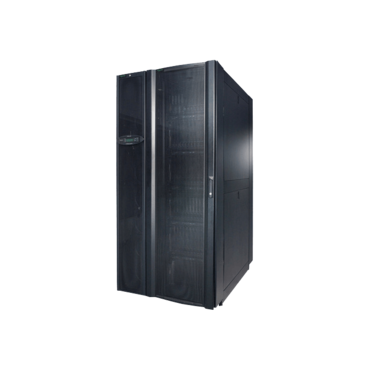

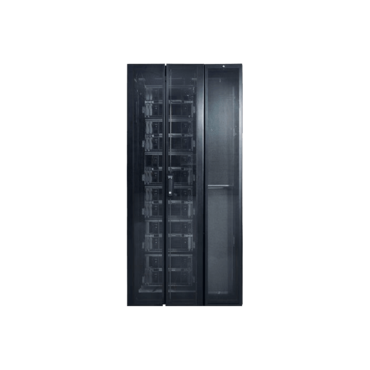

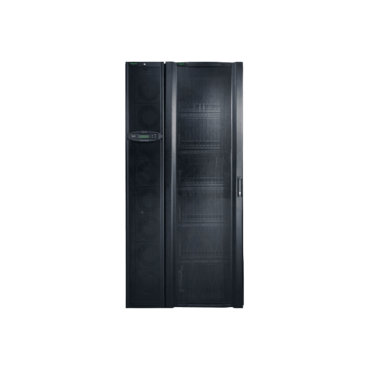

InRow SC System 1 InRow SC, 1 NetShelter SX Rack 600mm, and Rear Containment
InRow SC Systems offer flexible, easily deployable solutions for almost any environment. These fully contained systems offer intelligence that enables network manageability, as well as self-monitoring components that enable the highest level of availability. The row-based cooling architecture, along with containment of airflow, further increases the predictability, efficiency, and capacity of the system.
Rack integrated cooling system for environmentally controlled spaces
RACSC201 Features & Benefits
| Active response controls |
Monitors and actively adjusts cooling capacity to ensure proper server inlet temperatures. Through the microprocessor controller, visibility into the operation and health of the unit is provided. |
InRack Direct Expansion Features & Benefits
| Agility |
| Self-contained design |
The unit is quickly and easily installed without refrigerant lines or remote heat exchangers. The unit requires only power, condensate drain and an available return plenum to provide effective cooling. |
| Row-based architecture |
Captures hot exhaust air directly from the IT equipment, thereby increasing the unit's sensible cooling capacity over traditional cooling architectures. |
| Modular design |
Modular design provides scalable solutions to add cooling as demand increases. |
| Manageability |
| Real-Time Capacity Monitoring |
Real-time display of current and available cooling. |
| Network interface |
Provides management by connecting the device directly to the network with a dedicated IP address, avoiding the need for a proxy such as a server. Management is available via Web browser, Telnet or SSH. Notification features inform you of problems as they occur. |
| Building Management Integration |
Send alarms and data points to your building management system, allowing you to manage critical building infrastructure from a single system. |
| Availability |
| Ducted airflow |
Uses unconditioned air from plenum space to reject the heat rather than conditioned room air. |
| High Head Pressure Protection |
Ensures the InRow SC remains operational even when the condenser inlet air is restricted or very hot. |
| Coil freeze protection |
Hot gas bypass prevents evaporator coil from freezing during light load conditions. |
| Predictive failure notification |
Maximizes system availability by providing early warning of required fan or filter replacement. |
| Automatic restart |
Returns the unit to its last operating status in the event of a power failure. |
| Serviceability |
| Hot swappable fans |
Allows system to remain operational if a fan replacement is required. |
| Washable filters |
Easy to maintain, cleanable, deep loading mesh filter removes particles from the return air stream. |
| Easy service access |
In-row equipment allows for all serviceable components to be replaced/maintained in the hot or cold aisle. |
| Total Cost of Ownership |
| Variable speed fans |
Variable speed fans reduce energy consumption during off-peak cooling periods. |
| Green Refrigerant |
Environmentally friendly refrigerant that can offer LEED points. |
Specifications:
General
| Cooling Options |
Air-cooled Self-contained |
| Compressor Type |
Rotary |
| Air Discharge Patterns |
Horizontal |
| Intake Air |
Rear Return |
| Refrigerant |
R410A |
| Refrigerant Charge |
3 pounds |
| Air Flow |
1200 CFM |
| Condensate Pump Capacity |
1.30 gal/hour |
| Amp Draw Nominal |
16A |
| Amp Draw In-Rush |
56 |
Input
| Input Power |
2940 Watts |
| Input Frequency |
60 Hz |
| Rack Height |
42U |
| Input Connections |
NEMA L6-20P |
Communications & Management
| Control panel |
Multi-function LCD status and control console |
Physical
| Maximum Height |
78.40 inches (1991 mm) |
| Maximum Width |
35.43 inches (900 mm) |
| Maximum Depth |
50.13 inches (1273 mm) |
| Net Weight |
729.70 lbs. (331.68 kg) |
| Color |
Black |
Environmental
| Storage Temperature |
32 - 104 °F (0 - 40 °C) |
| Storage Relative Humidity |
0 - 95% |
| Storage Elevation |
0-15000 feet (0-4500 meters) |
| Audible noise at 1 meter from surface of unit |
80.00 dBA |
Conformance
| Standard Warranty |
1 year (parts only) |
Includes:
- 1 NetShelter SX 42U 600mm Wide x 1070mm Deep Enclosure
- 1 InRow SC 200-240V 60HZ
- 1 APC Rack Air Containment End Caps
- 1 APC Rack Air Containment Rear Assembly for InRow 300 mm
- 1 APC Rack Air Containment Rear Assembly for NetShelter SX 42U and InRow 600mm
- Installation guide
|
