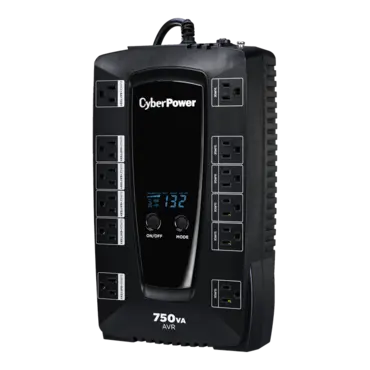

Intelligent LCD AVRG750LCD, 750 VA/450 W, Simulated Sine Wave, Tower UPS

Quantity:
  • SKU: 9758826
  • Manufacturer: CYBERPOWER SYSTEMS
  • MPN: AVRG750LCD
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$115.95
Quantity:
  • Capacity: 750 VA / 450 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 5%
  • Plug type & cord: NEMA 5-15P, 5 ft. cord
  • Outlets: 12 (6 surge, 6 surge + battery backup)
  • Data line protection: Telephone
  • Management software: PowerPanel® Personal
  • Warranty: 3 year
General
UPS Topology Line Interactive
Energy Saving GreenPower UPS™ Bypass
Input
Voltage Nominal 120 VAC
Input Voltage Range 90 – 148 VAC
Frequency 60 Hz ± 3 Hz
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset Right
Cord Length 5 ft
Output
VA 750 VA
Watts 450 W
Automatic Voltage Regulation Boost +10% / Buck -10%
On Battery Voltage 120 VAC ± 5%
On Battery Frequency 60 Hz ± 1%
On Battery Waveform Simulated Sine Wave
Outlets – Total 12
Outlets – Battery & Surge Protected 6
Outlets – Surge-Only Protected 6
Transfer Time 4 ms
Outlet Type NEMA 5-15R
Overload Protection Internal Circuitry Limiting

Circuit Breaker

Rated Power Factor 0.6
Battery
Runtime at Half Load 7.6 minutes
Runtime at Full Load 2.5 minutes
Battery Type Sealed Lead-Acid
Battery Size 12V/7Ah
Battery Quantity 1
Hot-Swappable No
User Replaceable Yes
Replacement Battery Cartridge RB1270B
Replacement Battery Cartridge Quantity 1
Typical Recharge Time 8 Hours
Surge Protection & Filtering
Surge Suppression 1,030 J
Phone RJ11 1-In, 2-Out
EMI/RFI Filtration Yes
Management & Communications
HID Compliant USB Port Yes
Cable Management USB Cable
LED Indicators Power On

Wiring Fault

Multifunction LCD Panel Voltage

Frequency

Runtime

% Load

% Battery

Online

Muted

Audible Alarms On Battery

Low Battery

Overload

Fault

Software PowerPanel® Personal
Physical
Form Factor Compact
Keyhole Mounting Slots Yes
Dimensions – W×H×D (in) 12.2 × 7 × 3.5
Weight (lbs) 12.4
Environmental
Operating Temperature 32° F – 104° F °F (0° C – 40° C °C)
Operating Humidity 0 – 90% (non-condensing)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Maximum Operating Elevation 6,562 ft (2,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Certifications
Safety UL1778 4th

cUL 107.3-05

FCC DOC Class B

Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
