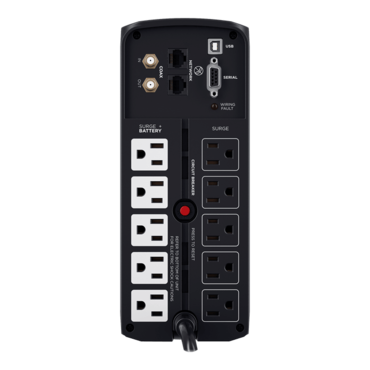

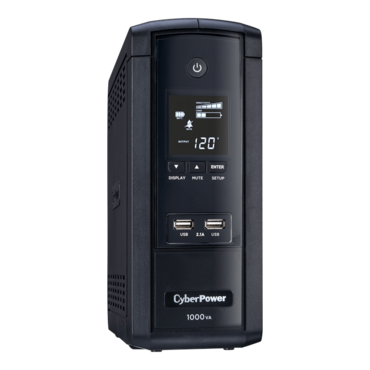

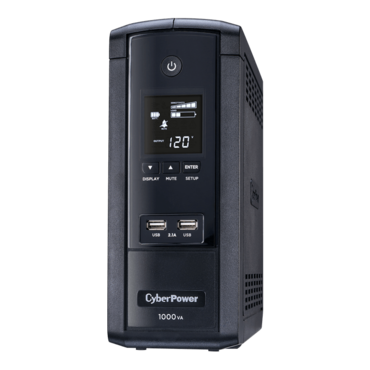

Intelligent LCD BRG1000AVRLCD, 1000 VA/600 W, Simulated Sine Wave, Tower UPS
- SKU: 8839840
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: BRG1000AVRLCD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$170.95
- Capacity: 1000 VA / 600 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlet types: 10 × NEMA 5-15R
- USB charge ports: 2 (2.1A shared)
- Communication: USB, Serial
- Data line protection: Ethernet, Coaxial
- Management software: PowerPanel® Personal
- ENERGY STAR® certified: Yes
- Warranty: 5 year
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 1 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | No |
| Replacement Battery Cartridge | RB1290 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 1 min |
| Runtime at Half Load | 9 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Cord Length | 6 ft (2 m) |
| Input Frequency Range | 57 – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 90 VAC – 148 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation |
Single Boost Single Buck |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15R |
| Outlets – Battery & Surge Protected | 5 |
| Outlets – Surge-Only Protected | 5 |
| Outlets – Total | 10 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port Amperage | 2.1 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| VA | 1000 VA |
| Watts | 600 W |
| Surge Protection & Filtering | |
| Coax Protection RG6 |
1 in 1 out |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
| Surge Suppression (Joules) | 1080 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators |
Power On Wiring Fault |
| Management Cable | USB Cable |
| Serial Port | 1 Serial |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Mini-Tower |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 9.91 x 24.64 x 25.91 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.9 x 9.7 x 10.2 (in) |
| Physical Dimensions – (WxHxD) (mm) | 99 x 246 x 259 (mm) |
| Weight (kg) | 6.8 |
| Weight (lb) | 15 |
| Dimensions – Shipping | |
| Shipping Dimensions – (WxHxD) (cm) | 17.15 x 32.39 x 35.56 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 6.75 x 12.75 x 14.0 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 171.45 x 323.85 x 355.6 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 cUL 107 FCC DOC Class B |
| Warranty | |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U1B |
| Product Warranty | 5 Years Limited Warranty |
