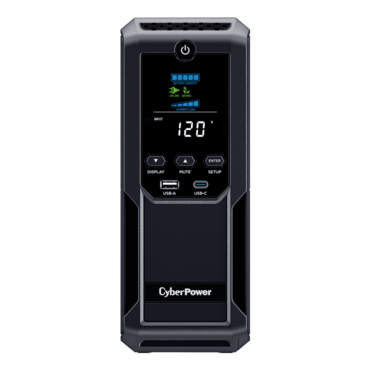

Intelligent LCD BRG1500AVRLCD2, 1500 VA/900 W, Simulated Sine Wave, Tower UPS
Quantity:
- SKU: 15194354
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: BRG1500AVRLCD2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$219.95
| General | |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Replacement Battery Cartridge | RB1290X2E |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 12 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
| Output | |
| Automatic Voltage Regulation |
Single Boost Single Buck |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 12 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 6 |
| Outlets – Surge-Only Protected | 6 |
| Outlets – Total | 12 |
| Output Power Factor | 0.6 |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port Type |
1 Type A 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| USB Charge Port Watts | 20 Watts |
| VA | 1500 VA |
| Watts | 900 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
| Surge Suppression (Joules) | 1500 J |
| Management & Communications | |
| Audible Alarms |
Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators |
Power On Wiring Fault |
| Management Cable | USB Cable |
| Physical | |
| Color | Black |
| Form Factor | Mini-Tower |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 10.01 x 25.91 x 35.0 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.94 x 10.2 x 13.78 (in) |
| Physical Dimensions – (WxHxD) (mm) | 100 x 259 x 350 (mm) |
| Physical Weight (kg) | 10.8 |
| Physical Weight (lb) | 23.8 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 11.5 |
| Shipping – Weight (lb) | 25.35 |
| Shipping Dimensions – (WxHxD) (cm) | 19.0 x 36.8 x 45.01 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 7.48 x 14.49 x 17.72 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 189.99 x 368.05 x 450.09 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety |
UL1778 cUL 107 5th FCC DOC Class B |
| Warranty | |
| CEG Amount | $500000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 5 Year Limited Warranty |
