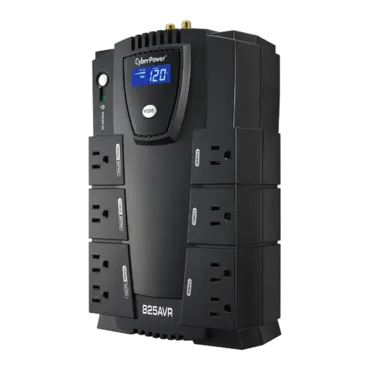

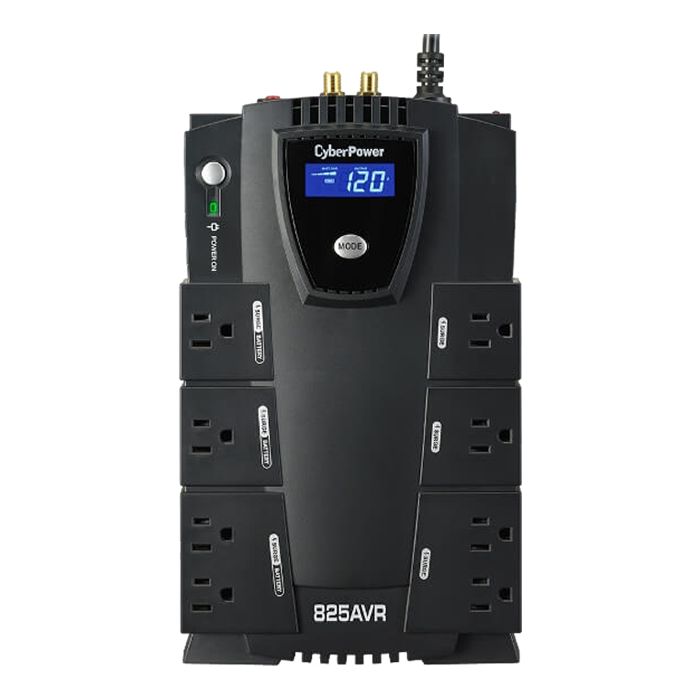

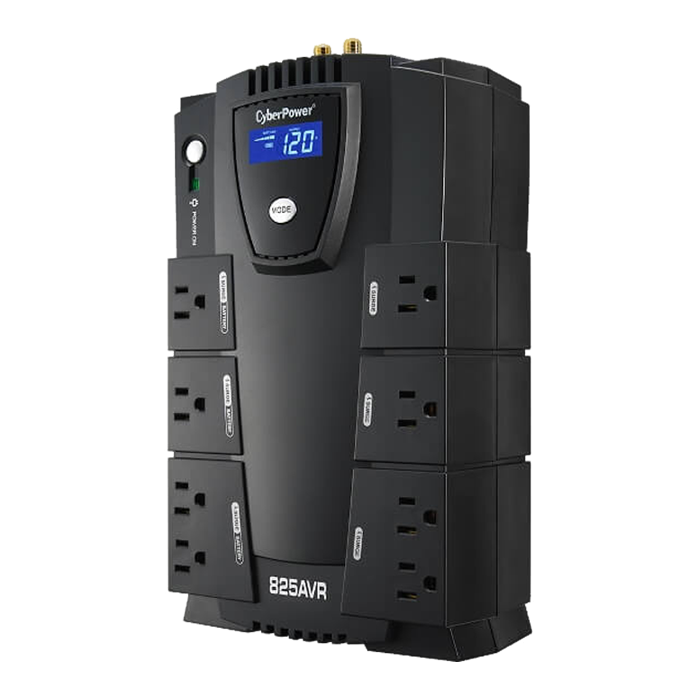

Intelligent LCD CP825AVRLCD, 825 VA/450 W, Simulated Sine Wave, Tower UPS
- SKU: 1609691
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: CP825AVRLCD
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
The CyberPower Intelligent LCD CP825AVRLCD uninterruptible power supply (UPS) for mid to high-end computer systems, features dynamic line conditioning to guard against surges/spikes and offers battery backup in the event of brownouts or blackouts.This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

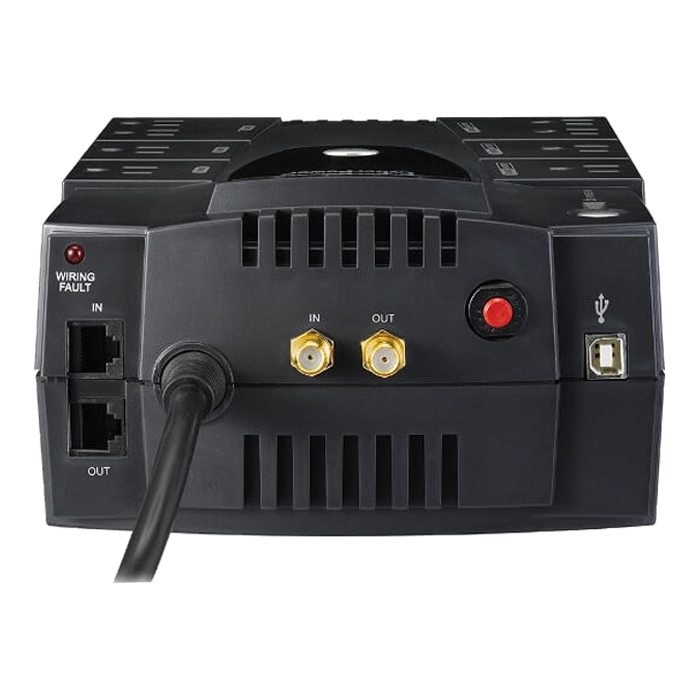

The CP825AVRLCD unit has a capacity of 825VA/450 Watts, eight (8) NEMA 5-15R receptacles, including four (4) fail-safe outlets for critical loads. The intelligent multifunction LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB port, as well as protection for phone/network (RJ11/RJ45) and cable/coax (RG-6). It has one (1) maintenance-free, user-replaceable 12V/9Ah battery and includes EMI/RFI filters to increase the immunity of the load to disturbances and surges. PowerPanel® Personal Edition UPS Management software automatically closes computer files and safely shuts down the system in case of a power outage.
| General | |
|---|---|
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Qualified | Yes |
| Input | |
| Voltage | 90Vac - 140Vac |
| Frequency | 60Hz ± 3Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle |
| Cord Length | 6' |
| Output | |
| VA | 825 |
| Watts | 450 |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Frequency | 60Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlets - Total | 8 |
| Outlet Type | NEMA 5-15R |
| Outlets - Battery & Surge Protected | 4 |
| Outlets - Surge-Only Protected | 4 |
| Outlets - Widely Spaced | 4 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer Time | 4ms |
| Battery | |
| Runtime at Half Load (min) | 8 |
| Runtime at Full Load (min) | 2 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9AH |
| Hot-Swappable | Yes |
| Replacement Battery | RB1280A |
| Battery Quantity | 1 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 Joules |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| Multifunction LCD Panel | Displays: Current/Load Level, Runtime, Battery Level, Input Voltage, Output Voltage, Battery In Use, Overload, Silent Mode, Normal Mode |
| HID Compliant USB Port | Yes |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | On Battery, Low Battery, Overload |
| Software | PowerPanel® Personal Edition |
| Physical | |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Dimensions (WxHxD) (in.) | 11 x 6.5 x 3.5 |
| Weight (lbs.) | 14.0 |
| Environmental | |
| Operating Temperature | 32°F to 95°F / 0°C to 35°C |
| Operating Relative Humidity | 0% - 95% non-condensing |
| Storage Temperature | 5°F to 113°F / -15°C to 45°C |
| Maximum Operating Elevation | 10,000 ft / 3,000 m |
| Maximum Storage Elevation | 50,000 ft / 15,000 m |
| Certifications | |
| Safety | UL1778, cUL 107.1, FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
