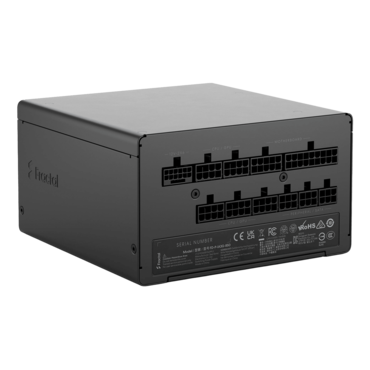

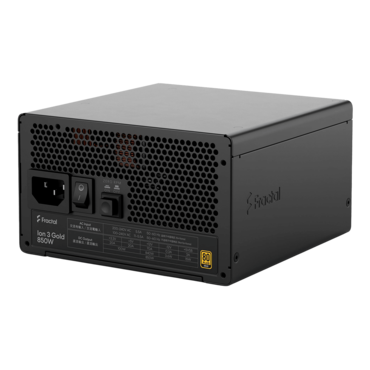

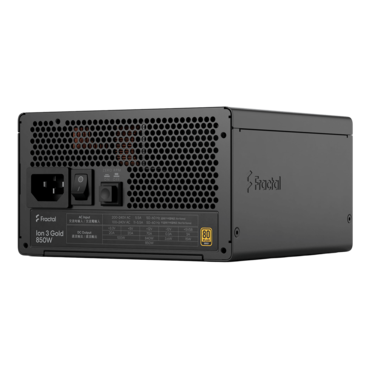

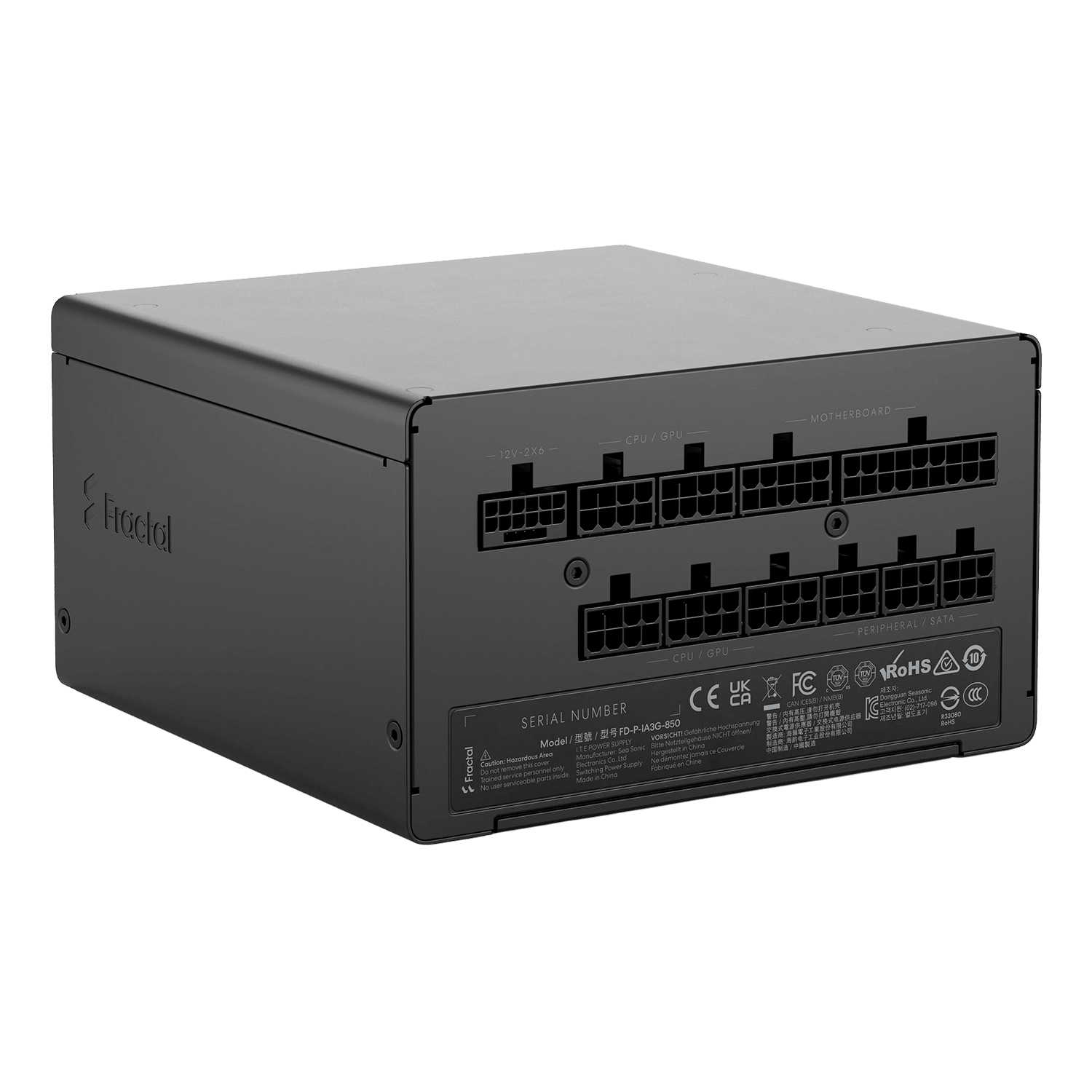

Ion 3, 80 PLUS Gold 850W, Fully Modular, ATX Power Supply
- SKU: 19713036
- Manufacturer: Fractal Design
- MPN: FD-P-IA3G-850
- Availability: TEMPORARILY OUT OF STOCK
Price
$157.65
| Specifications | |
| Wattage | 850W |
| PSU specification compliance | PSU specification compliance ATX12V 3.1 |
| Efficiency Certification | 80PLUS® Gold |
| Modular cables | Fully modular |

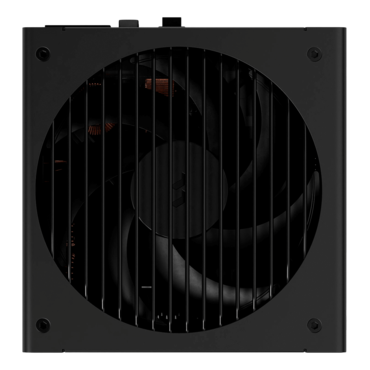

| Fan type | Momentum 14 series fan, with Fluid Dynamic Bearing |
| Semi-passive operation | Yes, user selectable (Zero RPM mode) |
| DC cable type | UltraFlex, flat cables |
| Cable Color | Black PSU: Black, White PSU: White |
| Electrolytic capacitors | 105°C Japanese capacitors |
| Number of 12V rails | Single 12V rail |
| Protection features | Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP) |
| Life expectancy (MTBF) | 100 000 h (25°C ambient temperature) |
| Modern sleep state compatibility | C6 and C7 compatible |
| Power factor correction (PFC) | Yes, active |
| Input voltage | 100-240 V |
| Standby efficiency | ≥ 45% ErP Lot 6 compliant |
| Maximum operating temperature | 40°C (full load), 50°C (80% load) |
| Approvals & certifications | CE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC |
| Warranty | 10 years |

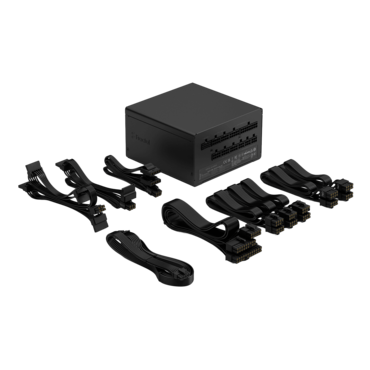

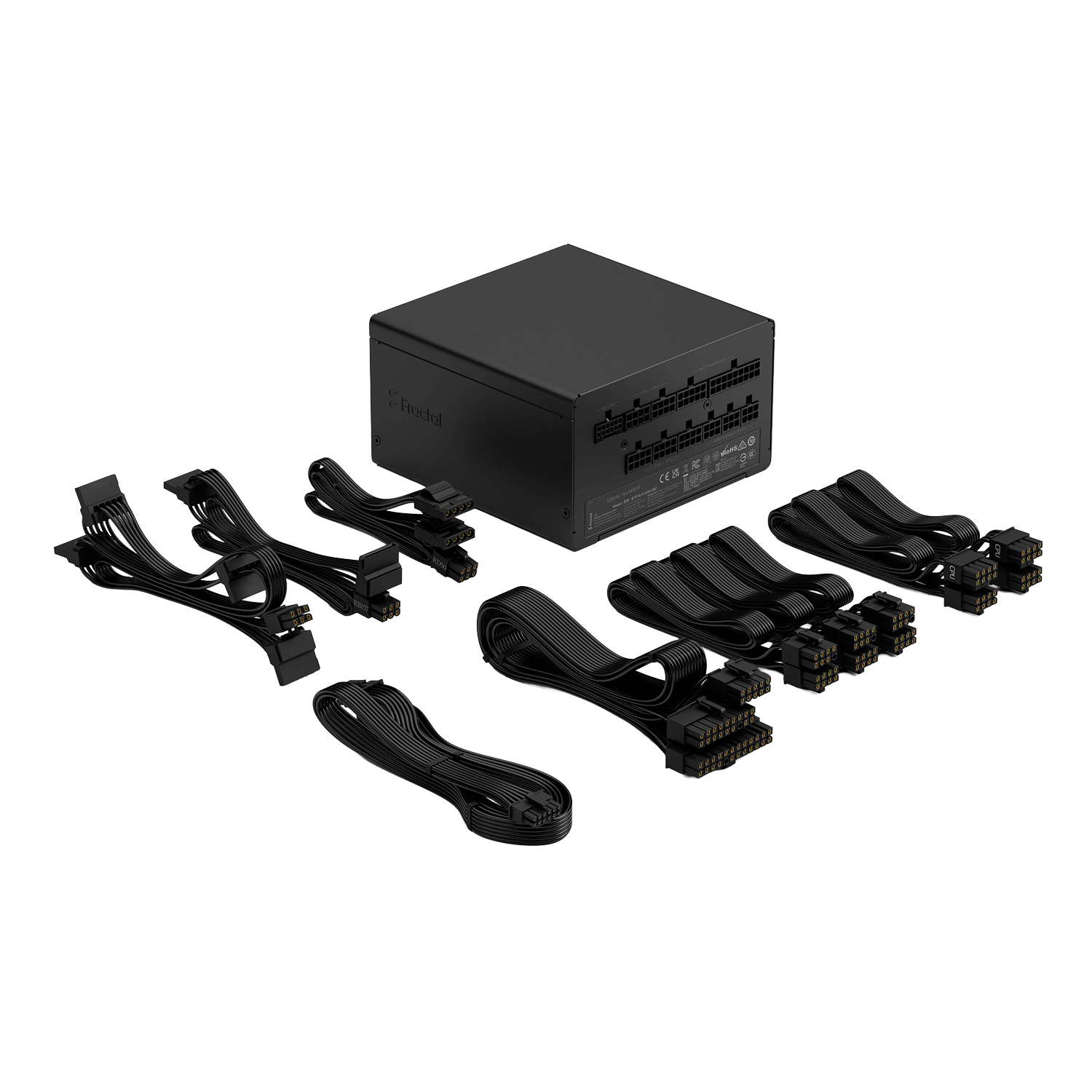

| Included modular cables | |
| ATX 24 pin, 600 mm | 1 |
| ATX 12V 4+4P, 700 mm | 2 |
| PCI-E 6+2 pin, 650 mm | 3 |
| PCI-E Gen5 12V-2x6, 700 mm | 1 |
| 4x SATA, 400+150+150+150 mm | 1 |
| 2x SATA 650+150 mm | 1 |
| Total number of SATA connectors | 6 |
| 2x Peripheral (Molex) 650+150 mm | 1 |
| Total number of Molex connectors | 2 |
| Other | |
| Package contents | Ion 3 Gold power supply unit, Modular cables, Accessory kit, User manual, Power cord (regional) |
| Unit dimensions (LxWxH) | 150 x 150 x 86 mm |
| Net weight (unit only) | 1.8 kg |
| Package dimensions (LxWxH) | 354 x 189 x 122 mm |
| Package weight | 3.2 kg |
| EAN | 7340172710264 |
| UPC | 843276110260 |
| Product code | FD-P-IA3G-850 |
