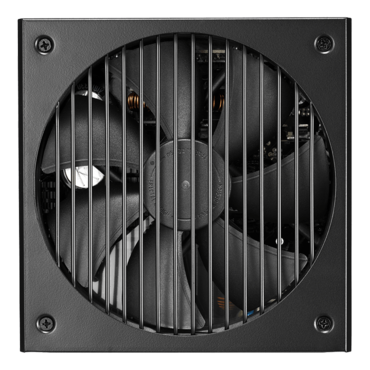

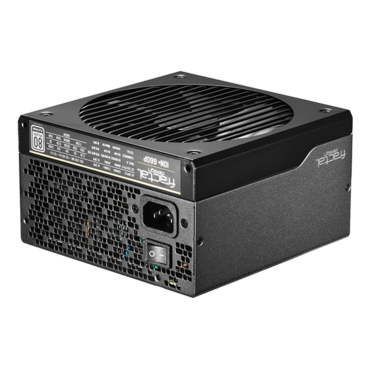

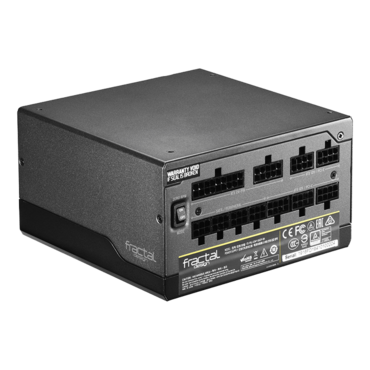

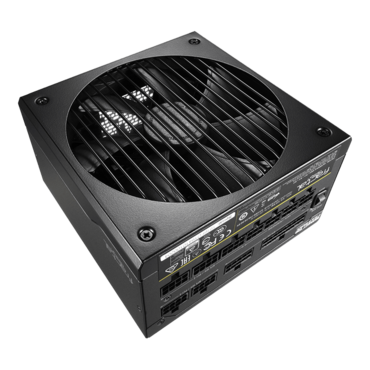

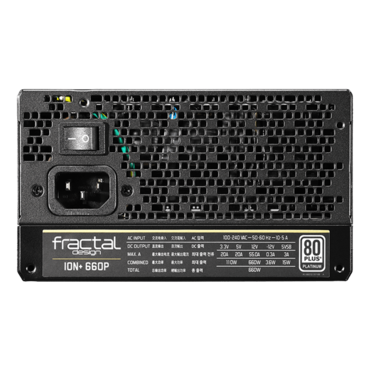

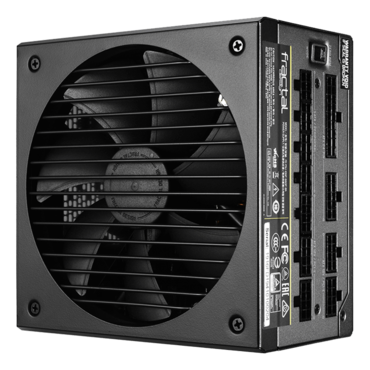

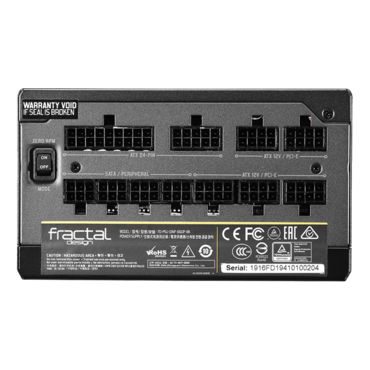

Ion+ 660P, 80 PLUS Platinum 660W, Fully Modular, ATX Power Supply
- SKU: 12923649
- Manufacturer: Fractal Design
- MPN: FD-PSU-IONP-660P-BK-US
- Availability: CONTACT US
Price
$131.26
Ion+ 660P, 80 PLUS Platinum 660W, Fully Modular, ATX Power Supply
The Ion+ Platinum 660W is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.br/>A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and the custom-tailored 140mm fan with FDB bearings barely breaks a whisper under heavy use. Revolutionary UltraFlex cable with its ultra-high strand count wire and special insulation bends and twists effortlessly to make installation and cable-routing a breeze.
Ion+ is available now in 660 watt capacities, all with 80PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for your peace of mind.
The Ion+ Platinum 660W is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.br/>A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and the custom-tailored 140mm fan with FDB bearings barely breaks a whisper under heavy use. Revolutionary UltraFlex cable with its ultra-high strand count wire and special insulation bends and twists effortlessly to make installation and cable-routing a breeze.
Ion+ is available now in 660 watt capacities, all with 80PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for your peace of mind.
| 80PLUS® Certification | Platinum |
| Modular cables | Fully modular |
| Fan type | Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature (full load) | 50° C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Capacitors | Japanese |
| Life expectancy (MTBF) at max output load | 100,000 hours |
| PSU form factor | ATX 12V / EPS 12V |
| Cable type | Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire |
| PSU Color | Black/Gunmetal |
| Cable Color | Black |
| Protection features | Over voltage protection Under voltage protection Over power protection Short circuit protection Over current protection Over temperature protection |
| Input voltage | 100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Sleep State Compliance | C6/C7 |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Unit dimensions (LxWxH) | 150 x 150 x 86 mm |
| Net weight (unit only) | 1.61 kg |
| Number of 12V rails | 1 |
| Package dimensions (LxWxH) | 325 x 110 x 210 mm |
| Package weight | 2.65 kg |
| Warranty | 10 Years |
| Connectors | Ion+ 660P |
| ATX | 1 |
| EPS | 1 |
| PCIe | 4 |
| SATA | 10 |
| Peripheral | 4 |
| Cable Configuration (length in mm between connectors) | Ion+ 660P |
| ATX 24-pin | 600 |
| ATX 12V 4+4 pin | 700 |
| EPS12V 8-pin | N/A |
| PCIe 6+2 pin | 550+120 |
| SATA | 400+120+120+120 |
| 650+120 | |
| Peripheral | 400+120+120+120 |
| DC Output | Ion+ 660P |
| 3.3V | 20A |
| 5V | 20A |
| 3.3V and 5V combined | 110W |
| 12V | 55.0A |
| -12V | 0.3A |
| +5Vsb | 3A |
| Total Power | 660W |
| DC Voltage Regulation | +3.3V | +5V | +12V |
| Fractal Design Ion+, typical value | <0.25% | <0.25% | <0.35% |
| ATX Specifications, maximum value | <5% | <5% | <5% |
| Ripple and Noise | +3.3V | +5V | +12V |
| Fractal Design Ion+, typical value | <15mV | <15mV | <15mV |
| ATX Specifications, maximum value | <50mV | <50mV | <120mV |
| Package contents |
|---|
|
Ion+ PSU with protective bag |
|
Modular cables in a convenient storage bag |
|
Screw pack with Velcro cable ties |
|
AC power cord (localized) |
|
User manual |
