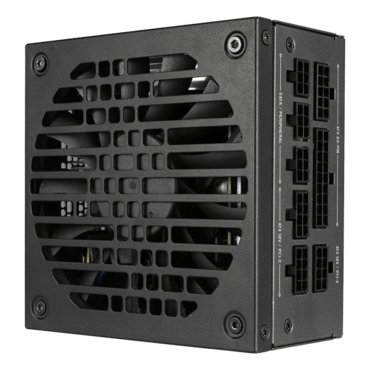

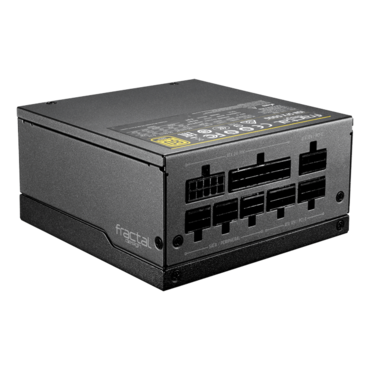

Ion SFX-L, 80 PLUS Gold 500W, Fully Modular, SFX-L Power Supply
- SKU: 13119948
- Manufacturer: Fractal Design
- MPN: FD-PSU-ION-SFX-500G-BK
- Availability: CONTACT US
Price
$107.69
Ion SFX-L, 80 PLUS Gold 500W, Fully Modular, SFX-L Power Supply
Fractal Design Ion SFX-L (FD-PSU-ION-SFX-500G-BK). Keeping it down. You'll rarely hear a sound from the Ion SFX-L Gold, mainly due to a semi-passive mode that only activates the fan when it's really necessary. Even then, the true FDB bearings will make sure it remains very discrete.
- UltraFlex DC wires for effortless cable-routing and connections
- Large 120 mm fan with true long-life FDB
- 80 PLUS® Gold Certified for efficient energy and reduced heat generation
| Specifications | |
| 80PLUS® Certification | Gold |
| Modular cables | Fully modular |
| Fan type | Slim (15 mm) FDB bearing 120 mm fan |
| Maximum operating temperature (full load) | 40°C - Maximum 80% load at 50°C |
| Semi-passive operation | Yes (Zero RPM) |
| Capacitors | 105°C Japanese Polymer |
| Life expectancy (MTBF) at max output load | 100,000 hours |
| PSU form factor | SFX-L |
| Cable type | Modular 24-pin: Braided sleeve UltraFlex™ wire - Others: Flat UltraFlex™ wire |
| PSU Color | Black/Gunmetal |
| Cable Color | Black |
| Protection features | Over voltage protection - Under voltage protection - Over power protection - Short circuit protection - Over current protection - Over temperature protection |
| Input voltage | 100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 6A/3A (500G) |
| Number of 12V rails | 1 |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Sleep State Compliance | C6/C7 |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Warranty | 10 Years |
| Connectors | |
| ATX | 1 |
| EPS/ATX12V | 1 |
| PCIe | 2 |
| SATA | 4 |
| Peripheral | 2 |
| Cable Configuration (length in mm between connectors) | |
| ATX 24-pin | 350 |
| EPS/ATX12V 4+4 pin | 400 |
| PCIe 6+2 pin | 400+100 |
| SATA | 300+200+200+100 |
| Peripheral | 300+200 |
| DC Output | |
| 3.3V | 20A |
| 5V | 20A |
| 3.3V and 5V combined | 100W |
| 12V | 41A |
| -12V | 0.3A |
| +5Vsb | 3A |
| Total Power | 500W |
| Other | |
| Package contents | • Ion SFX-L PSU with protective bag • Modular cables in a convenient storage bag • Screw pack with Velcro cable ties • SFX-to-ATX bracket • AC power cord (localized) • User manual |
| Unit dimensions (LxWxH) | 125 x 125 x 63.5 mm |
| Net weight (unit only) | 1.11 kg |
| Package dimensions (LxWxH) | 260 x 170 x 95 mm |
| Package weight | 1.91 kg |
| EAN | 7340172702016 |
| UPC | 843276102012 |
| Product code | FD-PSU-ION-SFX-500G-BK |
| Downloads | |
| Product Sheet | Manual |
