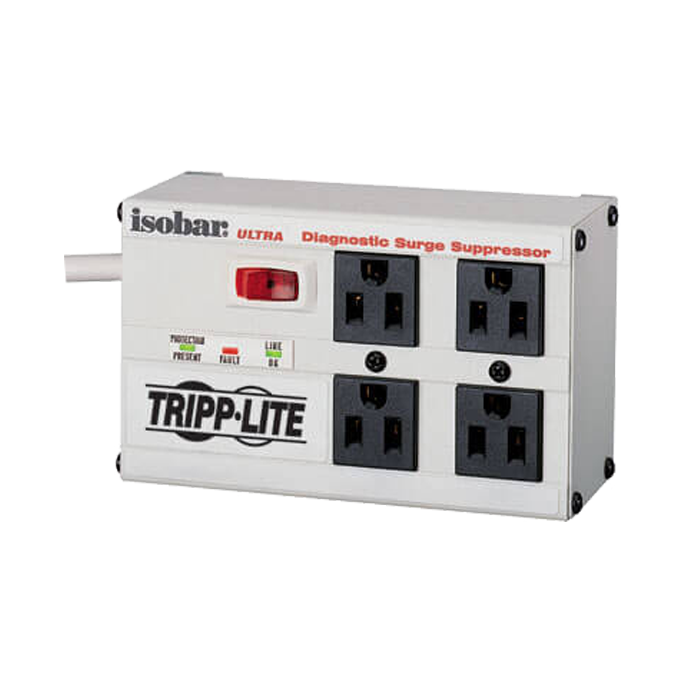

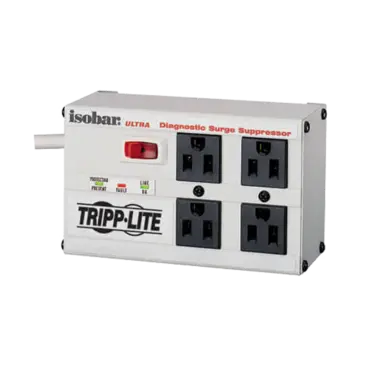

For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive computer, networking and telecom equipment. With more than 18 million satisfied customers, the Isobar remains the world's number one selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR4ULTRA offers 4 outlets arranged in two filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3330 joules/85,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 2 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 6 foot AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of 4 child safety covers.
- Tripp Lite's ISOBAR is the world's number one selling premium suppressor series with more than 18 million satisfied customers and a safety-tested history of 20+ years
- 4 outlets arranged in two filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on.
- Network grade surge suppression rated at 3330 joules/97,000 amps
- Widely spaced outlets accommodate up to 2 large transformer plugs without blocking outlets
- 3 LED indicators confirm suppressor operation and site wiring status, plus warning of suppressor or electrical fault conditions
- Keyhole mounting tabs allow permanent installation
- Set of 4 outlet covers safely seal off unused outlets
- 120VAC, 50/60Hz electrical compatibility
- $50,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
Output | |
Frequency Compatibility | 50 / 60 Hz |
Output Receptacles | (4) 5-15R |
Output (Watts) | 1440 |
Circuit Breaker (amps) | 12 |
Transformer Accommodation | Supports up to 2 large transformer plug accessories without covering remaining outlets |
Input | |
Nominal Input Voltage(s) Supported | 120V AC |
Recommended Electrical Service | 120V (110-125V) |
Input Connection Type | NEMA 5-15P input plug |
Input Plug Features | Space-saving right angle plug |
Input Cord Length (ft.) | 6 |
Voltage Compatibility (VAC) | 120 |
Maximum Surge Amps | 135000 |
Physical | |
Shipping Dimensions (hwd / in.) | 11.5 x 7 x 3 |
Shipping Weight (lbs.) | 2.9 |
Unit Dimensions (hwd / in.) | 2.5 x 6 x 3.5 |
Unit Weight (lbs.) | 2.4 |
Material of Construction | Metal |
Integrated Keyhole Mounting Tabs | Metal end caps are fitted with keyhole mounting tabs for wallmount installation |
Housing Color | Light Gray |
Receptacle Color | Black |
Color (AC Line Cord) | White |
Outlets Measurement (Center to Center) | Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm |
Keyhole Slot Mounting Measurement (Center to Center) | Distance between horizontal tabs = 131.90mm; Distance between vertical tabs = 58.17mm |
