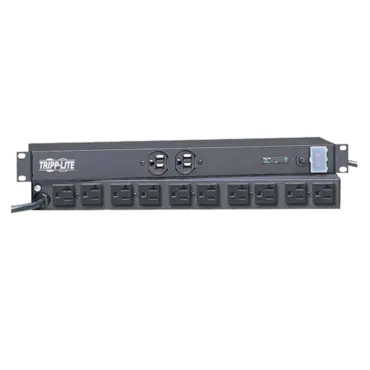

Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. $25,000 ultimate lifetime Insurance (USA and Canada Only) coverage.
- 12 outlets (2 front mounted 15 amp/10 rear mounted 20 amp)
- 15 foot AC cord with NEMA5-20P straight-in plug connection
- Diagnostic LEDs confirm AC Present (green), Line Fault (red) and Protected (green)
- Lighted power switch confirms power on/off status
- Snap-in switch guard prevents accidental turn off
- 20 amp capacity with circuit breaker
- 120V AC, 50/60Hz electrical compatibility
- $25,000 Ultimate Lifetime Insurance (USA and Canada Only)
Output | |
Frequency Compatibility | 50 / 60 Hz |
Output Receptacles | (12) 5-15R |
Output (Watts) | 2400 |
Circuit Breaker (amps) | 20 |
Input | |
Nominal Input Voltage(s) Supported | 120V AC |
Recommended Electrical Service | 120V (110-125V) |
Input Connection Type | NEMA 5-20P input plug |
Input Plug Features | Space-saving right angle input plug |
Input Cord Length (ft.) | 15 |
Voltage Compatibility (VAC) | 120 |
Maximum Surge Amps | 150000 |
Physical | |
Shipping Dimensions (hwd / in.) | 2.25 x 20.5 x 9.25 |
Shipping Weight (lbs.) | 6.3 |
Unit Dimensions (hwd / in.) | 1.75 x 17.5 x 4 |
Unit Weight (lbs.) | 6.3 |
Material of Construction | Metal |
Included Mounting Accessories | Included mounting flanges are pre-installated for 1U rackmount installation and can be re-configured to support a variety of mounting options |
Housing Color | Black |
Receptacle Color | Black |
Color (AC Line Cord) | Black |
Form Factors Supported | 1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options |
Outlets Measurement (Center to Center) | Distance between front outlets = 38.9mm; Distance between rear outlets = 40.65mm |
