Isobar Rack-Mount Surge Protector, 1U Rack, 12x / NEMA 5-15R, 3840 Joules, Extra-long 15-ft cord, 120V AC, Black
Quantity:
- SKU: 39092
- Manufacturer: TRIPP LITE
- MPN: ISOBAR12ULTRA
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$149.75
Isobar Rack-Mount Surge Protector, 1U Rack, 12x / NEMA 5-15R, 3840 Joules, Extra-long 15-ft cord, 120V AC, Black

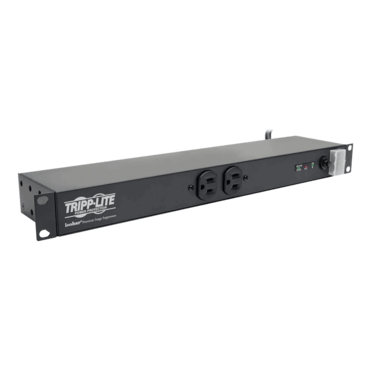

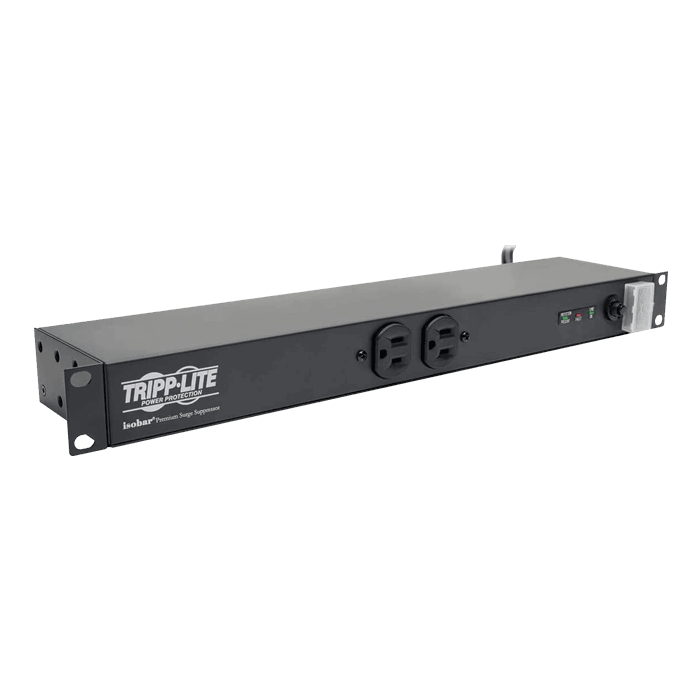

Tripp Lite's ISOBAR12ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rack mount, wall mount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features the highest level of AC surge and EMI/RFI noise suppression of all Tripp Lite rackmount surge protectors. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. $25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) coverage .
Tripp Lite's ISOBAR12ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rack mount, wall mount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features the highest level of AC surge and EMI/RFI noise suppression of all Tripp Lite rackmount surge protectors. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. $25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) coverage .

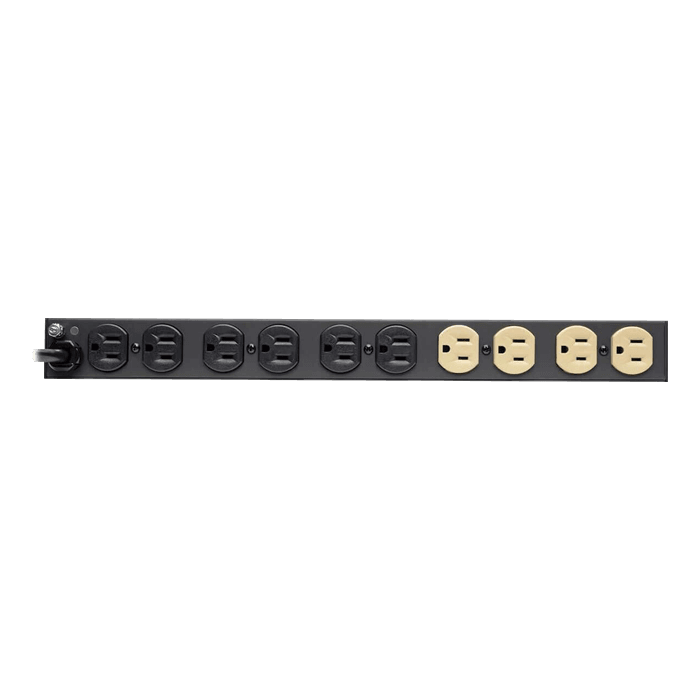

- 12 outlets (2 front, 10 rear)
- Extra-long 15-ft cord
- 3840 joule rating—more joules mean more protection!
- All-metal housing with diagnostic LEDs
- Isolated filter banks remove damaging line noise
- Switch safety cover prevents accidental shutoff
| Output | |
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (12) 5-15R |
| Output (Watts) | 1800 |
| Circuit Breaker (amps) | 15 |
| Input | |
| Nominal Input Voltage(s) Supported | 120V AC |
| Recommended Electrical Service | 120V (110-125V) |
| Input Connection Type | NEMA 5-15P input plug |
| Input Cord Length (ft.) | 15 |
| Voltage Compatibility (VAC) | 120 |
| Maximum Surge Amps | 150000 |
| Physical | |
| Shipping Dimensions (hwd / in.) | 2.25 x 20.5 x 9.25 |
| Shipping Weight (lbs.) | 5.7 |
| Unit Dimensions (hwd / in.) | 1.75 x 17.5 x 4 |
| Unit Weight (lbs.) | 4.6 |
| Material of Construction | Metal |
| Included Mounting Accessories | Included mounting flanges are pre-installed for 1U rackmount installation and can be re-configured to support a variety of mounting options |
| Housing Color | Black |
| Receptacle Color | Black |
| Color (AC Line Cord) | Black |
| Form Factors Supported | 1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options |
| Outlets Measurement (Center to Center) | Distance between front outlets = 38.9mm; Distance between rear outlets = 38.9mm |
