J21, 27.2mm Height, 300W TDP, Copper/Aluminum CPU Cooler
- SKU: 20085437
- Manufacturer: DYNATRON
- MPN: J21
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

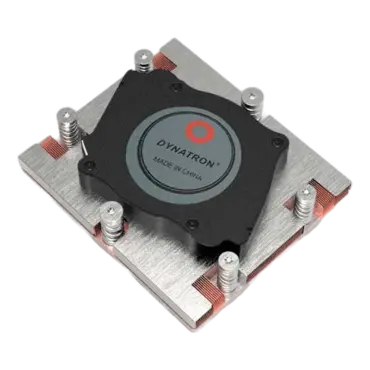

J21, 27.2mm Height, 300W TDP, Copper/Aluminum CPU Cooler
The Dynatron J21 CPU cooler is designed for 1U
The Dynatron J21 CPU cooler is designed for 1U
| CPU Support | AMD® |
| CPU Socket | SP7 |
| Screw Type | M3.5/M4 |
| Installation Torque | 12.5–15.0 kg-cm (10.8–13.0 in-lbf) |
| Solution | 1U Server and Up |
| Dimensions | 120.0 x 103.6 x 27.2 mm |
| Weight | 605 g |
| Material | Copper Fin + Vapor Chamber |
| Fan Dimension | Ø80 x 13 mm |
| Speed |
At Duty Cycle 20%: 2000 ± 200 RPM At Duty Cycle 50%: 5900 ± 10% RPM At Duty Cycle 100%: 10000 ± 10% RPM |
| Power | At Duty Cycle 20%: 1.44 W At Duty Cycle 50%: 10.8 W At Duty Cycle 100%: 42.0 W |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Air Flow |
At Duty Cycle 0~20%: 7.54 CFM At Duty Cycle 50%: 17.8 CFM At Duty Cycle 100%: 26.25 CFM |
| Noise Level |
At Duty Cycle 20%: 7.54 mm-H2O At Duty Cycle 50%: 41.3 mm-H2O At Duty Cycle 100%: 118.64 mm-H2O |
| Air Pressure |
At Duty Cycle 20%: 7.54 mm-H2O At Duty Cycle 50%: 41.3 mm-H2O At Duty Cycle 100%: 118.64 mm-H2O |
| Lead Wire Pin Out |
Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output)Pin#4- Blue (PWM) |
|
Life – Continuous operating under normal temperature (40 °C or 104 °F) |
70,000 Hours |
