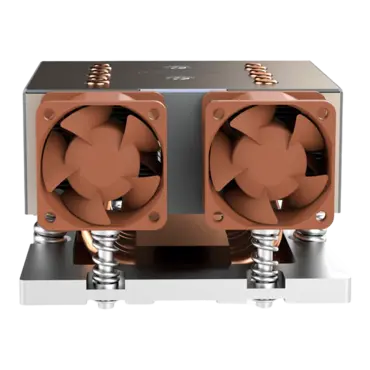

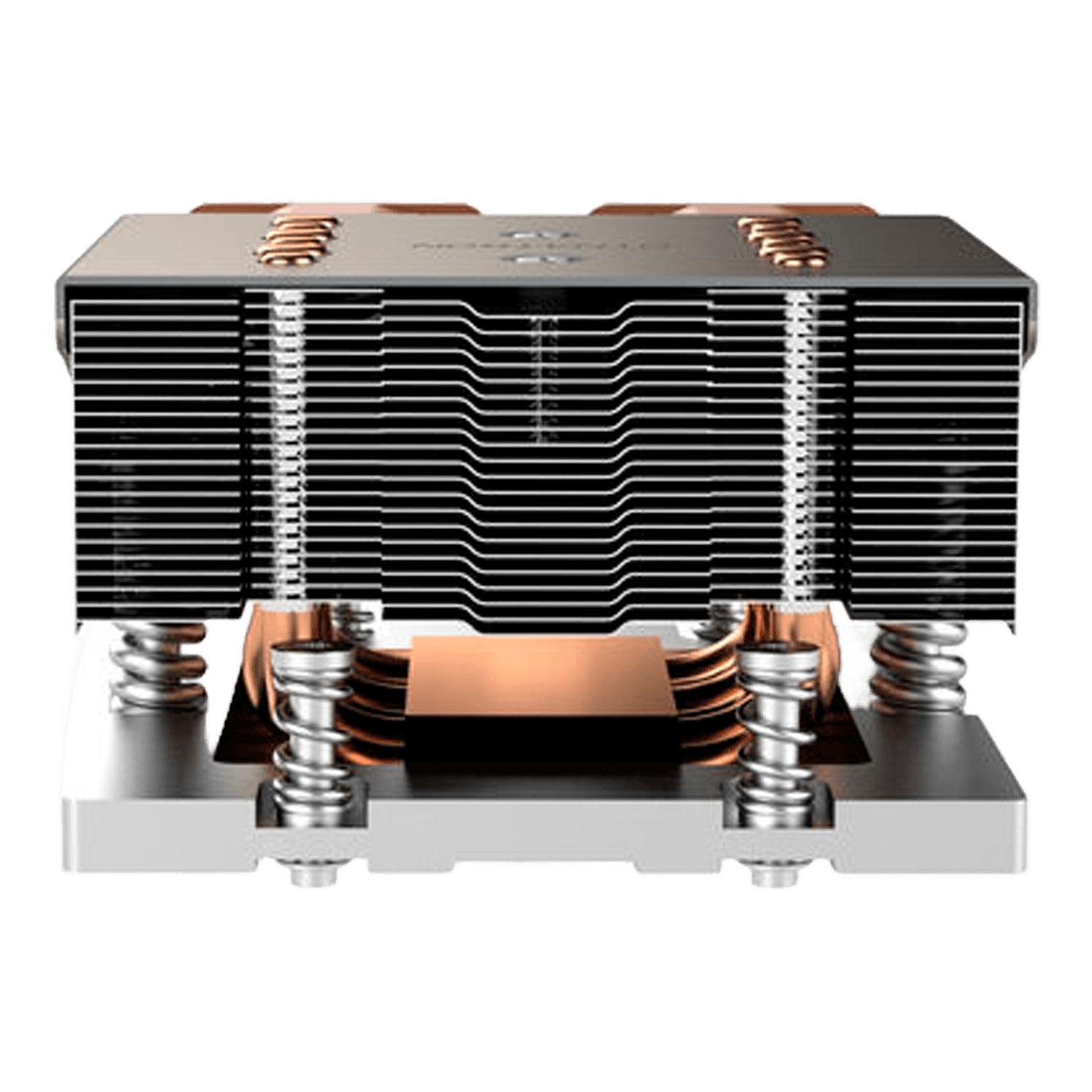

J23, 66mm Height, 450W TDP, Copper/Aluminum CPU Cooler
- SKU: 20085434
- Manufacturer: DYNATRON
- MPN: J23
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
J23, 66mm Height, 450W TDP, Copper/Aluminum CPU Cooler
The Dynatron J23 CPU cooler is designed for 2U
The Dynatron J23 CPU cooler is designed for 2U
| CPU Support | AMD® |
| CPU Socket | SP7 |
| Screw Type | M3.5/M4 |
| Installation Torque | 12.5–15.0 kg-cm (10.8–13.0 in-lbf) |
| Solution | 2U Server and Up |
| Dimensions | 120.0 x 103.6 x 65.5 mm |
| Weight | 930 ± 5g |
| Material | Copper Fin + Vapor Chamber |
| Fan Dimension | 40x 40 x 28 mm |
| Speed |
At Duty Cycle 0~20%: 3300±10% RPM At Duty Cycle 50%: 15000± 10% RPM At Duty Cycle 100%: 26000±10% RPM |
| Power | At Duty Cycle 0~20%: 0.72 W At Duty Cycle 50%: 6 W At Duty Cycle 100%: 22.8 W |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Air Flow |
At Duty Cycle 0~20%: 4.74 CFM At Duty Cycle 50%: 21.53 CFM At Duty Cycle 100%: 37.32 CFM |
| Noise Level |
At Duty Cycle 20%: 19.35 dBA At Duty Cycle 50%: 52.23 dBA At Duty Cycle 100%: 64.17 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 1.612 mm-H2O At Duty Cycle 50%: 33.30 mm-H2O At Duty Cycle 100%: 100.06 mm-H2O |
| Lead Wire Pin Out |
Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
|
Life – Continuous operating under normal temperature (40 °C or 104 °F) |
70,000 Hours |
