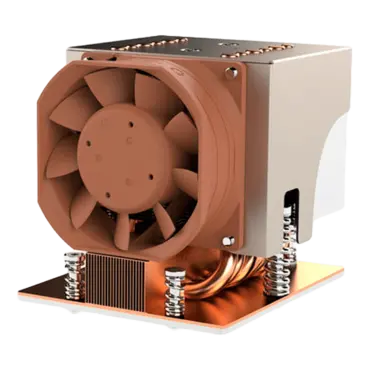

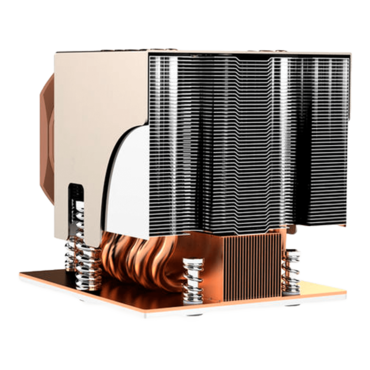

J24, 110mm Height, 600W TDP, Copper/Aluminum CPU Cooler
- SKU: 20085435
- Manufacturer: DYNATRON
- MPN: J24
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
J24, 110mm Height, 600W TDP, Copper/Aluminum CPU Cooler
The Dynatron J24 CPU cooler is designed for 3U
The Dynatron J24 CPU cooler is designed for 3U
| CPU Support | AMD® |
| CPU Socket | SP7 |
| Screw Type | M3.5/M4 |
| Installation Torque | 12.5–15.0 kg-cm (10.8–13.0 in-lbf) |
| Solution | 3U |
| Dimensions | 120.0 x 103.6 x 110.0 mm |
| Weight | 1080g |
| Material | Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Vapor Chamber Heatsink Base |
| Fan Dimension | 80 x 80 x 38 mm |
| Speed |
At Duty Cycle 0~20%: 2400± 200 RPM At Duty Cycle 50%: 4800± 10% RPM At Duty Cycle 100%: 8000±10% RPM |
| Bearing | Double Ball |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 1.2 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
| Air Flow |
At Duty Cycle 0~20%: 32.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
| Noise Level |
At Duty Cycle 0~20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.40 dBA |
| Air Pressure |
At Duty Cycle 0~20%: 3.45 mm-H2O At Duty Cycle 50%: 13.6 mm-H2O At Duty Cycle 100%: 38.3 mm-H2O |
| Lead Wire Pin Out |
Pin#1- Black(-) Pin#2- Yellow(+) Pin#3- Green(Tachometer/ Signal Output) Pin#4- Blue (PWM) |
| Thermal Grease | Shin-Etsu 8195-4 or Equivalent Pre-Printed |
|
Life – Continuous operating under normal temperature (40 °C or 104 °F) |
70,000 Hours |
