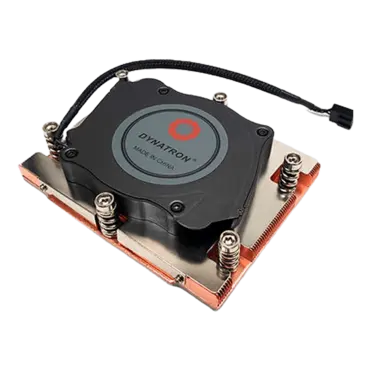

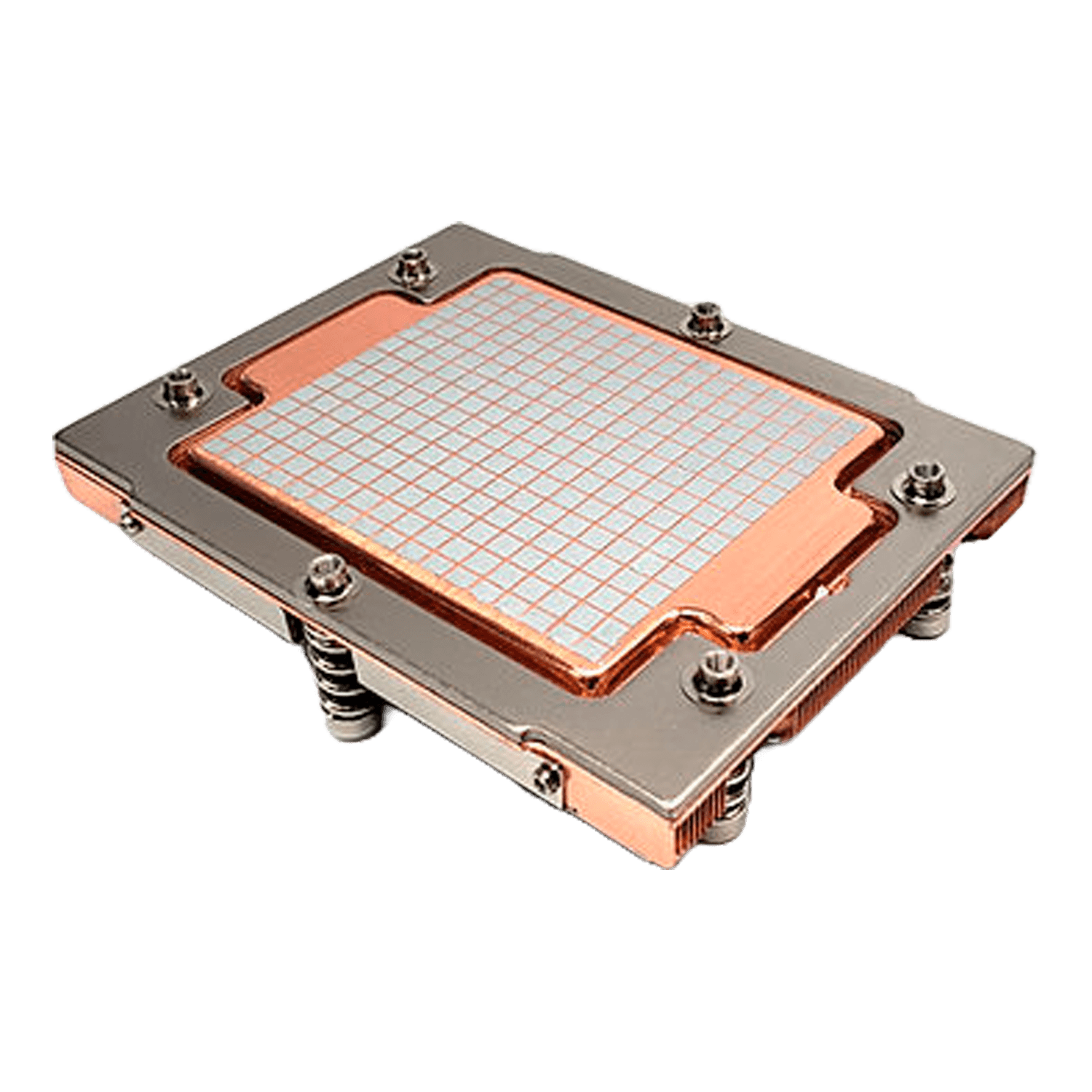

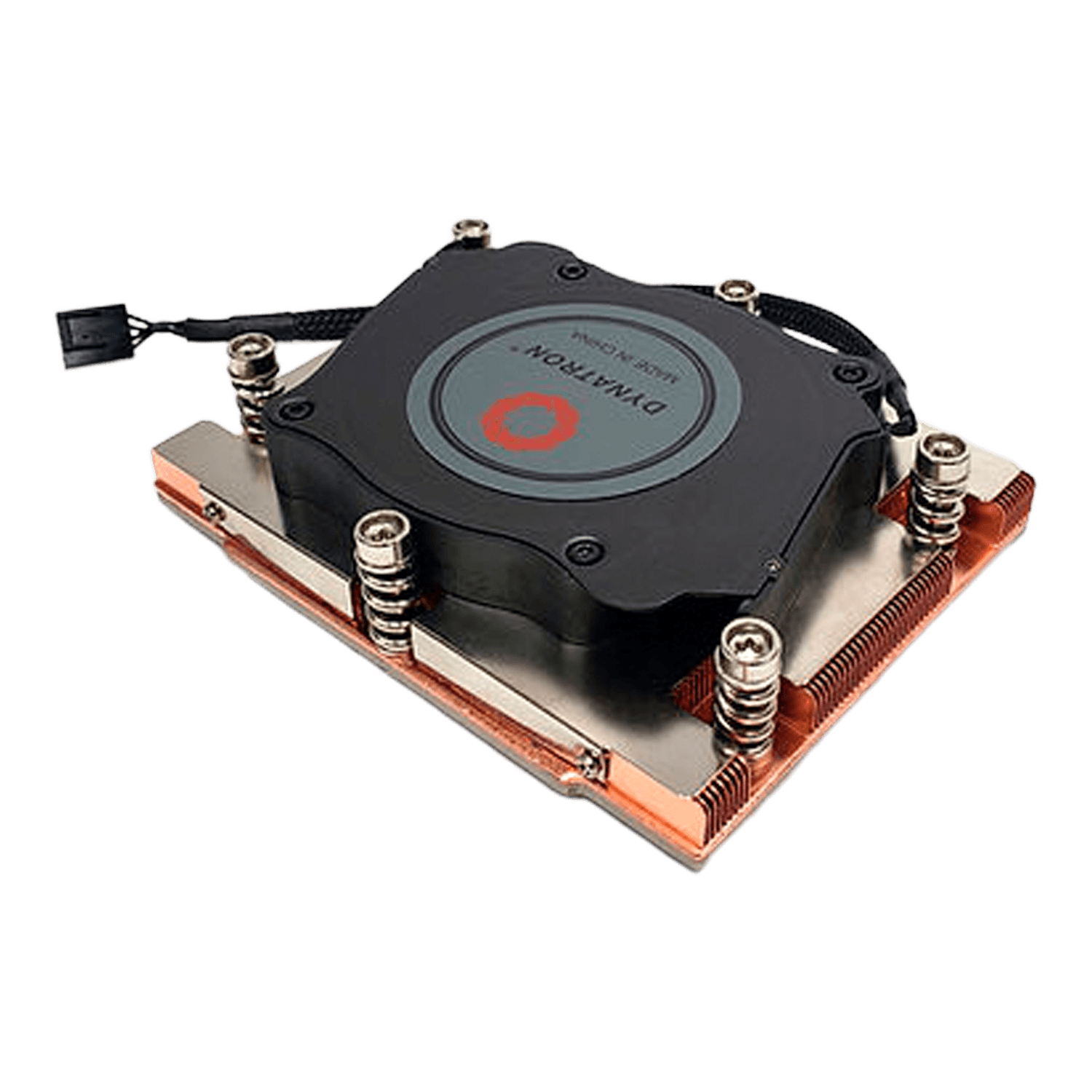

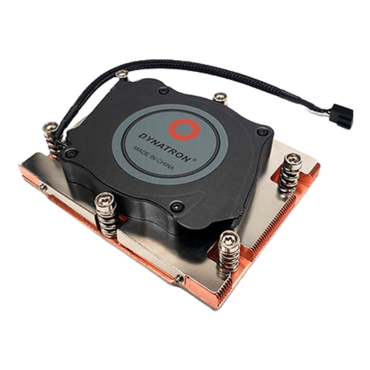

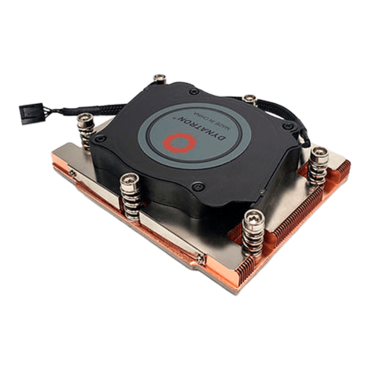

J5, 27mm Height, 315W TDP, Copper CPU Cooler
- SKU: 18478167
- Manufacturer: DYNATRON
- MPN: J5
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
J5, 27mm Height, 315W TDP, Copper CPU Cooler
The Dynatron J5 CPU cooler is designed for J5 1U
The Dynatron J5 CPU cooler is designed for J5 1U
- CPU SUPPORT
AMD -
CPU SOCKET
SP5 - APPLICATION
1U -
MAXIMUM POWER*
315W -
* At an ambient temperature of 20°C, it is estimated from the thermal resistance value of the radiator.
| CPU Support | AMD® |
| CPU Socket | Genoa®, Socket SP5 |
| Screw Type | M3.5 |
| Installation Torque | 12.5-15.1 in-lb |
| Solution | 1U Server and Up |
| Dimensions | 118.0 x 92.4 x 27.0 mm |
| Weight | 576 g |
| Material | Copper Fin + Vapor Chamber |
| Fan Dimension | Ø80 x 13 mm |
| Speed |
At Duty Cycle 20%: 2000 ± 200 RPM At Duty Cycle 50%: 4900 ± 10% RPM At Duty Cycle 100%: 8600 ± 10% RPM |
| Power | At Duty Cycle 20%: 1.08 W At Duty Cycle 50%: 4.70 W At Duty Cycle 100%: 23.45 W |
| Bearing | Ball Type, Double |
| Rated Voltage | 12V |
| Air Flow | At Duty Cycle 0~20%: 5.59 CFM At Duty Cycle 50%: 14.76 CFM At Duty Cycle 100%: 26.25 CFM |
| Noise Level | At Duty Cycle 20%: 23.3 dBA At Duty Cycle 50%: 43.5 dBA At Duty Cycle 100%: 62.2 dBA |
| Air Pressure |
At Duty Cycle 20%: 3.69 mm-H2O At Duty Cycle 50%: 25.28 mm-H2O At Duty Cycle 100%: 89.80 mm-H2O |
| Lead Wire Pin Out | Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
