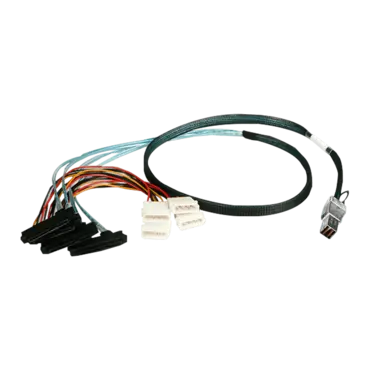

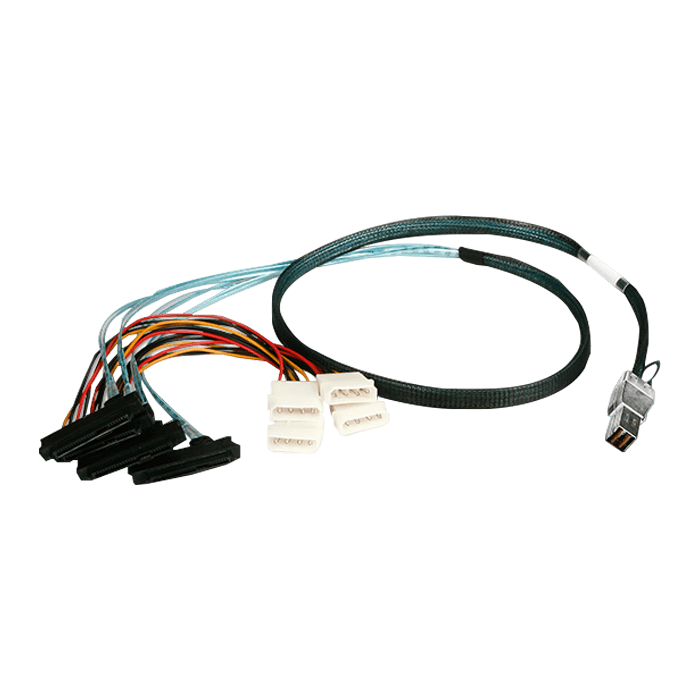

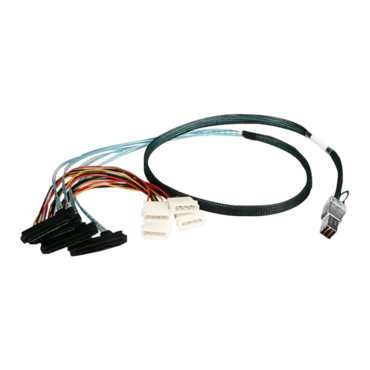

K-HD44X82-1M 12 Gb/s HD miniSAS SFF-8644 to 4x SFF-8482 1 meter Cable
Quantity:
- SKU: 10339253
- Manufacturer: ISTARUSA
- MPN: K-HD44X82-1M
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$75.89
K-HD44X82-1M 12 Gb/s HD miniSAS SFF-8644 to 4x SFF-8482 1 meter Cable
- HD miniSAS SFF-8644 to 4x SFF-8482 cable
- RoHS compliant
- Complaint to SAS-3 specifications for SAS hard drives
- Compatible with SATA hard drives
- 12 Gb/s compatible (total bandwidth up to 48 Gb/s)
| Model Number | K-HD44X82-1M |
| RoHS Compliance | Yes |
| Length: | 1 M |
| Wire Size: | 30 Gauge |
| Latch Style: | Pull Type |
| Directional: | Yes, SFF-8644 to host |
| Connector: | SFF-8644 to SFF-8482 |
| Impedance: | 100 Ohms |
| Compliant: | SAS-3.0 |
| Type: | Passive |
| Transfer Rate: | 12 Gb/s |
| Dimensions (WxHxD) | 0.30" x 0.20" x 39.37"
8 mm x 5 mm x 1,000 mm |
| Notes | contact us for custom cables |
