K6, Socket LGA 1151, 27.8mm Height, 55W TDP, Aluminum CPU Cooler

SKU: 12165373

Manufacturer: DYNATRON

MPN: K6

Availability: Unknown


Price: $18.39
or as low as $1/month
Quantity:

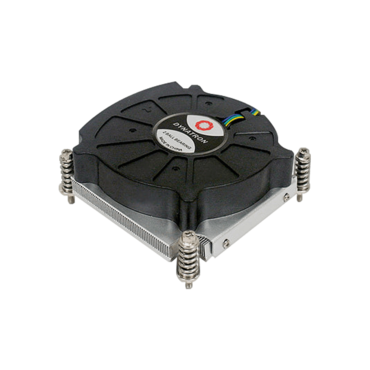

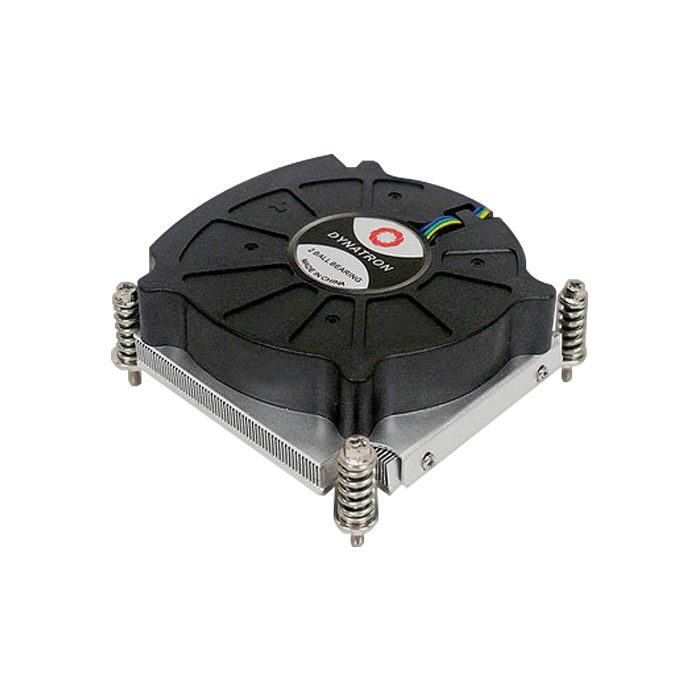

The Dynatron K6 CPU cooler is designed for 1U Active for Intel LGa115x

CPU Support Intel
CPU Socket LGA1151 l LGA1155 l LGA1156
Solution 1U Server
Dimensions 83.0 x 81.0 x 27.8 mm
Weight 200 g
Material Aluminum 6061 Skived Fins
Fan Dimension 80 x 80 x 15 mm
Speed At Duty Cycle 20%: 1200 ± 150RPM
At Duty Cycle 50%: 1700 ± 10% RPM
At Duty Cycle 100%: 3000 ± 10% RPM
Bearing 2 Ball Bearing
Rated Voltage 12V
Power At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.20 W
At Duty Cycle 100%: 5.04 W
Air Flow At Duty Cycle 20%: 3.6 CFM
At Duty Cycle 50%: 5.1 CFM
At Duty Cycle 100%: 9.0 CFM
Noise Level At Duty Cycle 20%: 18.8 dBA
At Duty Cycle 50%: 26.3 dBA
At Duty Cycle 100%: 38.7 dBA
Air Pressure At Duty Cycle 0~20%: 0.083 inch-H2O
At Duty Cycle 50%: 0.167 inch-H2O
At Duty Cycle 100%: 0.52 inch-H2O
Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
