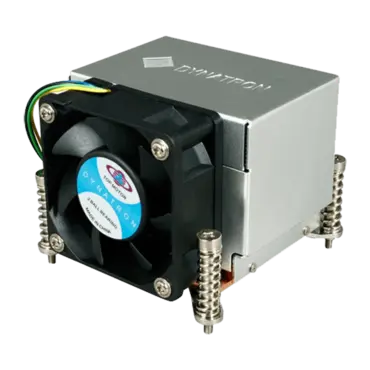

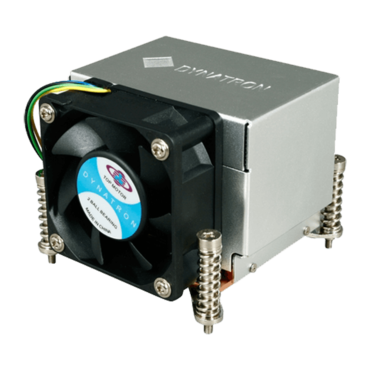

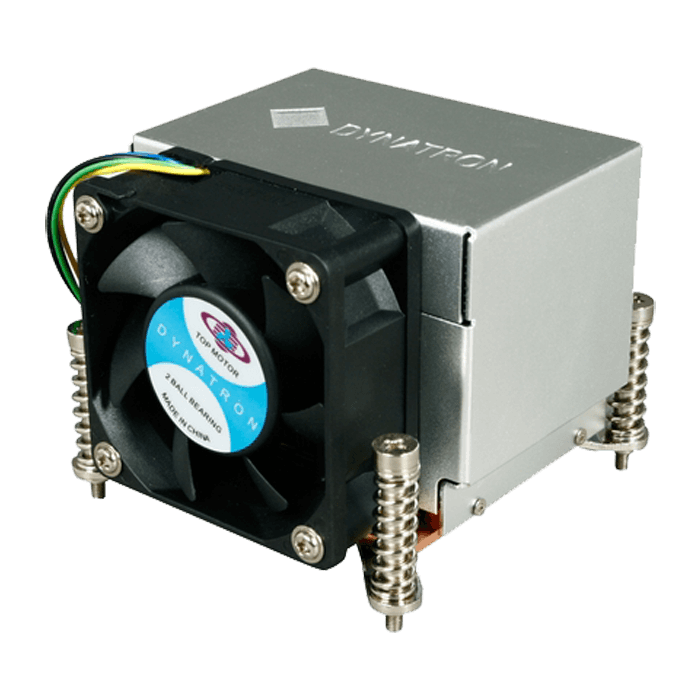

The Dynatron K666 CPU cooler is designed for K666
CPU Socket | Skylake LGA 1151, Haswell LGA1150 and LGA1155/1156 |
CPU Support | LGA 1155: Intel® 2nd Generation Core™ i7-2600, i5-2500 series & Sandy Bridge Xeon® Processors 1220, 1220L, 1225,1230, 1235, 1240, 1245, 1260L, 1270, 1275 & 1280 |
LGA1156: Intel® Core™ i3 i3-530 & i3-540, Core™ i5 i5-650, i5-650, i5-660, i5-661 i5-670 & I5-750; Xeon® Processor 3400 Series; Core™ i7 Processors, I7-870 & I7-860 | |
Solution | 2U&Up Server |
Overall Dimension | 90.7 x 85.0 x 64.0 mm |
Weight | 500 g |
Material | Copper Base & Aluminum Fins with Heatpipes embedded |
Fan Dimension | 60 x 60 x 25 mm |
Speed |
At Duty Cycle 0~20%: 1600 RPM At Duty Cycle 50%: 2300 RPM At Duty Cycle 100%: 5000 RPM |
Bearing | 2 Ball Bearing |
Rated Voltage | 12 V |
Power |
At Duty Cycle 0~20%: 0.72 W At Duty Cycle 50%: 1.2 W At Duty Cycle 100%: 3.0 W |
Air Flow |
At Duty Cycle 0~20%: 8.5 CFM At Duty Cycle 50%: 12.2 CFM At Duty Cycle 100%: 26.45 CFM |
Noise Level |
At Duty Cycle 0~20%: 13.8 dBA At Duty Cycle 50%: 21.8 dBA At Duty Cycle 100%: 38.7 dBA |
Air Pressure |
At Duty Cycle 0~20%: 0.75 mm-H2O At Duty Cycle 50%: 1.55 mm-H2O At Duty Cycle 100%: 7.32 mm-H2O |
Lead Wire Pin Out |
Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Tachometer/Signal output) Pin4-Blue (PWM) |
Note |
1. Thermal Grease Pre-Printed with GE-Toshiba TIG830SP 2. RoHS Compliance |
