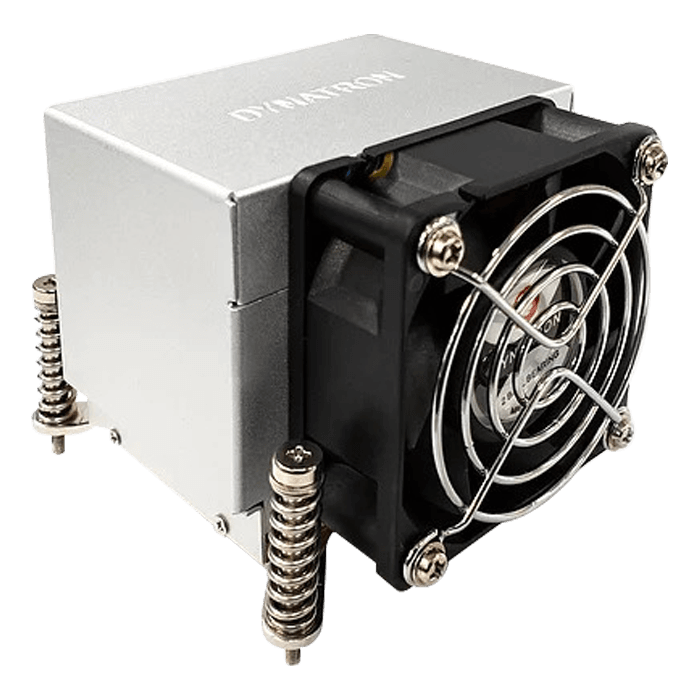

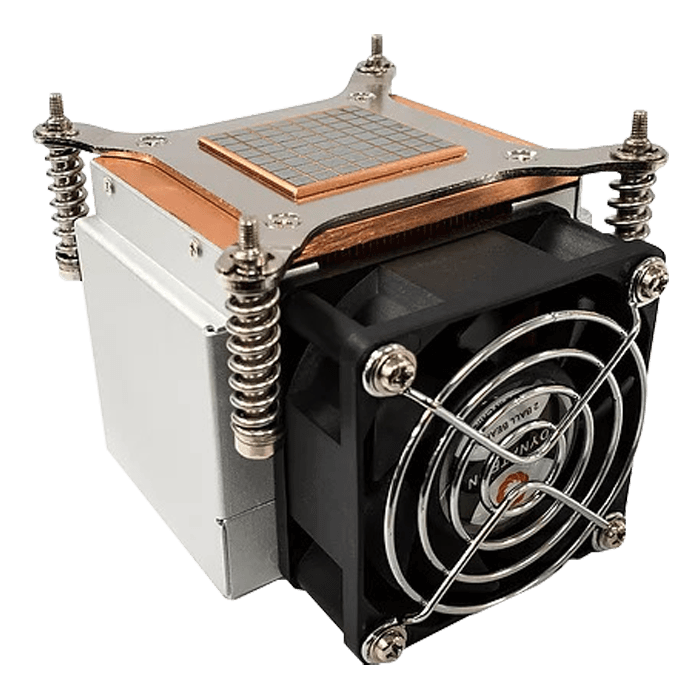

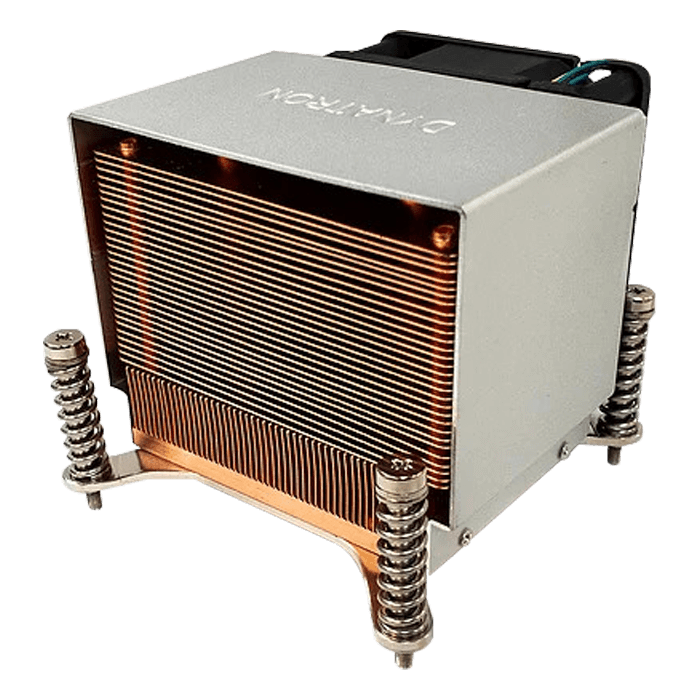

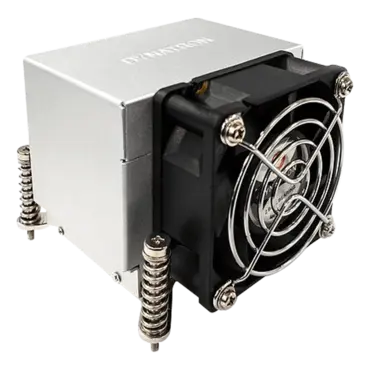

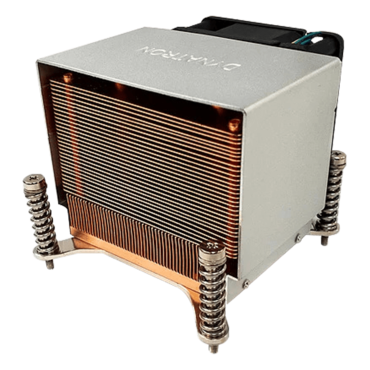

K668, Socket LGA 115X/1200, 68mm Height, 165W TDP, Copper CPU Cooler

SKU: 13753424

Manufacturer: DYNATRON

MPN: K668

Availability: Available


Price: $33.34
or as low as $1/month
Quantity:

Recommend for Intel® Socket LGA 115X and LGA 1200, 60 x 60 x 25mm fan with PWM function, Copper Heatsink with Heat Pipes. Support 165 Watts CPU Power Heat Dissipation for 2U&Up Server Solution.

CPU Support

Intel

CPU Socket

Socket LGA 115X/1200

Weight

700 ± 5 g

Material

Copper Heatsink with Heat Pipes

Solution

2U Server and Up

Dimensions

81.0 x 80.0 x 68.0 mm

Fan Dimension

60 x 60 x 25 mm

Rated Voltage

12V

Bearing

2 Ball Bearing

Speed

At Duty Cycle 20%: 1700 ± 200 RPM
At Duty Cycle 50%: 4000 ± 10% RPM
At Duty Cycle 100%: 8000~8500 RPM

Power

At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 2.5 W
At Duty Cycle 100%: 9.6 W

Air Flow

At Duty Cycle 0~20%: 9.86 CFM
At Duty Cycle 50%: 23.21 CFM
At Duty Cycle 100%: 49.32 CFM

Air Pressure

At Duty Cycle 0~20%: 0.86 mm-H2O
At Duty Cycle 50%: 4.76 mm-H2O
At Duty Cycle 100%: 21.50 mm-H2O

Lead Wir Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
