Home › Components › Accessories › Server Accessories › Heatsinks and CPU Coolers

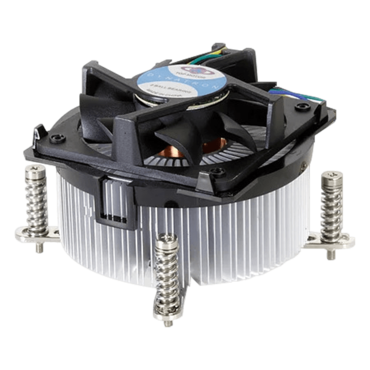

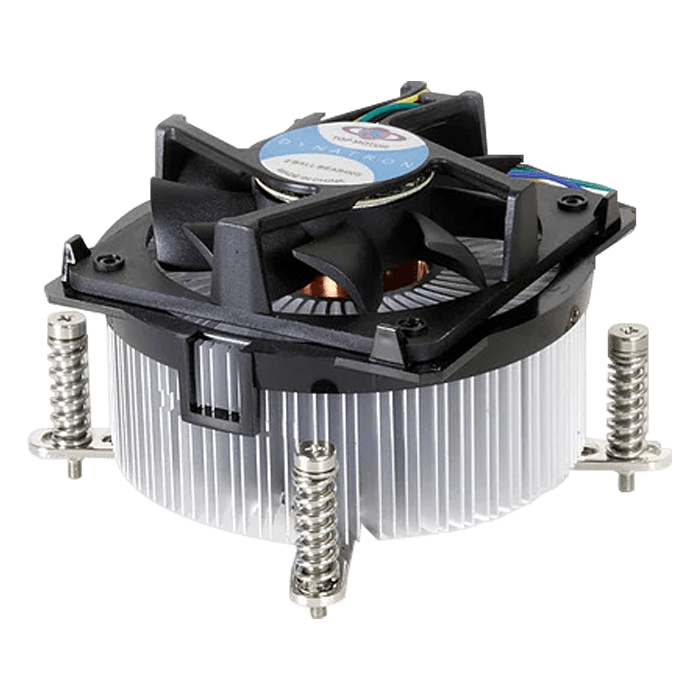

K785, Socket LGA 115X/1200, 62mm Height, 125W TDP, Copper/Aluminum CPU Cooler

  • SKU: 3583377
  • Manufacturer: DYNATRON
  • MPN: K785
  • Availability: LOW STOCK
Price
$26.61
Quantity:
K785, Socket LGA 115X/1200, 62mm Height, 125W TDP, Copper/Aluminum CPU Cooler
Recommend for Intel® Socket LGA 1150, LGA 1151, LGA 1155, LGA 1156, and LGA 1200, 77×20 mm Fan with PWM Function, Aluminum Fins with Copper Inserted, Active Cooler for 2U&Up Server, Support 125 Watts CPU Power Heat Dissipation.
CPU Support

Intel
CPU Socket

LGA 115X/1200
Material

Aluminum Extruded Radial Heatsink with Copper Core
Solution

2U Server and Up
Dimensions

90.0 x 90.0 x 62.0 mm
Fan Dimension

77 x 20 mm
Weight

500 g
Speed

At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 2500 RPM
At Duty Cycle 100%: 4500 RPM

Rated Voltage

12V
Bearing

2 Ball Bearing
Power

At Duty Cycle 20%: 0.84 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 6.0 W

Air Flow

At Duty Cycle 20%: 10.12 CFM
At Duty Cycle 50%: 25.30 CFM
At Duty Cycle 100%: 45.56CFM

Air Pressure

At Duty Cycle 20%: 0.185 mm-H2O
At Duty Cycle 50%: 1.156 mm-H2O
At Duty Cycle 100%: 3.746 mm-H2O

Lead Wire Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM
