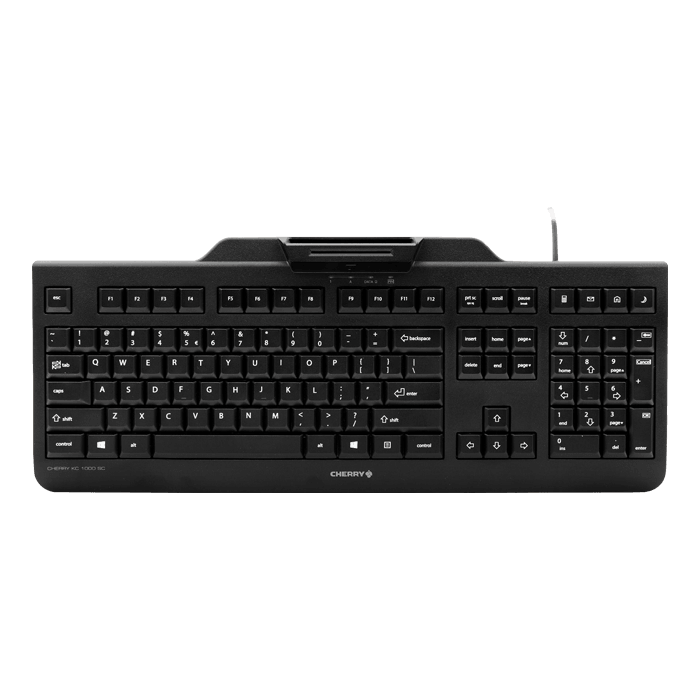

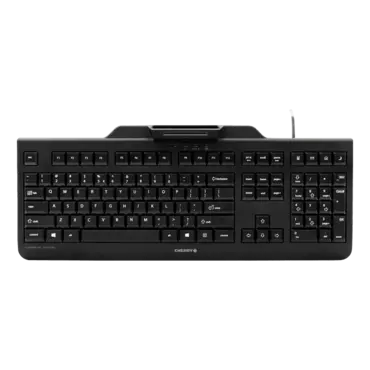

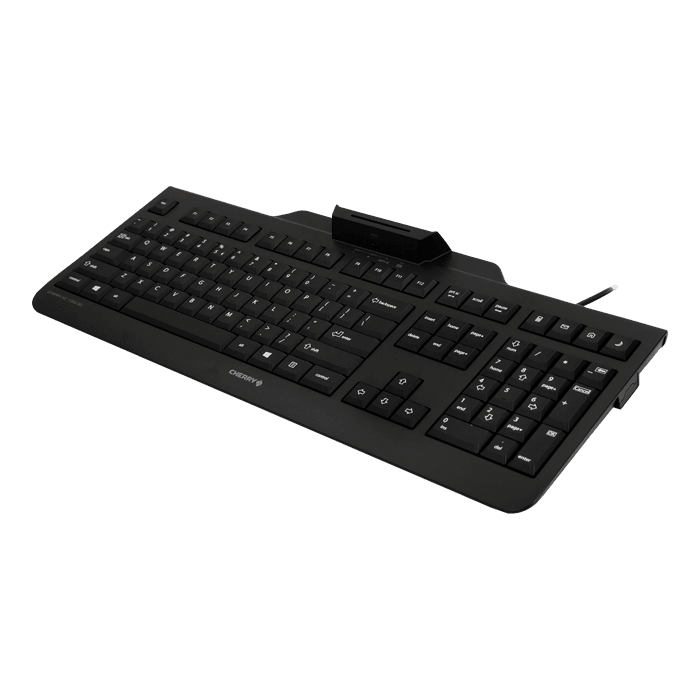

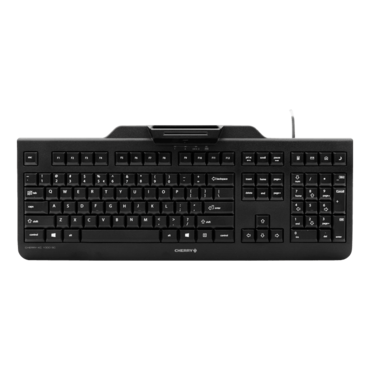

KC 1000 SC, w/ Smart Card Terminal, Wired, Black, Membrane Standard Keyboard
KC 1000 SC, w/ Smart Card Terminal, Wired, Black, Membrane Standard Keyboard

KC 1000 SC, w/ Smart Card Terminal, Wired, Black, Membrane Standard Keyboard

Quantity:
  • SKU: 10223458
  • Manufacturer: CHERRY
  • MPN: JK-A0104EU-2
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$55.25
Quantity:
KC 1000 SC, w/ Smart Card Terminal, Wired, Black, Membrane Standard Keyboard

Lasting reliability. Timeless elegance. Intelligent concept. CHERRY KC 1000 SC combines the benefits of a classic CHERRY office keyboard with the security-related requirements of a security keyboard.

  • Smart, wired security keyboard with integrated chip card terminal
  • Secure PIN entry
  • PC/SC smartcard reader
  • Protocols: T=0, T=1, S=8, S=9, S=10
  • CCID compatible
  • Reading/writing ISO 7816 compliant smartcards
  • Flat design, low smart card contacting unit
  • Satisfies requirements defined by FIPS-201
  • German version with DIN/GS compliant layout
  • Driver support for Windows/MacOS-X/Linux
  • One-handed operation of smart card module
  • TAA compliance for SKU JK-A0104EU-2
  • Made in Europe
SKU JK-A0100
Warranty 3 years
Smart card reader
  • Type: Mechanical
  • Hardware interface: USB
  • Agency Approvals:
  • Chip-card protocols: T=0, T=1, S=8, S=9, S=10
  • Contact: mechanical swipe reader
  • Software interface: CT-Api, PC/SC
  • Mating cycles: approx. 100,000 operations
  • Compatible chip card types: Reads and writes on all ISO 7816 cards
  • Transmission speed reader <==> card: 420 kBit/s
  • Transmission speed reader <==> system: max. 12 MBit/s
  • Chip card pulse frequency: 4.8 MHz
Packaging unit
  • Number of products in the master package: Product dependant, see table
Keyboard
  • Key technology: LPK
  • Service life, standard key: > 10 million key operations
  • Number of Keys: Product dependant, see table
Reliability
  • MTBF > 45,000 hours
Packaging dimensions approx. 472 x 232 x 55 mm
Dimensions (product) approx. 458 x 188 x 46 mm
Delivery volume
  • CHERRY KC 1000 SC
  • Operating instructions in hard copy
System requirements
  • USB connection
Interface
  • USB
Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 65 °C
Cable length approx. 1,80 m
Total weight (with packaging) 1150 g
Weight (product) approx. 840 g
Layout (country or language) Product dependant, see table "Models"
Type Cable
Price
$55.25
As low as $4.60/ Month*
$55.25
