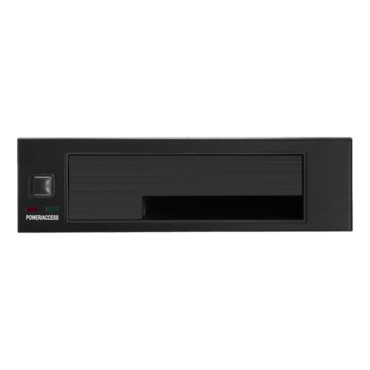

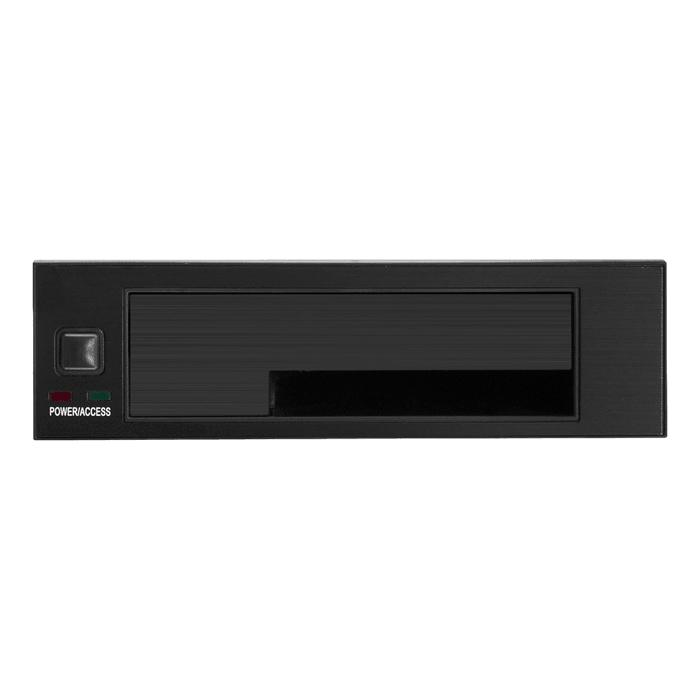

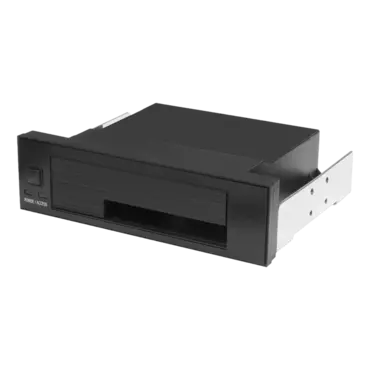

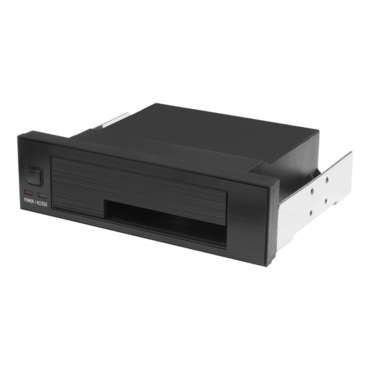

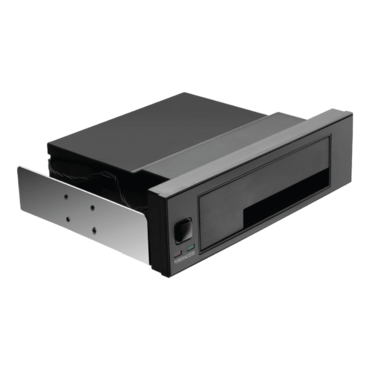

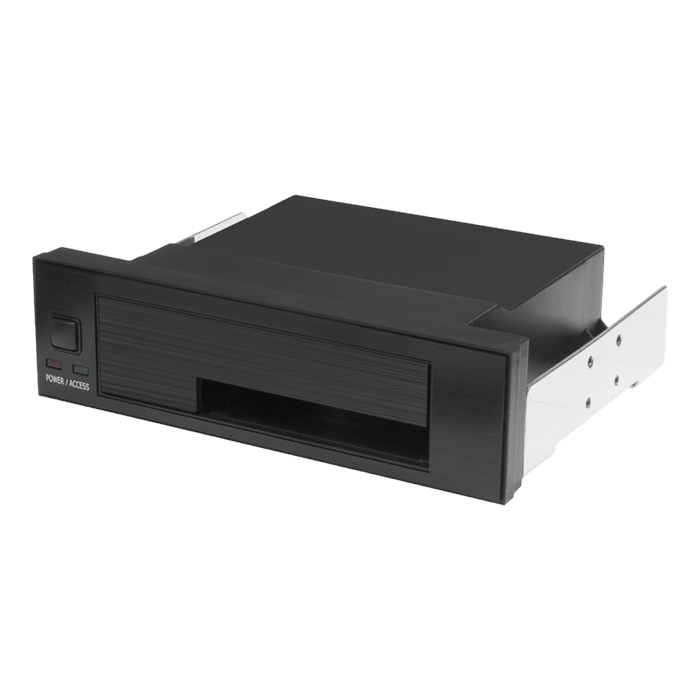

KF-255-BK 2.5”/3.5” Internal SATA Trayless Hot Swap Rack

Quantity:
  • SKU: 8810655
  • Manufacturer: KINGWIN
  • MPN: KF-255-BK
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$14.94
Quantity:
KF-255-BK 2.5”/3.5” Internal SATA Trayless Hot Swap Rack

The KF-255-BK

Introducing the KF-255-BK Internal Tray-less Hot-Swap Rack for 3.5” SATA HDD or 2.5” SATA HDD/SSD! The KF255-BK rack fits perfectly right into any 5.25” front bay slot of your desktop or server PC. It is easy to install to your computer and lets you insert any 3.5” SATA HDD or 2.5” SATA HDD/SSD and access the drive directly using the SATA controller interface of your PC motherboard. With SATA interface, you get faster performance and better compatibility compared to external USB solutions minus the messy cables and external power adapter that consumes desk space. Because the KF-255-BK rack has a tray-less design, you can also easily and quickly hot-swap your SATA drive without needing to reboot your computer. The KF-255-BK rack is also lightweight and durable with patented Non-Scratch SATA (NSS) connectors and solid stainless steel casing. The KF-255-BK is a perfect addition to your desktop/server PC for data storage backup and expansion.

Space-Saving & Easy to Install

The KF-255-BK internal rack is an excellent space-spacing solution that fits perfectly into your PC. You won’t need to deal with more messy external cables and power adapters on your desk space. One major concern for most users in buying an internal drive rack is how difficult or easy it is to install the rack. Installing the KF-255-BK is very easy, straightforward, and you only need to do it one time. Just remove the computer casing side cover and pull out one of the front bay covers. Carefully insert the KF-255-BK rack into the bay and push forward until the screw holes of the rack and drive bay slot are both aligned. Secure the screws on both sides of the rack. Finally, connect the SATA data cable and SATA power cable (or the Molex 4-pin power cable) to the back of the KF-255-BK rack. And the KF-255-BK rack is now ready to use!

Versitile & Easy to Use

The KF-255-BK rack is versatile and super easy to use. The tray-less design supports both 3.5” and 2.5” SATA bare drives without the need for installing inconvenient drive mounting kits. You simply insert your 3.5” SATA HDD into the sliding door of the rack with the SATA connectors facing in. If you have a 2.5” SATA HDD or SSD, you insert the drive into the lower right opening of the front panel that fits perfectly. Gently push the drive forward until the SATA pin connectors are attached to the internal SATA drive port of the rack. You are now ready to access your SATA drive. Because the KF-255-BK supports SATA hot-swap capability, you don’t need to do any settings on your computer and your SATA drive will be automatically detected. You get true SATA performance and better compatibility! Simply pull-out the drive if you want to remove the drive from the rack.

Stylish & Durable

The KF-255-BK rack is versatile and super easy to use. The tray-less design supports both 3.5” and 2.5” SATA bare drives without the need for installing inconvenient drive mounting kits. You simply insert your 3.5” SATA HDD into the sliding door of the rack with the SATA connectors facing in. If you have a 2.5” SATA HDD or SSD, you insert the drive into the lower right opening of the front panel that fits perfectly. Gently push the drive forward until the SATA pin connectors are attached to the internal SATA drive port of the rack. You are now ready to access your SATA drive. Because the KF-255-BK supports SATA hot-swap capability, you don’t need to do any settings on your computer and your SATA drive will be automatically detected. You get true SATA performance and better compatibility! Simply pull-out the drive if you want to remove the drive from the rack.

  • Led light for power & HDD activity
  • Fits all 2.5” or 3.5” SATA hard disk
  • 2.5” or 3.5” SATA internal hot swap rack
  • Fits in one 5¼ drive bay
  • No inner tray required
  • Patented Non-Scratch SATA connector w/ 50K insertion rate
  • Easy transport and secure valuable data
  • Support hot swap
  • Supports SATA III (6.0 Gb/s)
  • Tool-less design for h.d.d. installation
  • Compatible with all type of PC cases
  • Hot-Swap function requires SATA Controller
  • Support for up to 6TB HDD
Model: KF-255-BK
Product Type: 2.5″ / 3.5” Internal Tray-Less Hot Swap Rack
Interface: Serial ATA
Color: Black
Connector: NSS (Non-Scratch SATA)
Material: Stainless steel & ABS plastic
Hot swap: Yes
Material: Stainless steel & ABS plastic
Insertion Rate: 50,000 times
OS: Windows: XP/Vista/7/8 MAC 10X+
Dimension: 110mm( 4 5/16”)L x 146mm (5 ¾”) W x 41mm ( 1 5/8”) H
Weight: 180g (0.4 lb)
