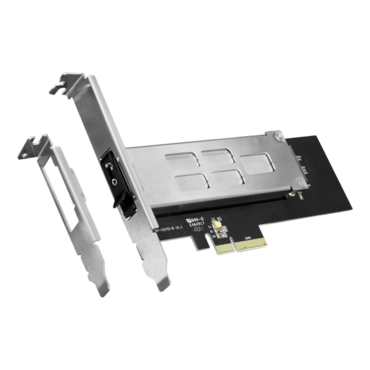

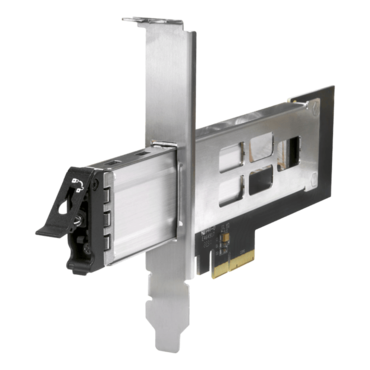

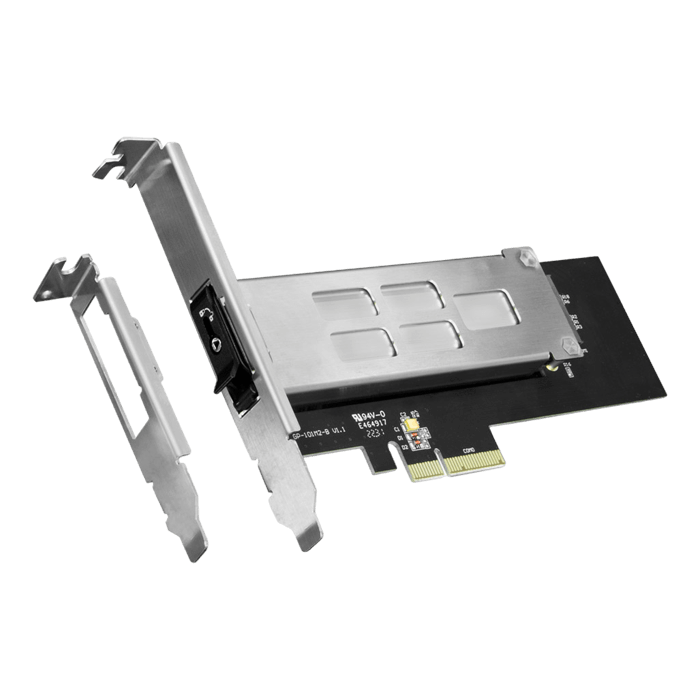

KW-101M2-BR M.2 Nvme SSD Mobile Rack for PCIe Expansion Slot

  • SKU: 17588068
  • Manufacturer: KINGWIN
  • MPN: KW-101M2-BR
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
  • The easiest way to enjoy the very high PCIe 3.0 or PCIe 4.0 performance via the mainboard PCIe bus (x4, x8, or x16 slots)
  • Fit 1 x M.2 PCIe Nvme SSD and compatible with drive length 2230 (30mm), 2242 (42mm), 2260 (60mm), and 2280 (80mm).
  • Reliable solid construction with stainless material frame, aluminum heatsink, and anti-vibration springs.
  • Install into a single-width full-height/half-height PCIe expansion slot.

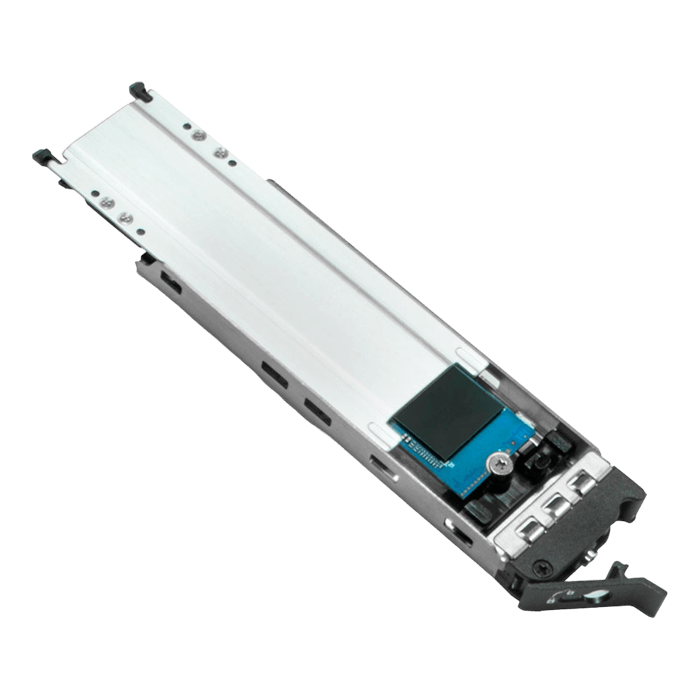

  • Removal drive bay with tool-less drive installation, design for easy drive maintenance.
Model Number: KW-101M2-BR
Color: Black & Silver
Compatible Drive Type: M.2 PCIe 3.0/4.0 Nvme SSD
Support Drive Size: 1 x M.2 PCIe Nvme SSD (2230/2242/2260/2280)
Support Drive Length: 30mm – 110mm
Host Interface: PCIe 3.0/4.0 x 4
Power Input: Via PCIe
Number of Drives: 1
Drive Bay: 1 x PCIe 3.0 or 4.0×4/x8/x16 Expansion Slot
Transfer Speed: Up to 64 Gbps (Depending on SSD)
Product Dimension: 165mm x 125mm x 22mm
Product Weight: 142.4g
