- Custom-designed NZXT Turbine pump delivers high flow rate and head pressure for powerful yet quiet CPU cooling.

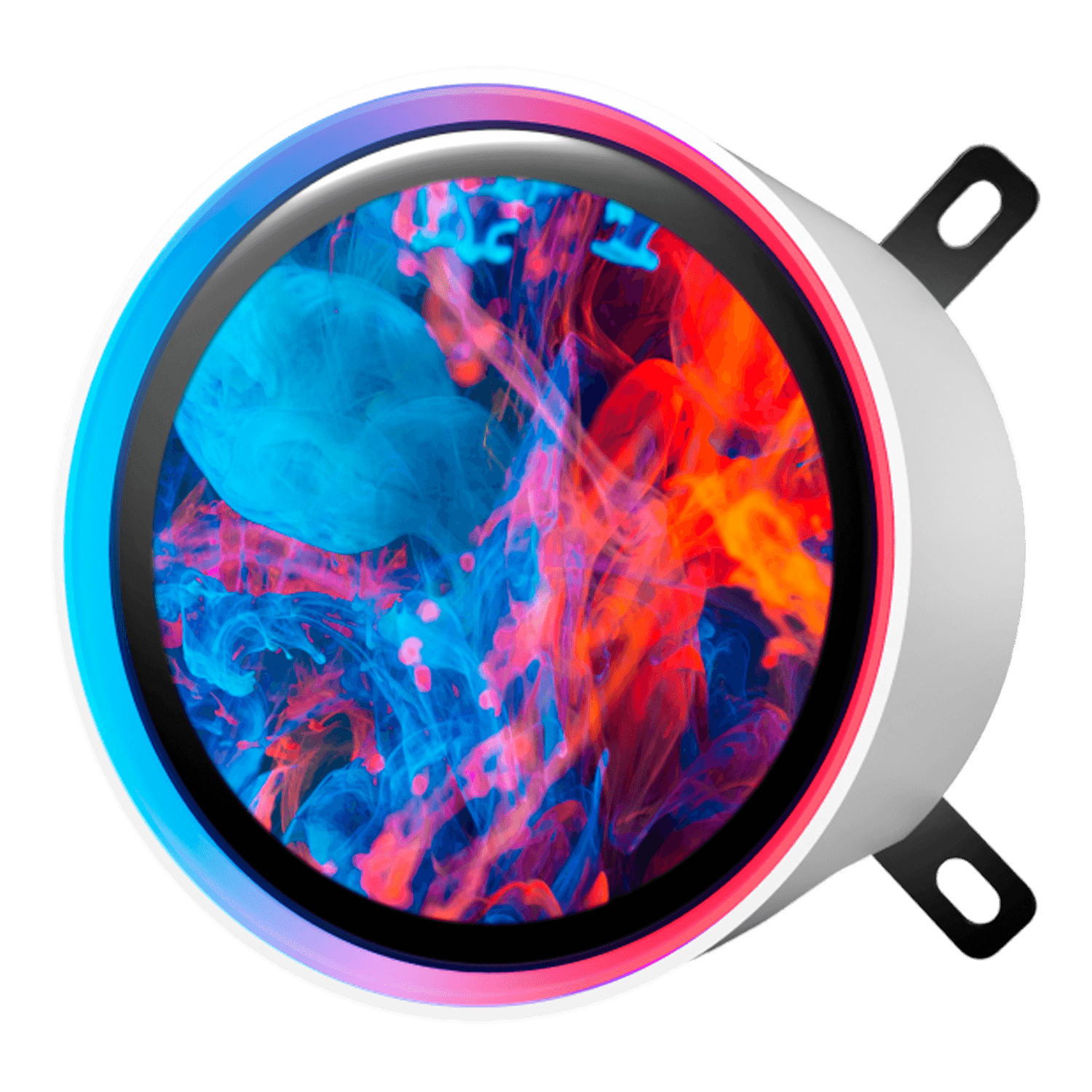

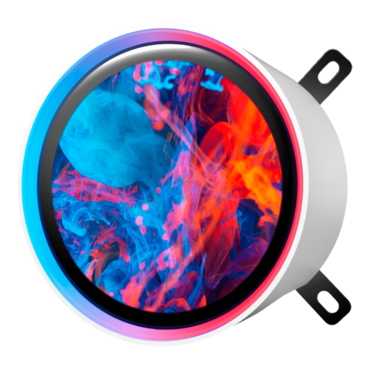

- Enjoy vivid visuals on the 2.72-inch IPS LCD with sharp 640x640 resolution, smooth 60 Hz refresh rate, and wide viewing angles.
- Showcase your favorite GIF or image, track real-time system performance, and integrate with Spotify, YouTube, and more.
- Customize the RGB ring with dynamic lighting effects or synchronize with on-screen content and other RGB devices.
- RGB Core single-frame fan provides optimal airflow and vibrant lighting with streamlined connectivity.
- Install easily with pre-applied thermal paste, a single breakout cable, and tool-free mounting brackets for the latest Intel® and AMD® CPU sockets.
- Extended rubber tubing with braided sleeving ensures worry-free handling and long-term leak protection.
LCD | |
Diameter | 2.72 in (69 mm) |
Colors | 16.7 million |
Resolution | 640 x 640 px |
Brightness | 690 cd/m² |
Panel Type | IPS |
Refresh Rate | 60 Hz |
Orientation | Software adjustable |
Pump | |
Name | NZXT Turbine Pump |
Motor Speed | 1,200 - 2,800 ± 300 RPM |
Power | 12V DC, 0.3A |
Cap | |
Diameter | 3.68 in (93.5 mm) |
Height | 2.56 in (65 mm) |
Cap Material | Plastic |
Ring Material | Plastic |

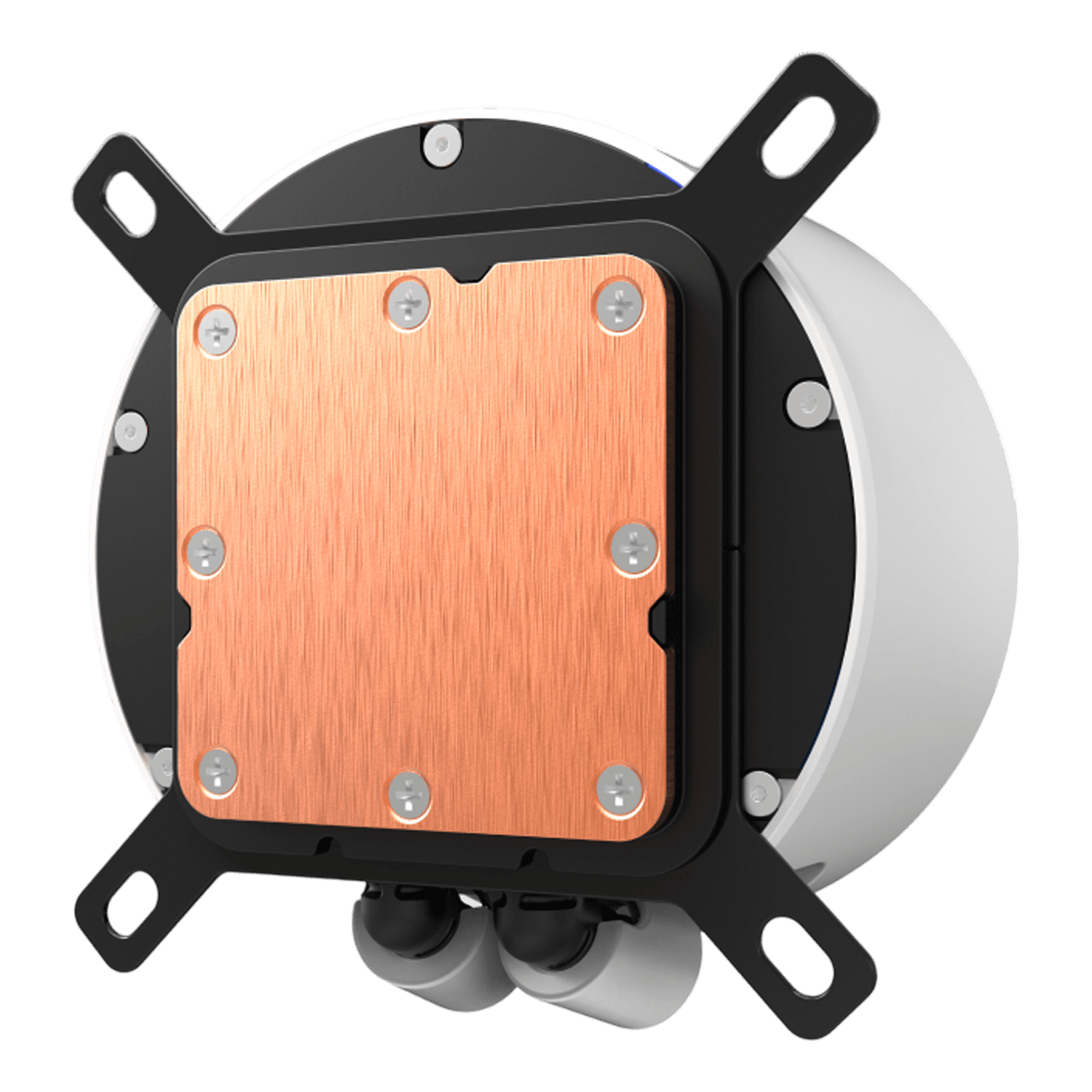

Cold Plate Material | Copper |
Housing Material | Plastic |
Radiator | |
Dimensions (L x W x H) | 281 x 120 x 27 mm 401 x 120 x 27 mm 281 x 120 x 27 mm 321 x 137 x 27 mm 401 x 120 x 27 mm 457 x 140 x 27 mm |
Material | Aluminum |
Tubing | |
Length | 460 mm |
Material | CIIR rubber with PET braided sleeve |
Fan Specs | |
Model | F420 RGB Core Fan |
Quantity | 1 |
Dimensions (W x H x D) | 420 x 140 x 26 mm |
Speed | 500 - 2,000 ± 200 RPM per fan |
Airflow | 98.61 CFM per fan |
Static Pressure | 3.2 mm H2O per fan |
Noise | 34.5 dBA per fan |
Power Consumption | 12V DC, 0.95A, 11.4W 5V DC, 0.81A, 4.05W |
Bearing | Fluid Dynamic Bearing |
Output LED | 8 LEDs per fan |
Connector | 8-pin for PWM & RGB |
Cable Length | 600 mm |
Material | Plastic, rubber, PCB |
Life | 60,000 hours |
CPU & Socket | |
Intel | Intel Socket LGA 1851/1700 & 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron |
AMD | AMD Socket AM5, AM4 AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 |
General | |
Warranty | 6 Years |
Black | |
Model Number | RL-KR42E-B2 |
UPC | 810074844291 |
EAN | 5056547204208 |
White | |
Model Number | RL-KR42E-W2 |
UPC | 810074844307 |
EAN | 5056547204215 |
