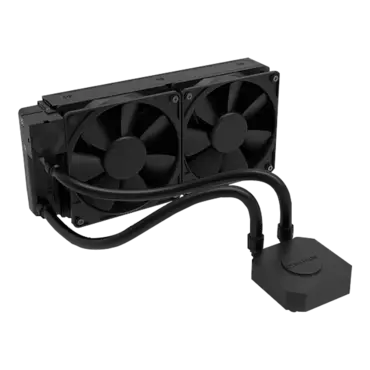

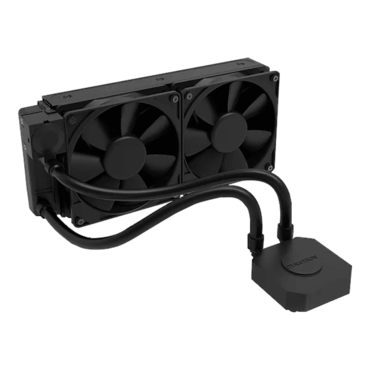

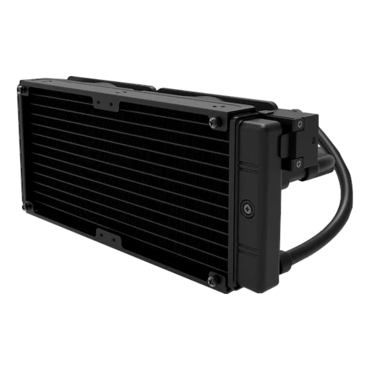

L15, Black, 240mm Radiator, Liquid Cooling System
- SKU: 17936386
- Manufacturer: DYNATRON
- MPN: L15
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$90.39
L15, Black, 240mm Radiator, Liquid Cooling System
The Dynatron L15 CPU cooler is designed for L15( multi-socket desktop 240mm)
The Dynatron L15 CPU cooler is designed for L15( multi-socket desktop 240mm)
| CPU Support | Intel & AMD |
| CPU Socket | Socket LGA1200/115X, LGA1356/1366, LGA2011/2066 Square ILM Mounting AMD FM2+/FM2/AM2/AM2+/AM3/AM3+/AM4/AM5/FM1 |
| Screw Type | #6-32/M3/M4 |
| Installation Torque | 6-10 in-lb/5-7 in-lb/10-16 in-lb |
| Solution | 4U/Tower PC |
| Fan Dimension | 120 x 120 x 25 mm |
| Cold Plate Dimension | 64.5 x 64.5 x 23.5 mm |
| Radiator Dimension | 282.39 x 54.7 x 120 mm |
| Speed | At Duty Cycle 0~20%: 600 ± 10% RPM At Duty Cycle 50%: 1650 ± 10% RPM At Duty Cycle 100%: 2400 ±10% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power | At Duty Cycle 0~20%: 0.60 W At Duty Cycle 50%: 1.92 W At Duty Cycle 100%: 5.40 W |
| Noise Level | At Duty Cycle 0~20%: 16 dBA At Duty Cycle 50%: 29.8 dBA At Duty Cycle 100%: 38 dBA |
| Air Flow | At Duty Cycle 0~20%: 23 CFM At Duty Cycle 50%: 63.3 CFM At Duty Cycle 100%: 92 CFM |
| Air Pressure | At Duty Cycle 0~20%: 0.28 mm-H2O At Duty Cycle 50%: 2.13 mm-H2O At Duty Cycle 100%: 4.5 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Tachometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
