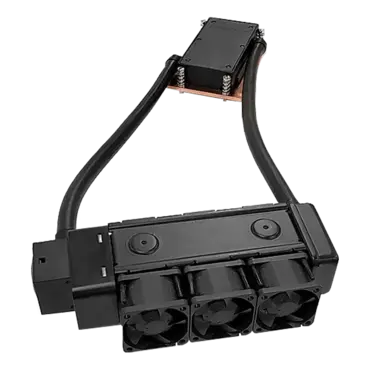

L18 All-in-one Liquid Cooler for 1U Servers, Socket SP3 / TR3 / TR4
The Dynatron L18 CPU cooler is designed for L18 ( AMD SP3 TR4 for 1U & UP)
The Dynatron L18 CPU cooler is designed for L18 ( AMD SP3 TR4 for 1U & UP)
CPU Support | AMD |
---|---|
CPU Socket | Socket SP3 / TR3 / TR4 |
Solution | 1U Server |
Fan Dimension | 40.0 x 40.0 x 28.0 mm |
Speed | At Duty Cycle 0~20%: 2500±10% RPM
At Duty Cycle 50%: 6700±10% RPM At Duty Cycle 100%: 1200±10% RPM |
Bearing | 2 Ball Bearing |
Rated Voltage | 12V |
Power | At Duty Cycle 0~20%: 1.2 W
At Duty Cycle 50%: 3.0 W At Duty Cycle 100%: 8.4 W |
Air Flow | At Duty Cycle 0~20%: 5.18 CFM
At Duty Cycle 50%: 13.87 CFM At Duty Cycle 100%: 24.84 CFM |
Noise Level | At Duty Cycle 0~20%: 18.7 dBA
At Duty Cycle 50%: 40.2 dBA At Duty Cycle 100%: 52.8 dBA |
Air Pressure | At Duty Cycle 0~ 20%: 1.39 mm-H2O
At Duty Cycle 50%: 9.98 mm-H2O At Duty Cycle 100%: 32.01 mm-H2O |
Lead Wire Pin Out | Pin1- (-)
Pin2- (+) Pin3- (Tachometer output) Pin4- (PWM Control) |
Water Pump | Stand-alone Water Pump in flow rate 1.7 Litter Per Minute |
