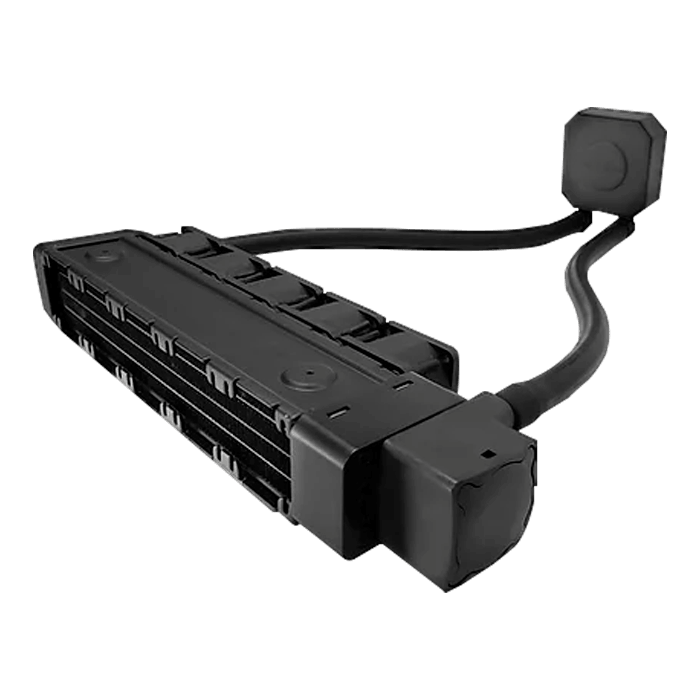

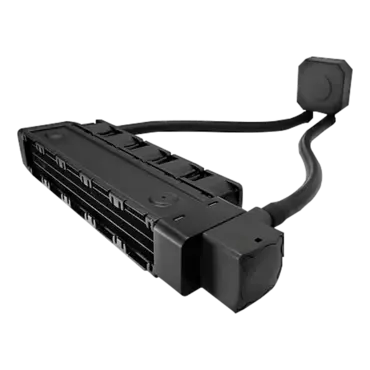

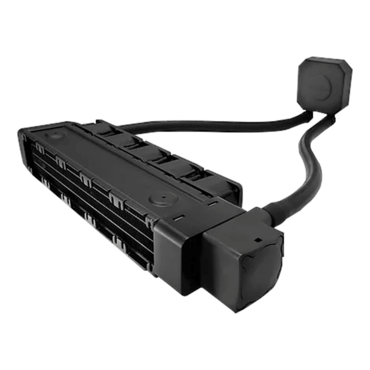

L25-1, Black, 278mm Radiator, Liquid Cooling System
Quantity:
- SKU: 15223276
- Manufacturer: DYNATRON
- MPN: L25-1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$76.37
L25-1, Black, 278mm Radiator, Liquid Cooling System
The Dynatron L25-1 CPU cooler is designed for L25-1 ( Multi-socket for 1U & Up with 5x4028mm fan)
The Dynatron L25-1 CPU cooler is designed for L25-1 ( Multi-socket for 1U & Up with 5x4028mm fan)
| CPU Support | Intel & AMD |
| CPU Socket | LGA 115X, LGA1700, LGA2011/2066 Square ILM AM2/AM3/AM4/AM5/FM1/FM2 |
| Screw Type | #6-32/M3/M4 |
| Installation Torque | 6-10 in-lb/5-7 in-lb/10-16 in-lb |
| Solution | 1U Server |
| Fan Dimension | 40 x 40 x 28 mm |

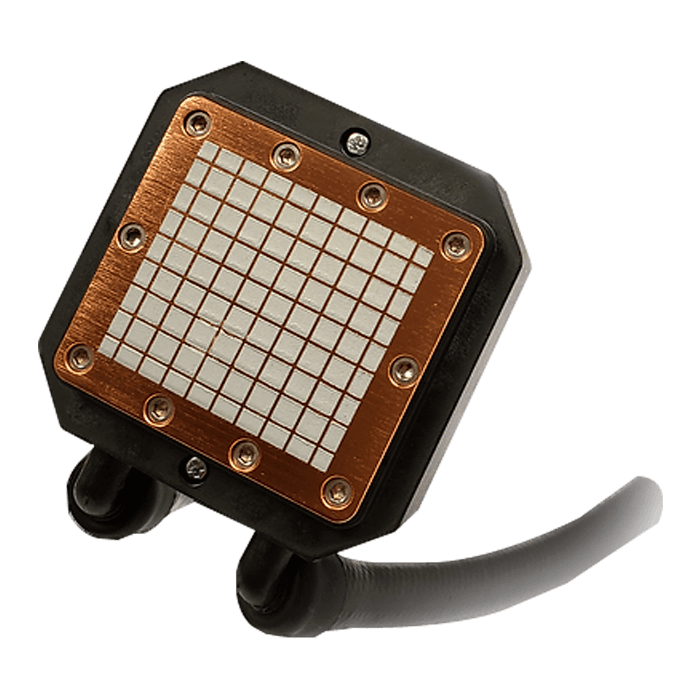

| Cold Plate Dimension | 64.5 x 64.5 x 23 mm |
| Radiator Dimension | 277.9 x 74.4 x 40 mm |
| Speed |
At Duty Cycle 0~20%: 3300±10% RPM At Duty Cycle 50%: 5700±10% RPM At Duty Cycle 100%: 12000±10% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 0~ 20%: 0.72 W At Duty Cycle 50%: 1.56 W At Duty Cycle 100%: 8.40 W |
| Noise Level |
At Duty Cycle 0~ 20%: 25.93 dBA At Duty Cycle 50%: 37.80 dBA At Duty Cycle 100%: 53.96 dBA |
| Air Flow |
At Duty Cycle 0~ 20%: 5.920 CFM At Duty Cycle 50%: 10.225 CFM At Duty Cycle 100%: 21.526 CFM |
| Air Pressure |
At Duty Cycle 0~ 20%: 1.733 mm-H2O At Duty Cycle 50%: 5.170 mm-H2O At Duty Cycle 100%: 22.912 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Tachometer/Signal output) Pin4- (PWM) |
| Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
