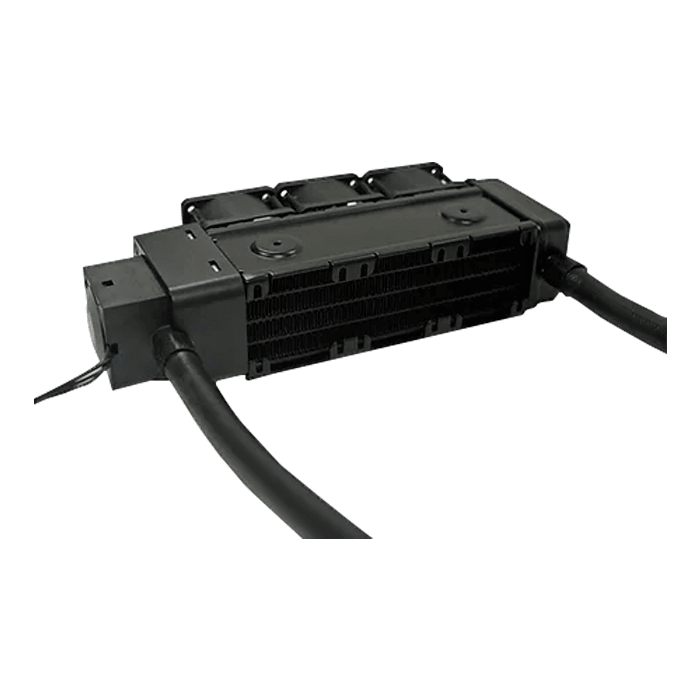

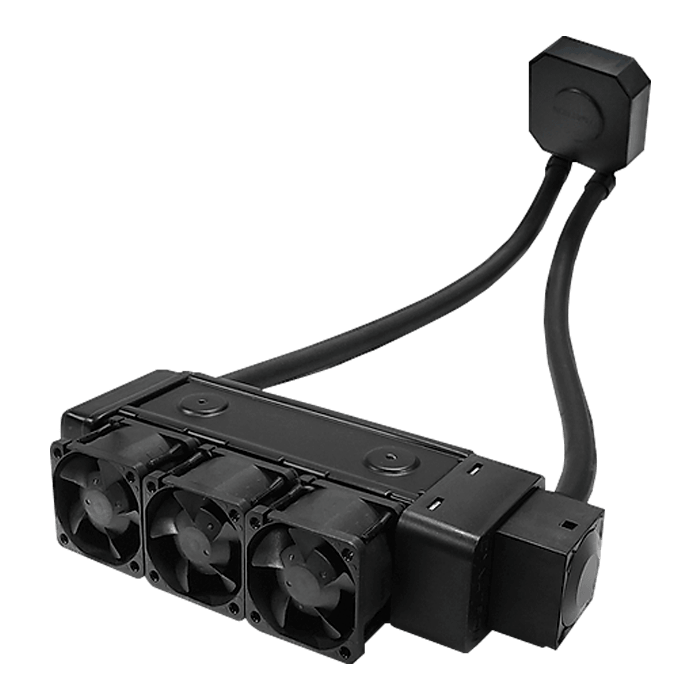

L3, Black, 188mm Radiator, Liquid Cooling System
Quantity:
- SKU: 16178805
- Manufacturer: DYNATRON
- MPN: L3
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$77.16
| CPU Support | Intel/AMD |
| CPU Socket | Intel Socket LGA 2011/2066 Square/LGA 115X/1200/1356/1366/1700 AMD AM4/AM5/FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1 |
| Screw Type | #6-32/M3/M4 |
| Installation Torque | 6-10 in-lb/5-7 in-lb/10-16 in-lb |
| Solution | 1U Server |
| Fan Dimension | 40 x 40 x 28 mm |
| Cold Plate Dimension | 64.5 x 64.5 x 23.5 mm |
| Radiator Dimension | 188 x 74 x 40 mm |
| Speed |
At Duty Cycle 0~20%: 3300±10% RPM At Duty Cycle 50%: 5700±10% RPM At Duty Cycle 100%: 12000±10% RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12V |
| Power |
At Duty Cycle 0~20%: 0.72 W At Duty Cycle 50%: 1.56 W At Duty Cycle 100%: 8.40 W |
| Noise Level |
At Duty Cycle 20%: 25.9 dBA At Duty Cycle 50%: 37.8 dBA At Duty Cycle 100%: 54.0 dBA |
| Air Flow |
At Duty Cycle 0~20%: 5.92 CFM At Duty Cycle 50%: 10.23 CFM At Duty Cycle 100%: 21.53 CFM |
| Air Pressure |
At Duty Cycle 0~20%: 1.73 mm-H2O At Duty Cycle 50%: 5.17 mm-H2O At Duty Cycle 100%: 22.91 mm-H2O |
| Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
| Water Pump | Stand-alone Water Pump with Powerful Flow Rate 1.7 Liter Per Minute |
| Radiator | Space Saver Light Weight Radiator |
| Cold Plate | Cold Plate Module with Copper Base |
| Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
