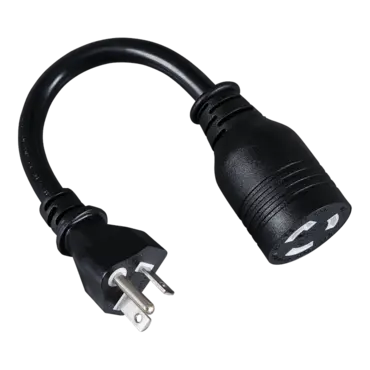

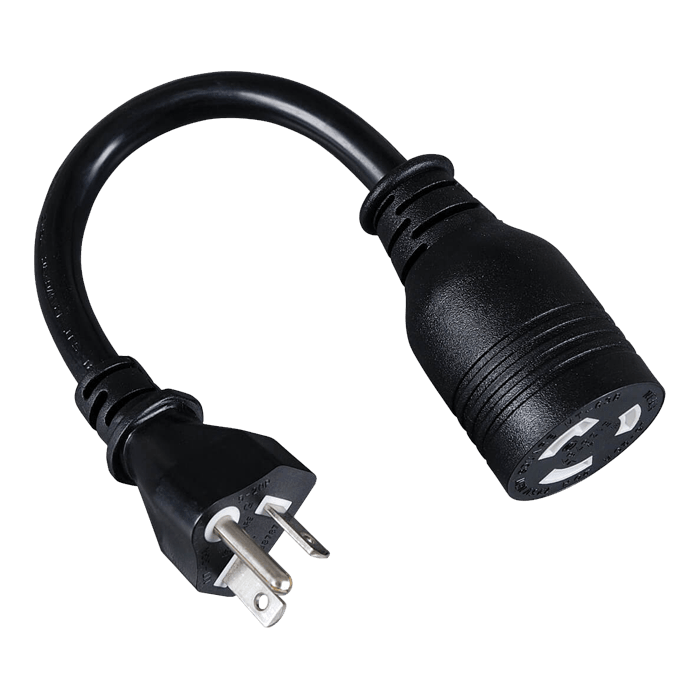

L5-20R to 5-20P Heavy-Duty Power Adapter - 20A, 120V, 12 AWG, 6 in, Black
Quantity:
- SKU: 864287
- Manufacturer: TRIPP LITE
- MPN: P044-06I
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$17.73
L5-20R to 5-20P Heavy-Duty Power Adapter - 20A, 120V, 12 AWG, 6 in, Black
Heavy-Duty Power Adapter Connects Devices That Require a Heavy-Gauge Connection
This heavy-duty adapter features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. The six-inch power adapter transforms a NEMA 5-15/20R straight-blade outlet into a locking L5-20R outlet. It is also a recommended replacement or upgrade of a standard power cord provided by the device’s manufacturer.
Locking L5-20R Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking NEMA L5-20R connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking adapter is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.
- 6 in. adapter allows easy transition to L5-20R outlet with no electrician needed
- Heavy-duty cable replaces or upgrades standard power cord provided by manufacturer
- Thick 12 AWG wire gauge manages high power levels required for larger equipment
- Locking connector maintains secure link to avoid loss of power and costly downtime
| VERVIEW | |
|---|---|
| UPC Code | 037332139115 |
| Country/Region | North America |
| INPUT | |
| Maximum Input Amps | 20 |
| Cable Length (ft.) | 0.5 |
| Cable Length (in.) | 6 |
| Voltage Compatibility (VAC) | 120 |
| Cable Length (cm) | 15.24 |
| PHYSICAL | |
| Power Cord Jacket Type | SJT |
| Wire Gauge (AWG) | 12 |
| Shipping Dimensions (hwd / in.) | 10.00 x 7.00 x 0.10 |
| Shipping Weight (lbs.) | 0.40 |
| Color | Black |
| Number of Conductors | 3 |
| CONNECTIONS | |
| Side A - Connector 1 | NEMA 5-20P |
| Side B - Connector 1 | NEMA L5-20R |
| SPECIAL FEATURES | |
| High Voltage | No |
| Heavy-Duty | Yes |
| Locking Plug | Yes |
| WARRANTY | |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
