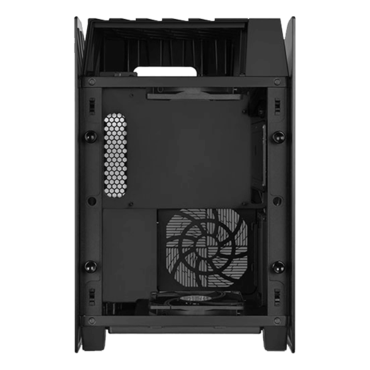

LD03B-AF (Airflow), Tempered Glass, No PSU, Mini-ITX, Black, Mini Cube Case

SKU: 13538291

Manufacturer: SILVERSTONE

MPN: SST-LD03B-AF

Availability: Unknown


Price: $148.34
or as low as $5/month
Quantity:

Silverstone LD03B-AF (Airflow) (SST-LD03B-AF). Enhanced GPU cooling efficiency. Retaining the great CPU and system cooling performance of the original, the LD03-AF adds an air inlet cutout to the left tempered glass panel for enhanced air cooling capacity to most high-end graphics cards on the market.

  • Tinted tempered glass panels for reserved or expressive styling
  • Air inlet cutout on left tempered glass for increased GPU cooling capacity
  • Super mini footprint design with no cables and vents on four sides for excellent integration into any computing environment
  • Includes two 120mm fans for excellent airflow and supports up to two 120mm radiators
  • Supports 2.5" and 3.5" drives
  • Mini-DTX / Mini-ITX motherboard & SFX / SFX-L PSU compatible
  • Supports full size CPU cooler and graphics cards
Model No. SST-LD03B-AF (Black, Airflow version)
Material Tempered glass panels, steel body
Motherboard Mini-DTX, Mini-ITX
Drive bay External --
Internal 3.5" x 1 (compatible with 2.5"), 2.5" x 1
Cooling system Front --
Rear --
Side --
Top 1 x 120mm fan (120mm fan x 1 included)
Bottom 1 x 120mm fan (120mm fan x 1 included)
Internal --
Expansion slot 2
Front I/O port USB Type-C x 1
USB 3.0 x 1
Audio x 1
MIC x 1
Power supply SFX & SFX-L
Expansion card Compatible up to 12.1" (309mm) long, width restriction 6.59" (167mm)*
Limitation of CPU cooler 190mm
Net weight 5.22kg
Dimension 265mm (W) x 414mm (H) x 230mm (D), 25.2 Liters
10.43" (W) x 16.3" (H) x 9.06" (D), 25.2 Liters
Remark * Maximum length and width limits are independent limitations. An actual card that hits both limits cannot be fitted. Please refer to manual for additional information.
