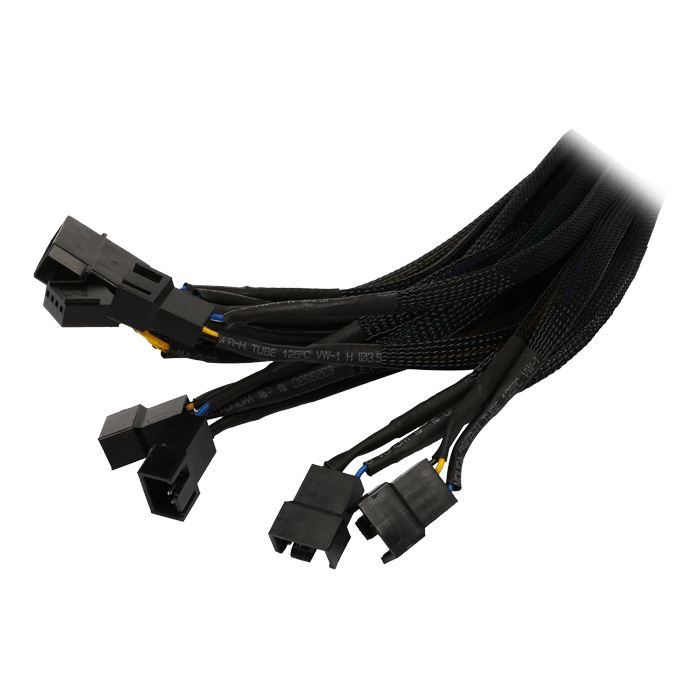

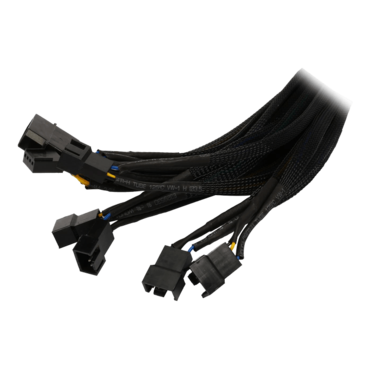

LP45TX4-18 Sleeved 18 inch 4-pin Molex LP4 to Five(5) x 4-pin TX4 PWM Fan

Quantity:
  • SKU: 11402573
  • Manufacturer: Coboc
  • MPN: LP45TX4-18
  • Availability: IN STOCK
Starting At
$5.85
Quantity:
  • 18" LP4 to PWM Fan Converter Cable
  • 26AWG Tinned Copper
  • LP4 Male to 5 x TX4 Male w/ RPM Feedback
  • Black Sleeved Jacket
Model
Brand Coboc
Model LP45TX4-18
Color black sleeved cable
Details
Length 18"
Connector Number 7
Connector Detail Connector A: 1 - 5.25" Molex 4 pin LP4 Male(pins:P1- 5 wries of 12V,P2- 5 wries of GND)
Connector B: 1 - TX4 4-pin Female for RPM feedback -Connect to motherboard (pins:P1- 5 wries of PWM, P2- 1 wire of tach)
1- TX4 4-pin Male
4 - TX4 4-pin Male (3 wires only,missing the pin of tach)
Specifications Color :black sleeved cable
Wire Gauge: 26AWG Tinned Copper - UL1007 Wire
Cable Length: 18 inch
Connector A: 1 - 5.25" Molex 4 pin LP4 Male(pins:P1- 5 wries of 12V,P2- 5 wries of GND)
Connector B: 1 - TX4 4-pin Female for RPM feedback -Connect to motherboard (pins:P1- 5 wries of PWM, P2- 1 wire of tach)
1- TX4 4-pin Male
4 - TX4 4-pin Male (3 wires only,missing the pin of tach)
Voltage:12V DC
Features
Features Power from PSU Molex 4-pin LP4,supporting five PWM fans from a single motherboard header
Four of five male TX4 connectors are missing the pins of tachometric signal,ensure your fan speed monitor won't bounce all over the place from getting five sense signals.Guarantee motherboard getting an accurate RPM signal.
Only one of the five fans sends its tach signal (the one with full 4-pin connector) reports its RPM, but the others will still follow the PWM signal.
TX4 4-pin female connect to motherboard for RPM feedback,allowing all fan speed to be synchronized with CPU load
Compatible with 4pin PMW fan connector and 3pin fan connector
Power from PSU 12V DC only,do not utilize for 5V DC fan
Sleeved in a black is enhanced cable management,enclosure to provide a sleeker look that seamlessly integrates into the case's interior
