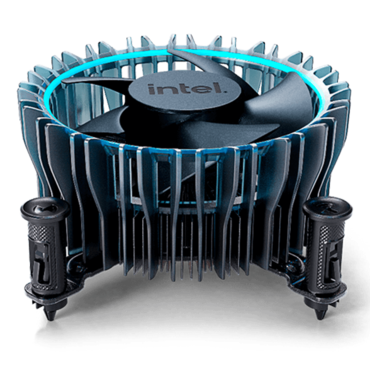

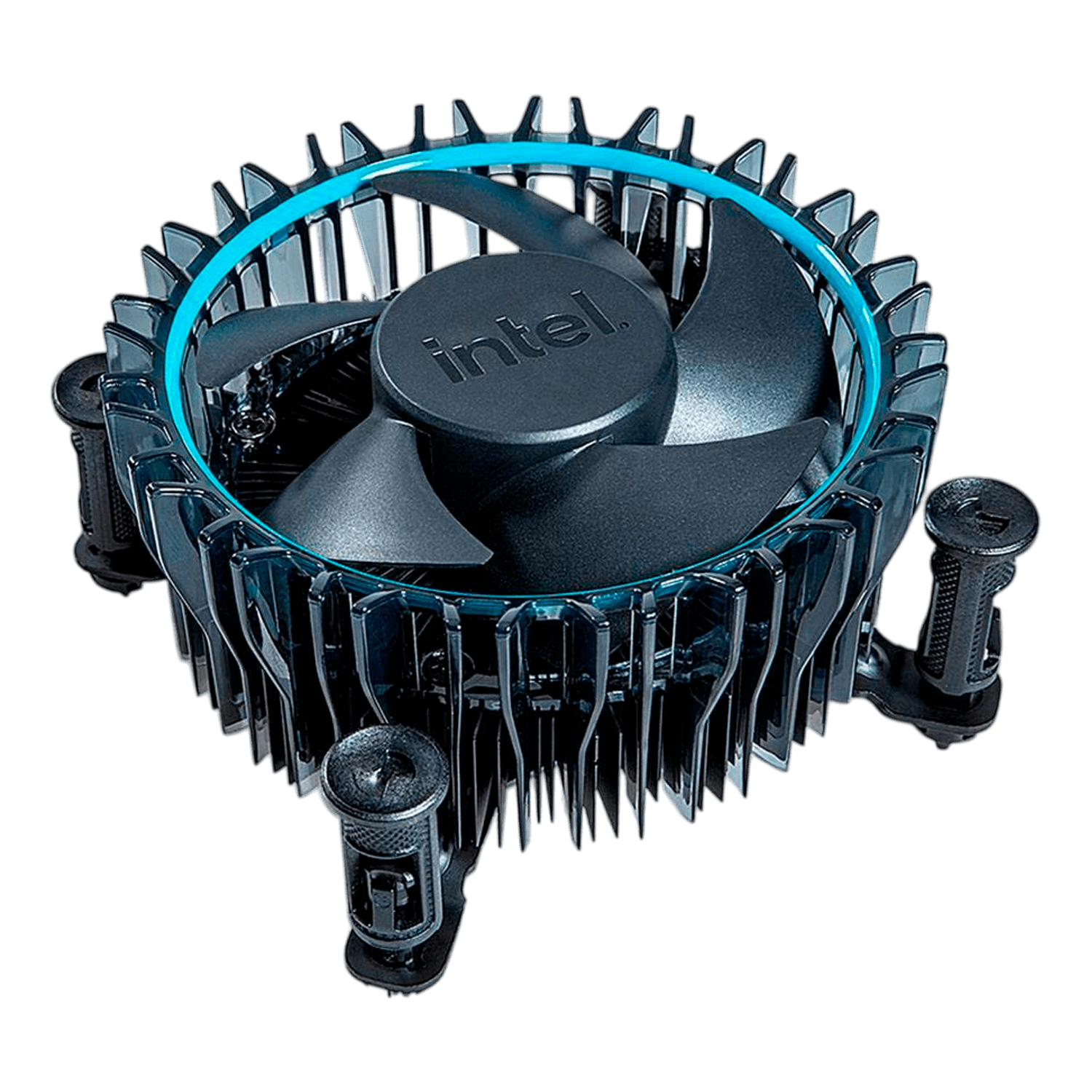

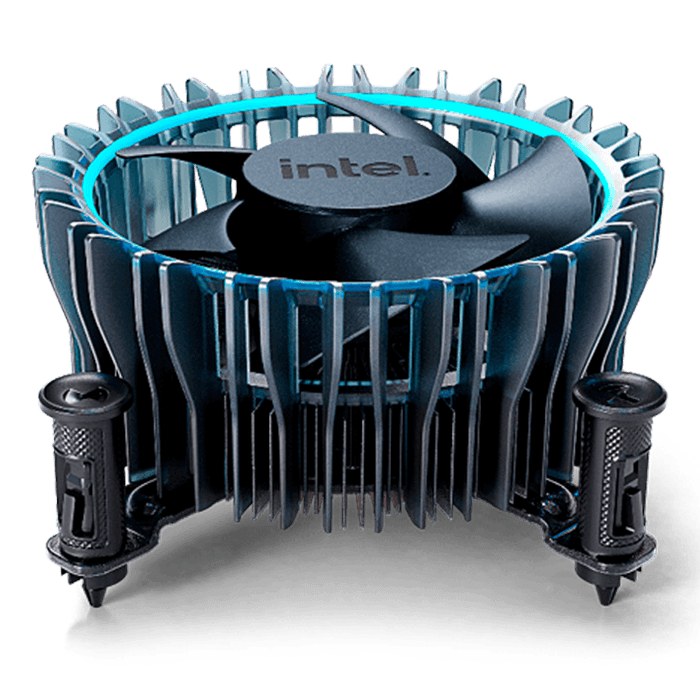

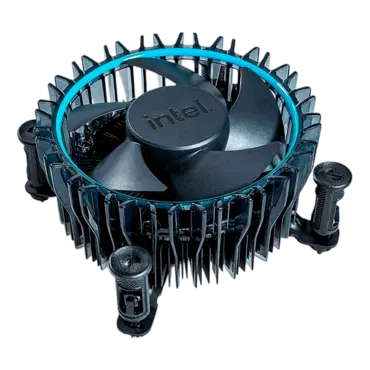

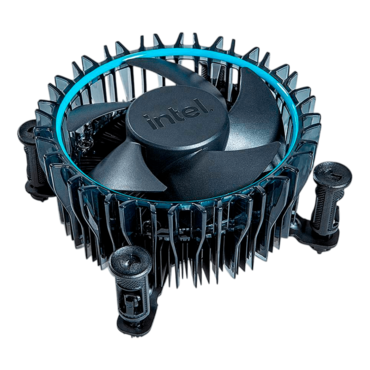

Laminar RM1, 47mm Height, 65W TDP, Copper/Aluminum CPU Cooler
- SKU: 18727002
- Manufacturer: INTEL
- MPN: M23901-001
- Availability: LOW STOCK
Price
$19.99
- Standard size
- 3.9 BA Quiet Performance
- Intel Validated Compatibility
- Three-year Limited Warranty
| Overall Height | Up to 47mm (top of fan to bottom of heatsink) |
| Overall Size | Up to 100mm x 100mm |
| Mass | Up to 350g |
| Sound Power Level | 3.9 BA (2400 RPM, 40C inlet, 65W); 4.6 BA (max RPM) |
| Sound Pressure Level | 29 dBA (2400 RPM, 40C inlet, 65W) |
| TDP Support | Up to 65W (12th Gen Intel® Core™ Desktop Processors) |
| Fan Type | PWM controlled variable speed fan |
| Connector Type | 4-pin |
| Operating Voltage | 13.2V max, 12.0V rated, 10.8V min |
| Current (peak) | Up to 400mA |
| Max RPM (+/- 5%) | Up to 3150 RPM |
| Min RPM (+/- 20%) | 600 RPM |
| Operating Temp | 0 to 70C |
| Operating Humidity | 85% relative humidity @ 55C |
| Fan Protection | Locked-rotor/polarity protected |
| Sense Frequency | 2 pulses/Rev, 12V pull-up with 10Kohm |
| PWM Frequency | 25KHz +/- 5KHz |
| PWM Pull-up Voltage | 5.25V max |
| PWM Duty Cycle Range | 0–100% |
| Heatsink fin material | Aluminum |
| Heatsink base/core material | Copper |
