Leadex Platinum SE V2, 80 PLUS Platinum 1000W, White, Fully Modular, ATX Power Supply
- SKU: 16106642
- Manufacturer: Super Flower
- MPN: SF-1000F14MP V2 (WH)
- Availability: TEMPORARILY OUT OF STOCK
Price
$137.16
- ATX12V / EPS12V
- Full Modular
- 80 PLUS PLATINUM Certified
- All Flat Ribbon Cables For Flexible Cable Routing
- +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected]
| General | |
| Brand | Super Flower |
| Series | Leadex Platinum SE |
| Details | |
| Color | White |
| Type | ATX12V / EPS12V |
| Maximum Power | 1000 W |
| Fans | 1 |
| Fan LED | 1 x 140mm Dual Ball Bearing Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 10 |
| SLI | SLI Ready |
| Haswell Support | Ready |
| CrossFire | CrossFire Ready |
| Max PSU Length | 180 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 17ms min. |
| Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15A |
| Output | +3.3V@20A, +5V@20A, [email protected], [email protected]. [email protected] |
| MTBF | >100,000 Hours |
| Approvals | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / EAC |

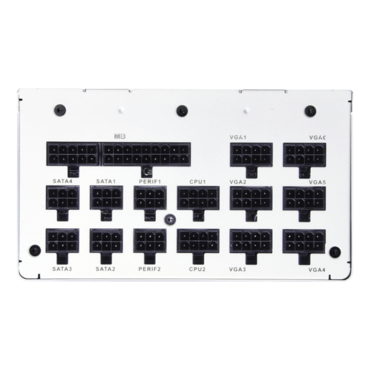

| Connectors | 1 x 24 pin (20+4) ATX 2 x 8 pin (4+4) EPS (CPU) 8 x 8 pin (6+2) PCIe 10 x SATA 5 x 4 pin Peripheral 1 x Floppy |
| Cable Spec | 20+4Pin MB: One cable (600mm) 4+4Pin CPU: Two cables (750mm) PCI-E 6+2Pin: Four cables (750mm) SLI (2 x PCI 6+2Pin): Two cables (750+150mm) 3 x SATA: Two cables (550+100+100mm) 2 x SATA: Two cables (550+100mm) 3 x Molex: One cable (550+100+100mm) 2 x Molex + 1 x FDD: One cable (550+100+100mm) |
| Dimension & Weight | |
| Dimensions | 3.39 x 5.91 x 7.09 |
| Details | |
| Type | ATX 12V / EPS 12V |
| Energy-Efficient | 80 PLUS PLATINUM CERTIFIED |
| Input | |
| Input Voltage | 100 - 240 V |
| Frequency Range | 50/60 Hz |
| Output | |
| +3.3V Max. Current | 20A |
| +5V Max. Current | 20A |
| +12V1 Max. Current | 83.3A |
| +5VSB Max. Current | 2.5A |
| Connectors | |
| Main Connector | 20+4 Pin |
| PCI-Express Connector | 8 x 6+2 Pin |
| SATA Power Connector | 10 |
| Fans | |
| Rear Fans Size | 140mm |
| Rear Fans Bearing Type | 2 Ball |
| Protection | |
| Over Voltage Protection | Yes |
| Over Load Protection | Yes |
| Short Circuit Protection | Yes |
| Under Voltage Protection | Yes |
| Over Current Protection | Yes |
| Over Power Protection | Yes |
| Over Temperature Protection | Yes |
