Leadex Platinum SE V2, 80 PLUS Platinum 1000W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13841143
- Manufacturer: Super Flower
- MPN: SF-1000F14MP V2
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$137.16
| Model | |
| Brand | Super Flower |
| Series | Leadex Platinum SE |
| Model | SF-1000F14MP V2 |
| Details | |
| Type | ATX12V / EPS12V |
| Maximum Power | 1000W |
| Fans | 1 x 140mm Dual Ball Bearing Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 12 |
| SLI | SLI Ready |
| Haswell Support | Ready |
| CrossFire | CrossFire Ready |
| Modular | Full Modular |
| Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15A |
| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected] |
| Approvals | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS/ EAC |
| Dimensions | 3.39" x 5.91" x 7.09" |
| Max PSU Length | 180 mm |
| Features | |

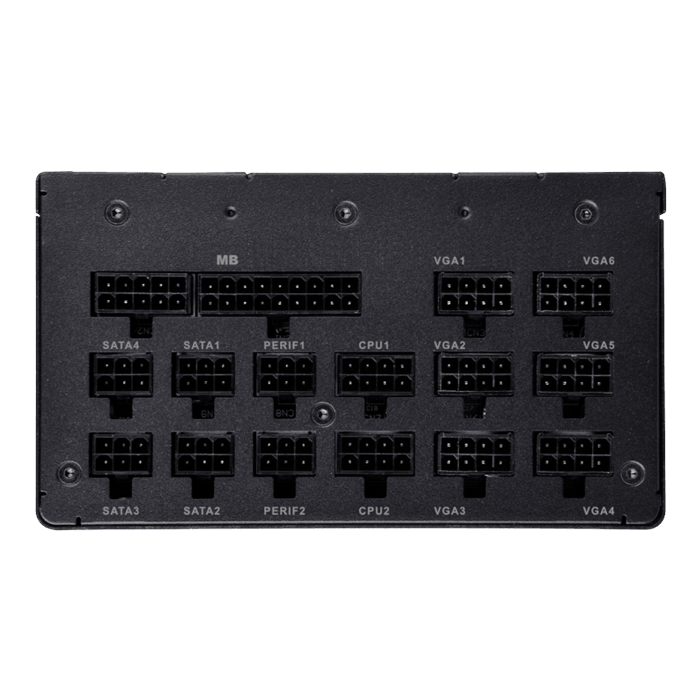

| Connectors |
1 x 20+4Pin ATX 2 x 8 (4+4)-Pin CPU 6 x PCI-E 6+2Pin 2 x SLI (PCI 6 Pin) 10 x SATA 5 x Four-Pin Peripheral 1 x Floppy |
| Features |
100% Full Modular Cabling Design For Easy Cable Management. 80 PLUS Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load. Full Range Auto Voltage Detection Design 100V~240V (Active PFC). Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification. Comply With Energy Star Standard & EuP (Energy Using Products) Regulation. Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection. Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards. Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card. 100% Japanese 105°C Capacitors. Ultra Silent 140mm Dual Ball Bearing Fan. More than 2,000 times On/Off test. Unleaded Green Materials with RoHS/WEEE Compliance. Perfect For Professional & High Performance Gaming System. Exclusive Patents (Taiwan & China Patents approved. USA, Germany & Japan Patent Pending) |
