| Model No.: |
SF- 1000F14XP(BK) |
| Transform Efficiency |
20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency |
| Cybernetics Certified |
Efficiency: Platinum / Efficiency 230V: Platinum |
| Intel Power Design Guide |
EPS Ver. 2.92 & ATX 3.1 |
| AC Input | Frequency |
100V-240V | 60 / 50Hz , Full Range APFC |

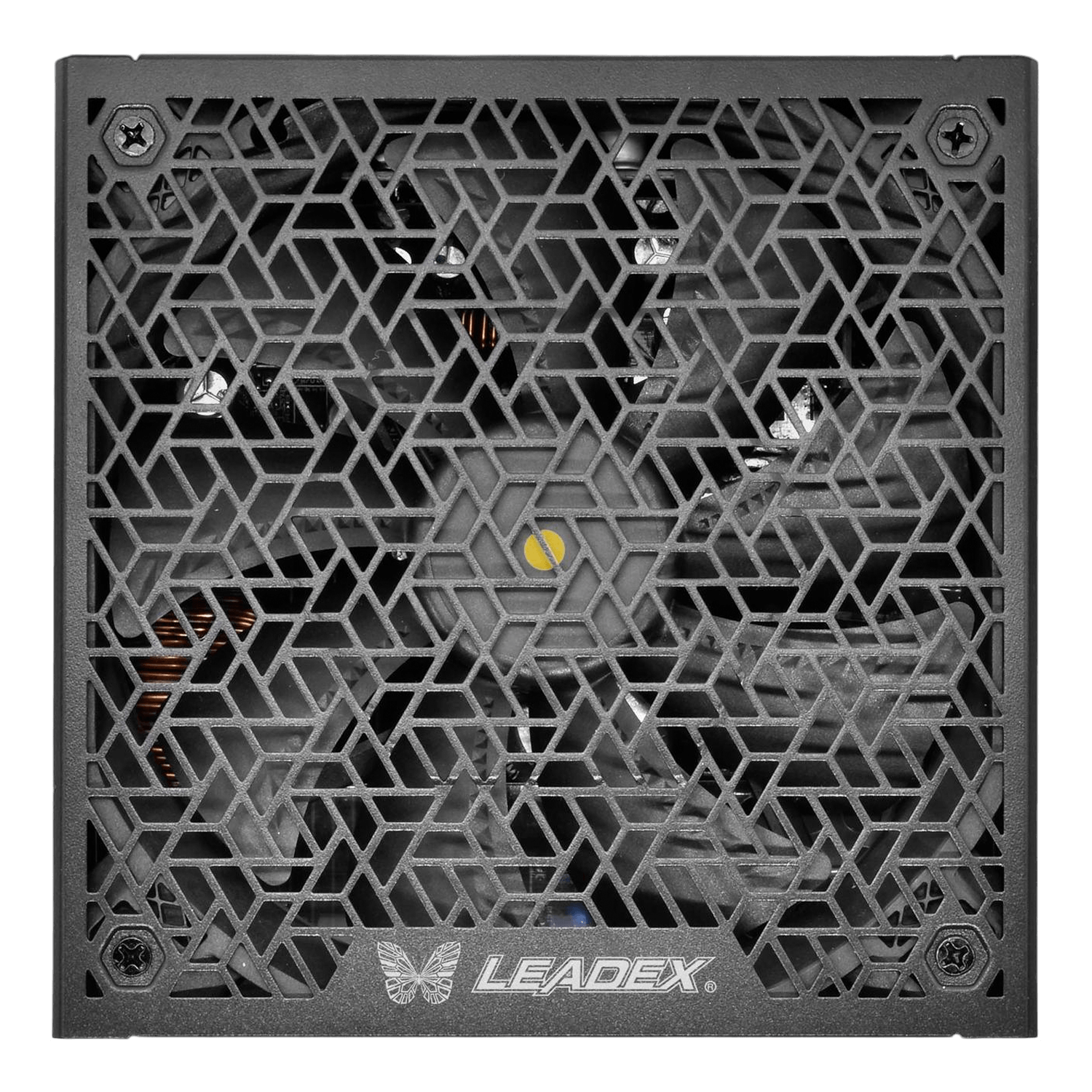

| Fan Size |
14cm FDB FAN |
| Dimension |
150mm(L) x 150mm(W) x 86mm(H) |
| Protection |
OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
| Safety Certificates |
cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
| Temperature |
Passed 50°C Hot Testing |

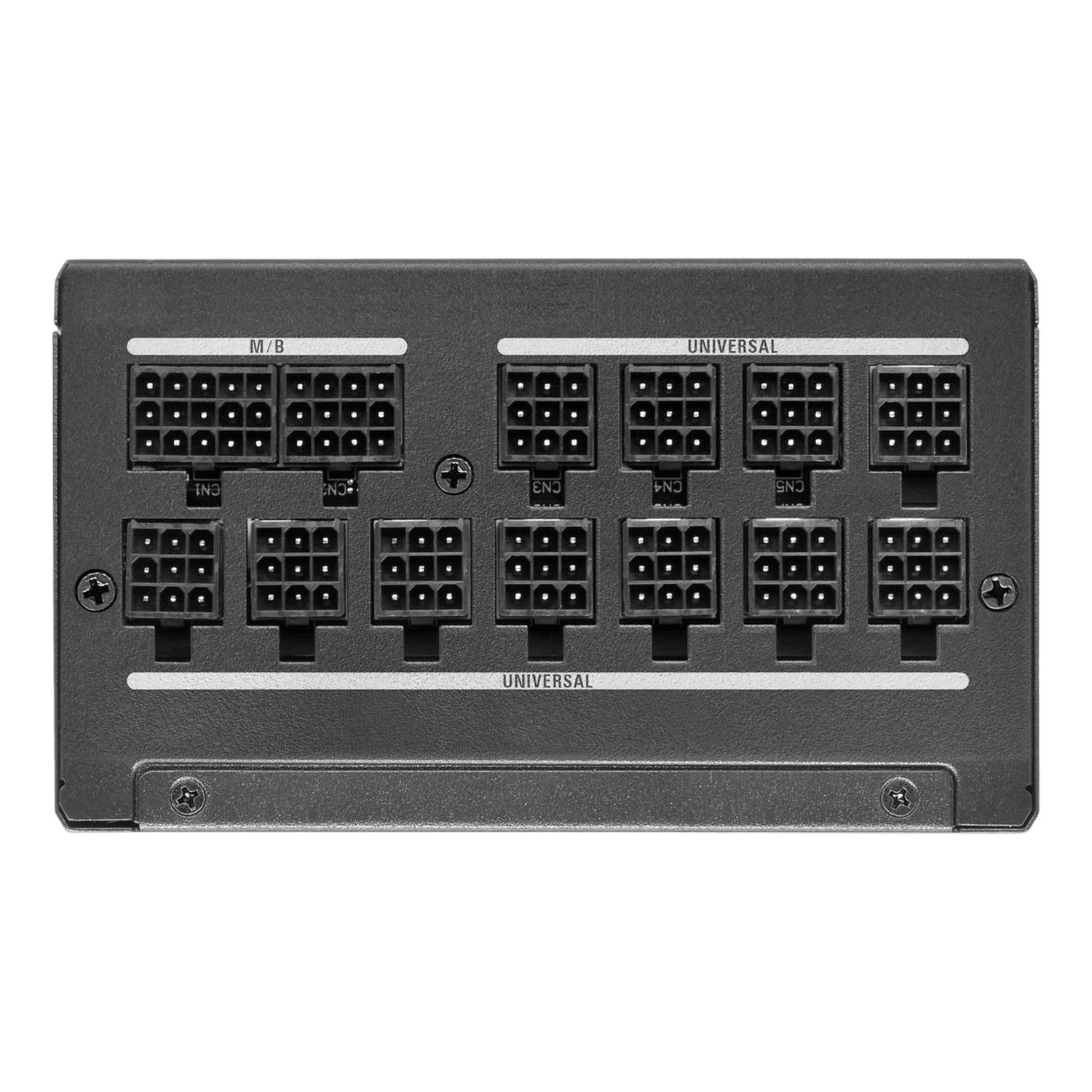

| Cable Wires |
| 20+4 Pin |
Detachable |
One Cable (600mm) |
| 8(4+4) Pin CPU |
Two Cables (700mm) |
| PCI 6+2 Pin |
Four Cables (700mm) |
| 4 SATA |
Three Cables (550+130+130+130mm) |
| 4 Molex |
One Cable (550+150+150+150mm) |
| PCIe 12+4 Pin |
One Cable (700mm) |

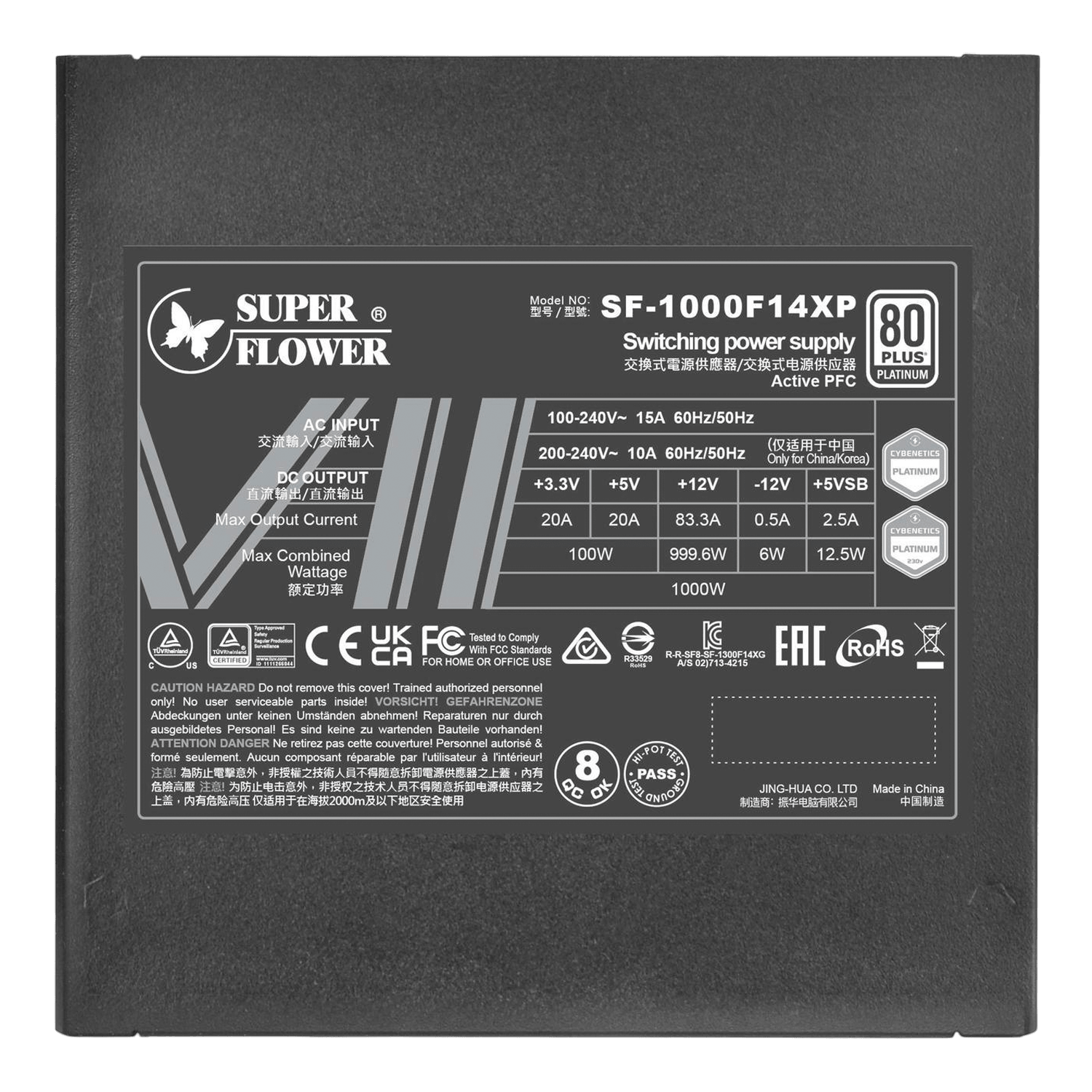

| model no.: SF-1000F14XP |
| AC INPUT |
100-240V~ 15A 60Hz/50Hz |
| 200-240V~ 10A 60Hz/50Hz (Only for China/Korea) |
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| 1000W |
Max Output Current |
20A |
20A |
83.3A |
0.5A |
2.5A |
| Max Combined Wattage |
100W |
999.6W |
6W |
12.5W |
| 1000W |
