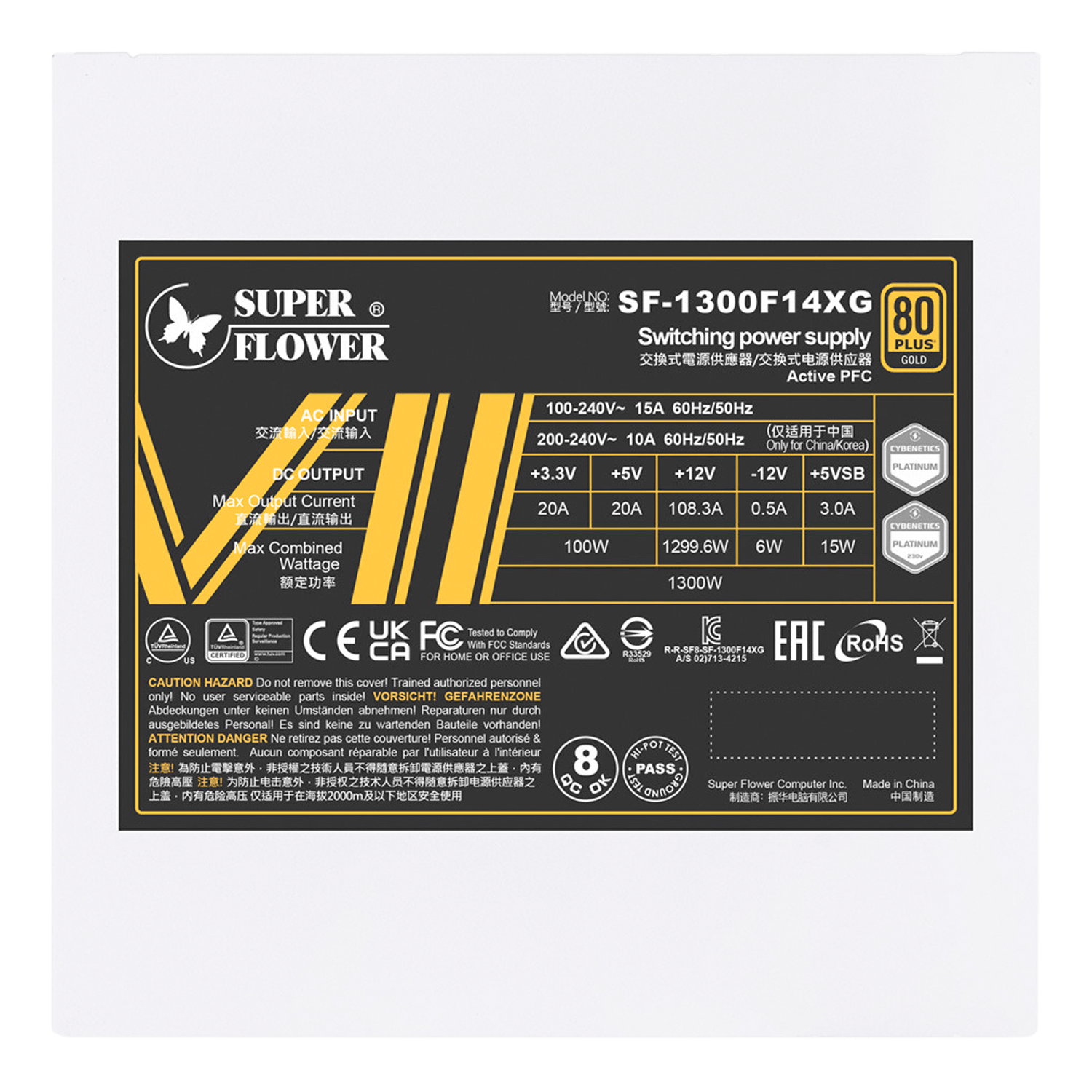

| Model No.: |

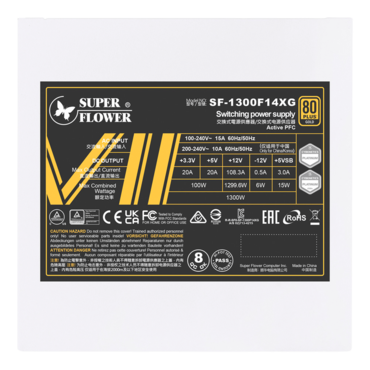

SF- 1300F14XG(WH) |
| Transform Efficiency |
20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) Efficiency |
| Cybernetics Certified |
Efficiency: Platinum / Efficiency 230V: Platinum |
| Intel Power Design Guide |
EPS Ver. 2.92 & ATX 3.1 |
| AC Input | Frequency |
100V-240V | 60 / 50Hz , Full Range APFC |

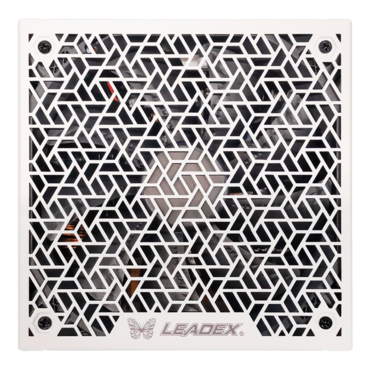

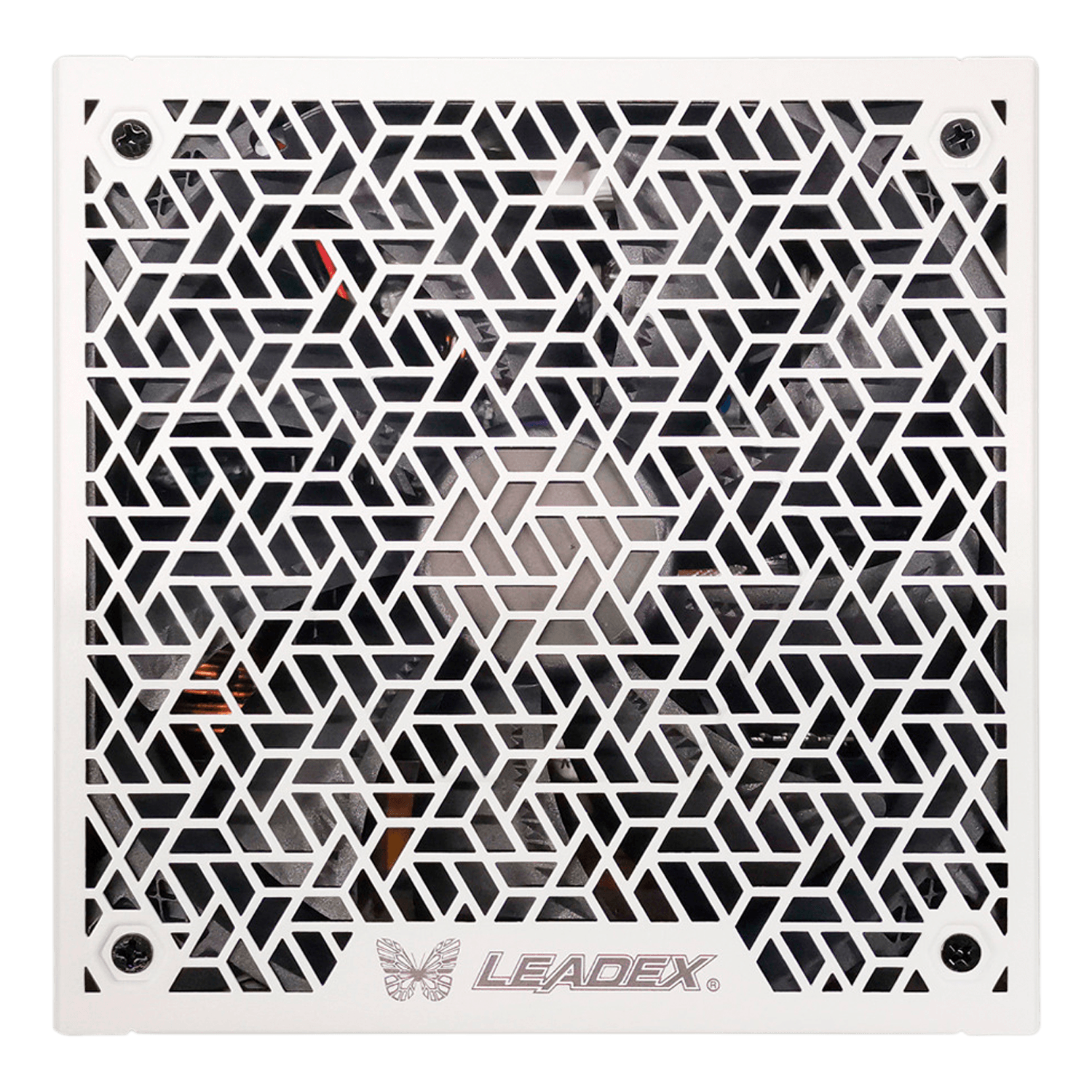

| Fan Size |
14cm FDB FAN |
| Dimension |
150mm(L) x 150mm(W) x 86mm(H) |
| Protection |
OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
| Safety Certificates |
cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
| Temperature |
Passed 50? Hot Testing |

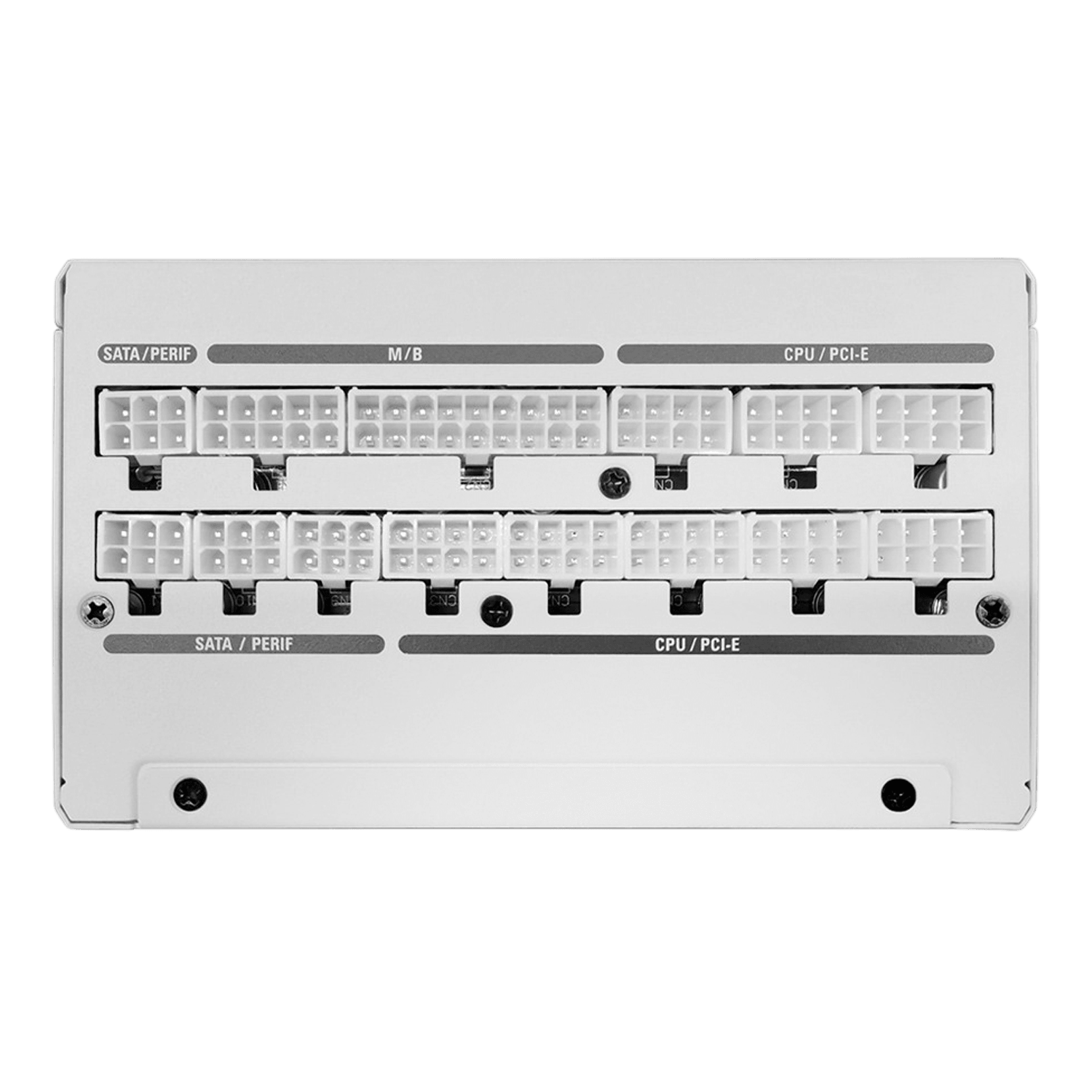

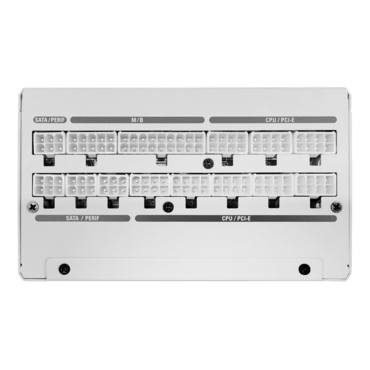

| Cable Wires |
| 20+4 Pin |
Detachable |
One Cable (600mm) |
| 8(4+4) Pin CPU |
Two Cables (700mm) |
| PCI 6+2 Pin |
Four Cables (700mm) |
| 4 SATA |
Three Cables (550+130+130+130mm) |
| 4 Molex |
One Cable (550+150+150+150mm) |
| PCIe 16 Pin |
One Cable (700mm) |
