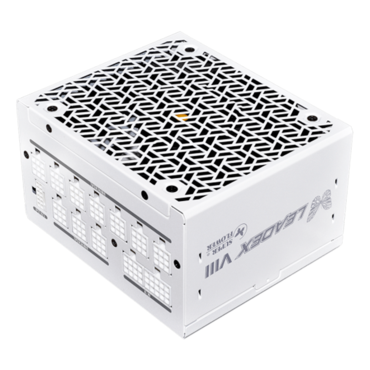

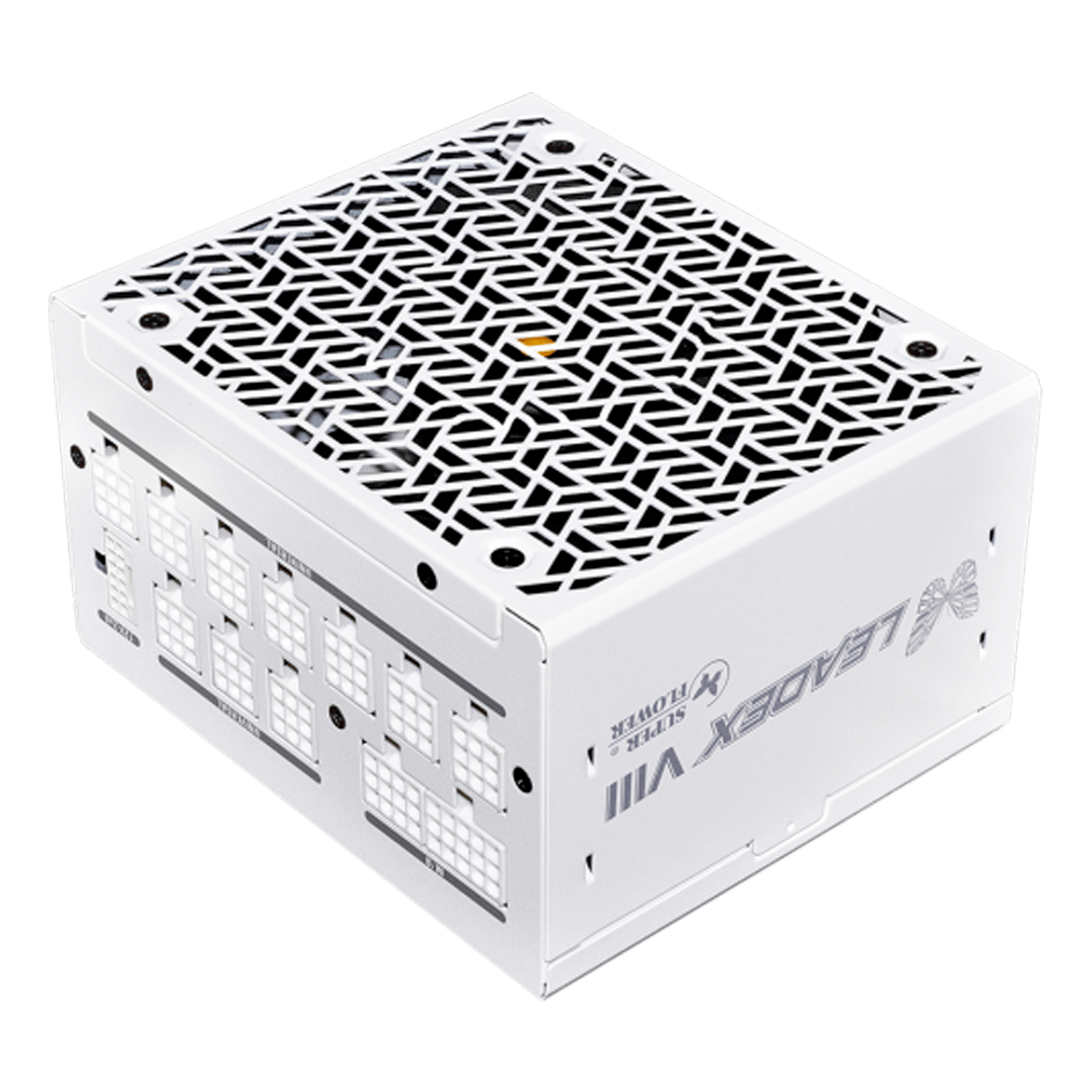

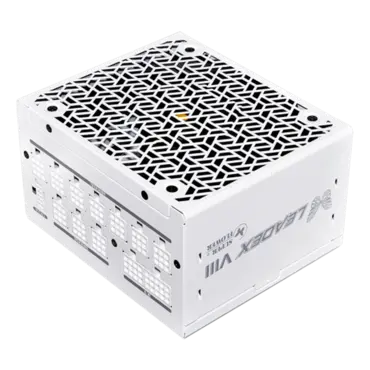

Leadex VIII Platinum PRO White, 80 PLUS Platinum 850W, ECO Mode, Fully Modular, ATX Power Supply
- SKU: 20346760
- Manufacturer: Super Flower
- MPN: SF-850F14SP(WH)
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Leadex VIII Platinum PRO White, 80 PLUS Platinum 850W, ECO Mode, Fully Modular, ATX Power Supply
SUPER FLOWER Leadex VIII Platinum PRO White (SF-850F14SP(WH)). Complying with the ATX 3.1 standard, the series utilizes a native 12V-2x6 cable that delivers stable and efficient power directly to the latest GPUs. The native connection minimizes resistance and improves safety compared to adapter-based solutions.
- Length : 125mm
- ATX 3.1 & PCIe 5.1(Native 12V-2x6 Cable)
- Full modular design
- Cybenetics Platinum Certified

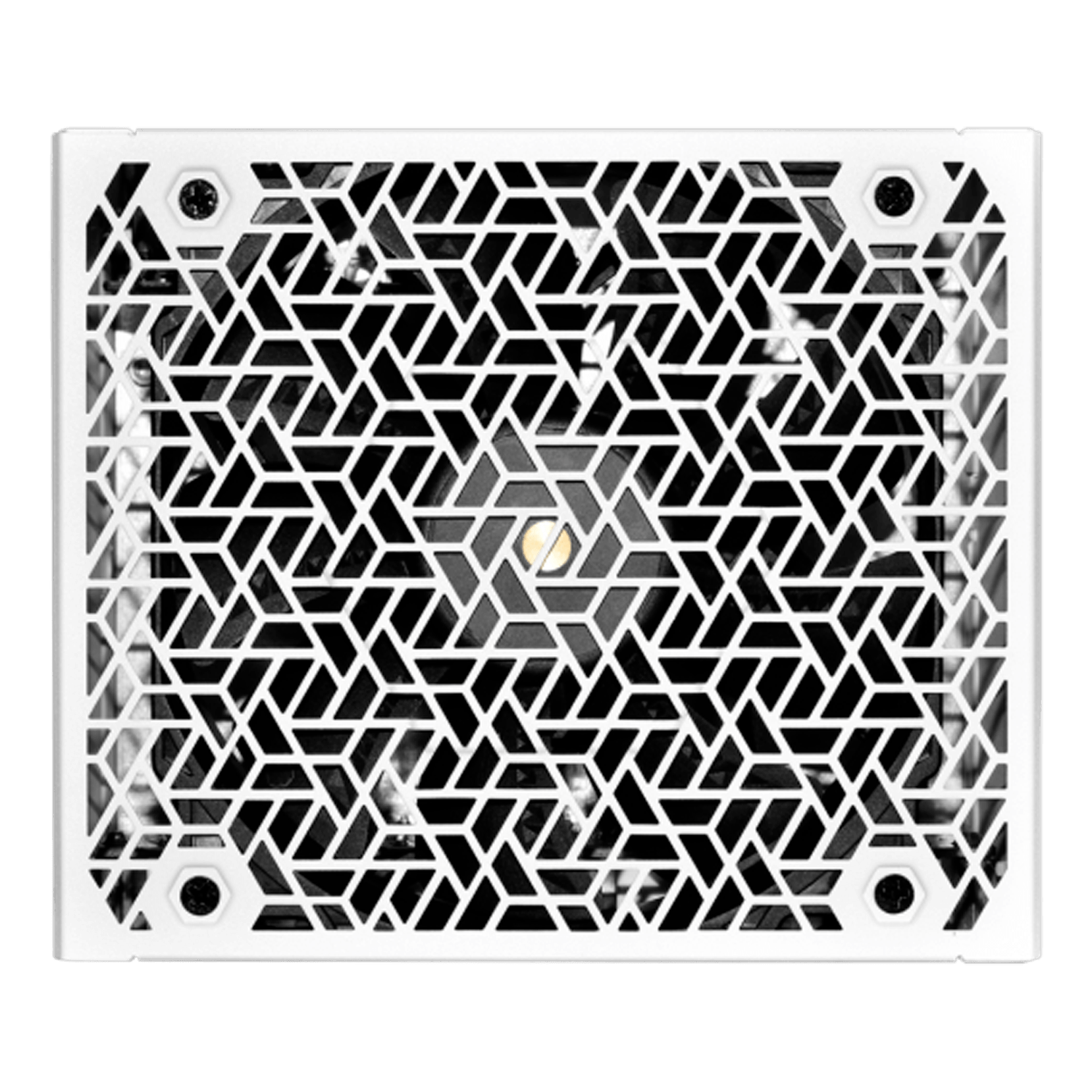

- 120mm Fluid Dynamic Bearing Fan
- Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
- 100% Japanese 105°C Capacitors

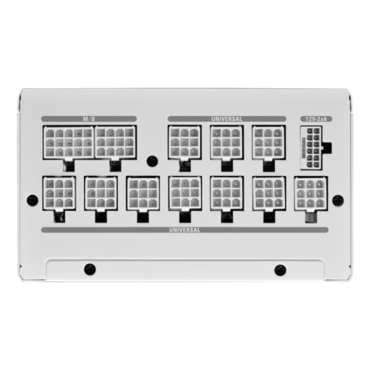

- Universal 9-pin terminal
- Modern Standby Compatible
- Zero RPM with fan ECO Mode
| Technical Specifications | |||||
| Model No. | SF-850F14SP(WH) | ||||
| WATTAGE | 850W | ||||
| 80PLUS® | |||||
| Cybenetics Efficiency Level |
• Platinum ≥ 89% ~ <91% overall efficiency (115V) • Platinum ≥ 91% ~ <93% overall efficiency (230V) |
||||
| Cybenetics Noise Level | |||||
| Intel Power Design Guide | EPS 12V v2.92 , ATX 3.1 | ||||
| CPU Compatibility | Support All Intel / AMD Multi-Core CPU & ATX / BTX / BTF Compatible Motherboards | ||||
| Dimensions | 125mm(D) x 150mm(W) x 86mm(H) | ||||
| Fan Information | Fan Size | 120mm FAN | |||
| Fan Bearing | Ultra Silent F.D.B. FAN | ||||
| Electrical Features | Frequency | 60 / 50Hz | |||
| PFC TYPE | Full Range APFC | ||||
| AC Input | 100V~240V | ||||
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / SIP / LVP | ||||
| Operating Temperature | Passed 50C Hot Testing | ||||
| Cable Information | Modularity | Fully Modular | |||
| Cable type | Ultra-Flexible Modular Cables | ||||
| Safety and Environmental | Safety and EMC | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / RoHS / KCC / EAC / CCC | |||
| Environmental Compliance | Comply With Energy Star Standard & EuP (Energy Using Products) Regulation | ||||

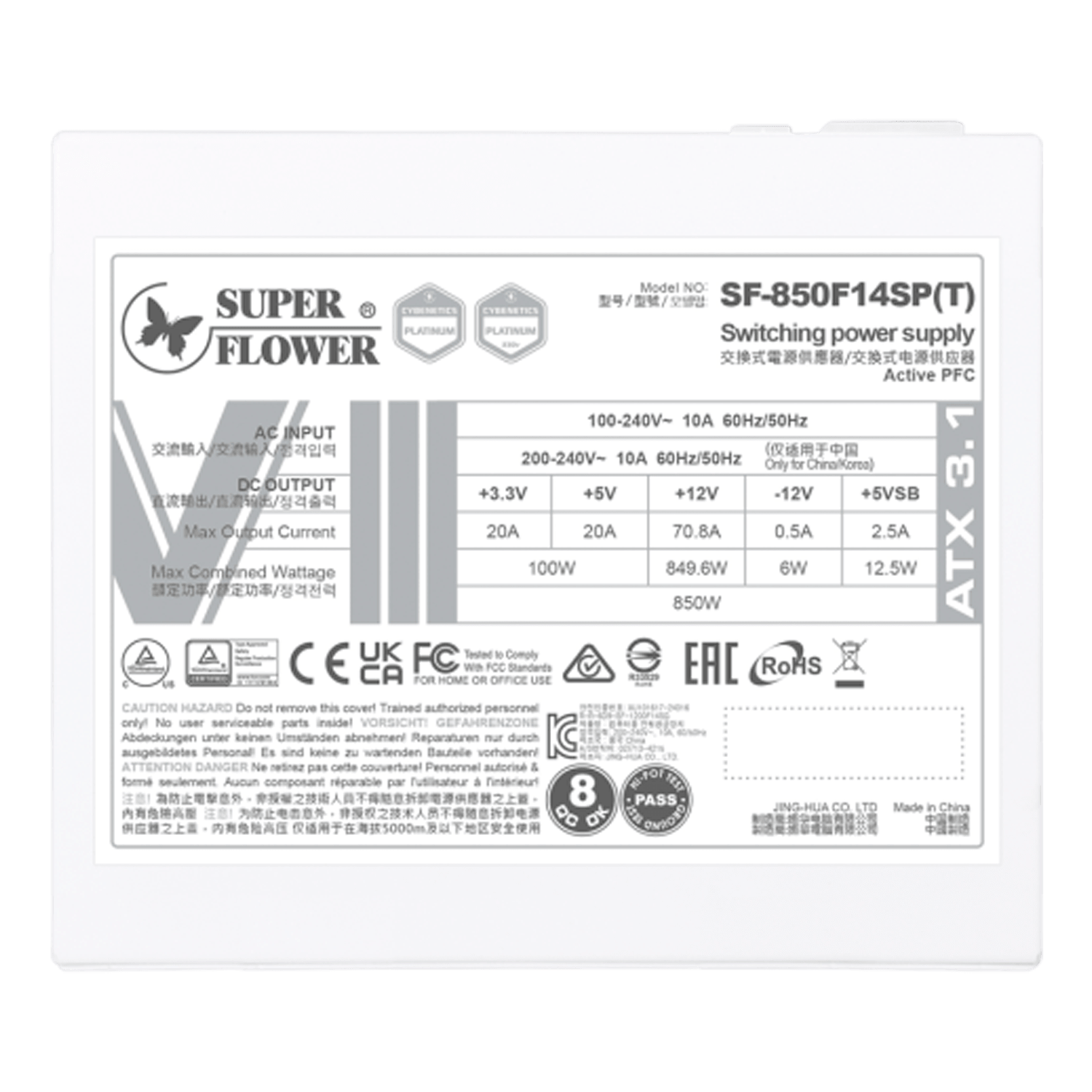

| Power Output | |||||
| model no.: SF-850F14SP(WH) | |||||
| AC INPUT | 100-240V~ 10A 60Hz/50Hz | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 20A | 20A | 70.8A | 0.5A | 2.5A |
| Max Combined Wattage | 100W | 849.6W | 6W | 12.5W | |
| 850W | |||||

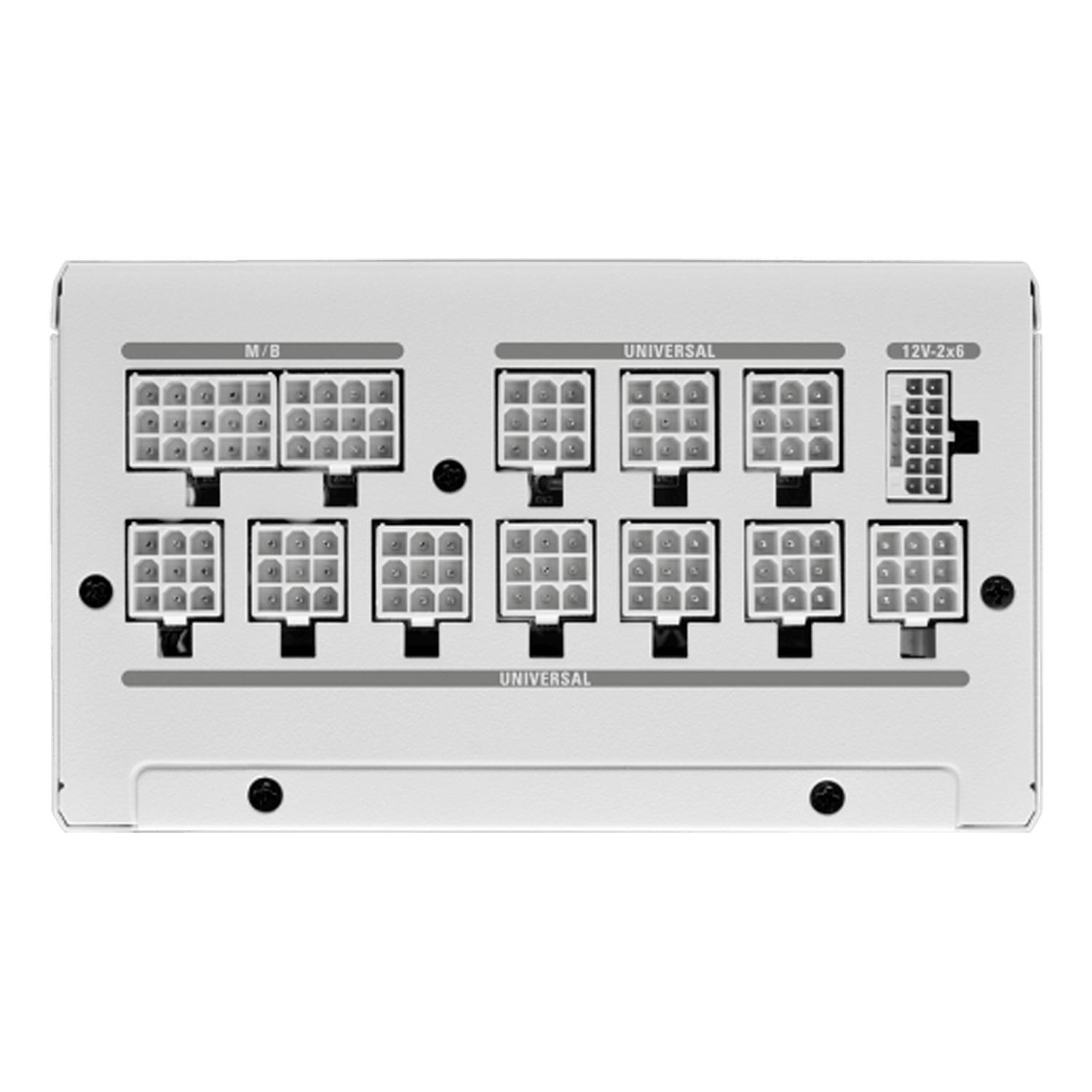

| Cables | |||||
| 20+4Pin | x1 | ||||
| (4+4Pin) CPU | x2 | ||||
| PCIe-E 6+2Pin | x3 | ||||
| Native 12+4 Pin VGA | x1 | ||||
| 4x SATA | x2 | ||||
| 4x Molex | x1 | ||||
