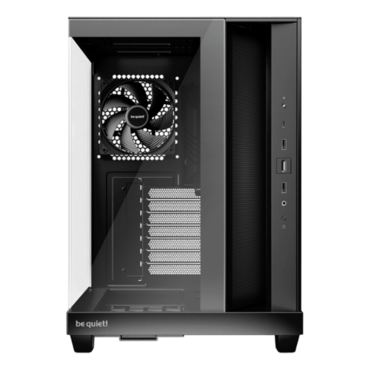

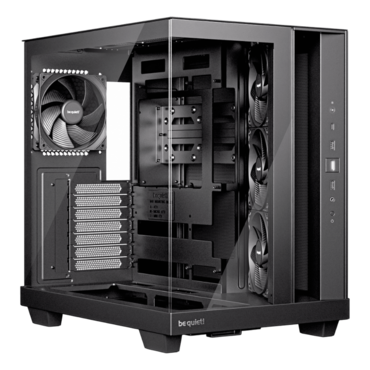

Light Base 500, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
- SKU: 19580516
- Manufacturer: be quiet!
- MPN: BGW83
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$143.63
Light Base 500, Tempered Glass, No PSU, ATX, Black, Mid Tower Case
Core performance and aesthetics
Light Base 500 stands for a clean design and the core values of gaming: performance, accessibility and functionality.

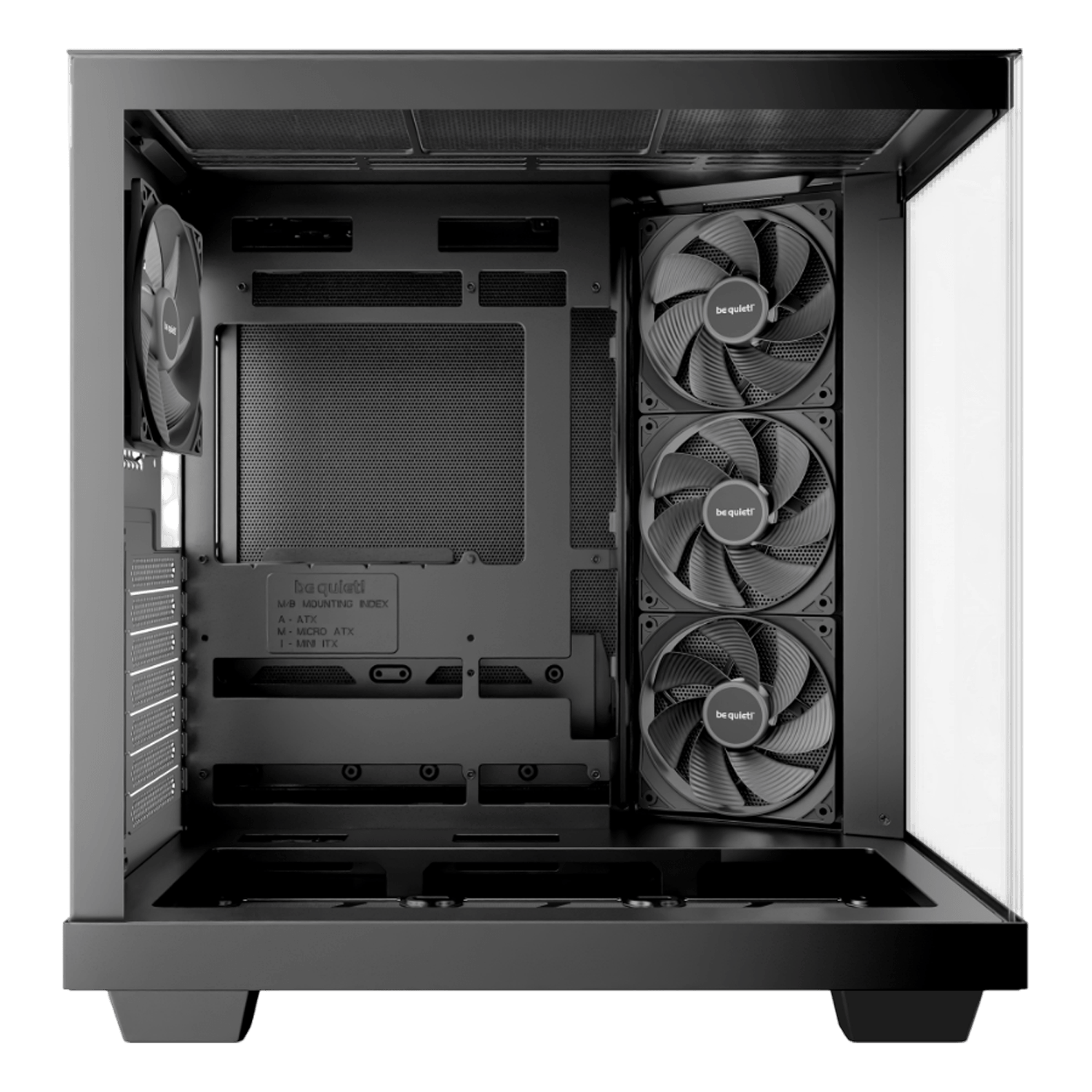

- Angled slide-out fan frame on the side routes air directly to the GPU
- Fans can be installed in the lowered fan bay to line up perfectly with the case floor
- 4 preinstalled Pure Wings 3 120mm PWM f ans for extraordinary airflow
- Spacious design for radiators up to 360mm, an ATX motherboard, 2 HDDs and SSDs at the same time
- 2 possible PSU positions enable backside connector motherboards
- Zero RGB for an unobtrusive and elegant appearance in any room
- 3-year manufacturer’s warranty
| General data | |
| Model | Light Base 500 Black |
| Color option | Black |
| Motherboard compatibility | ATX / M-ATX / Mini-ITX support BTF MB |
| Case size excl. stands (L x W x H), (mm) | 432 x 305 x 410 |
| Case size incl. stands (L x W x H), (mm) | 432 x 305 x 436 |
| Volume (l) | 49,6L |
| PSU form factor | ATX PS/2 |
| Net weight (kg) | 10,91 |
| Expansion slots | 7 |
| Pre-installed fans | |
| Fan at top | - |
| Fan at front | - |
| Fan at side | 3x Pure Wings 3 Reverse 120mm PWM Black |
| Fan at rear | 1x Pure Wings 3 120mm PWM Black |
| Fan at bottom | - |
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Fan speed at 100% PWM / 12V (rpm) | 1600 | 1500 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 51.5 / 87.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.34 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Voltage range (V DC) | 5 - 13.2 |
| Input power (W) | 3.8 |
| Input current (A) | 0.32 |
| Connector | 4-pin PWM |
| Lifespan (h / 25°C) | 60,000 |
| Fan controller | 2x 12 Ports |
| Maximum fan installation | |
| Maximum fans | 10 |
| Top (mm) | 2x 140 / 3x 120 |
| Front (mm) | - |
| Side (mm) | 3x120 |
| Rear (mm) | 1x 120 / 1x 140 |
| Bottom (mm) | 3x 120 |
| PSU shroud | - |
| Optional radiator installation | |
| Top (mm) | 120 / 240 / 280 / 360 |
| Front (mm) | - |
| Side (mm) | 120 / 240 |
| Rear (mm) | 120 |
| Bottom (mm) | - |
| PSU compatibility | |
| Maximum dimensions excl. bottom fan (mm) | <200 |
| Maximum dimensions incl. bottom fan (mm) | <200 |
| Graphics card | |
| HDD cage (in height of graphics card) installed (mm) | 400 |
| HDD cage (in height of graphics card) removed (mm) | 400 |
| Maximum PCIe slots with vertical graphics card (pcs.) | 4 |
| Drive bay capacity | |
| 5.25 bays (pcs.) | - |
| 3.5 slots (scope of delivery) | 2 |
| 3.5 slots (max.) | 2 |
| 2.5 slots (scope of delivery) | 2 |
| 2.5 slots (max.) | 2 |
| Cooling | |
| Max.construction height of CPU cooler unit (mm) | 185 |
| Airflow channel | - |
| Lighting | |
| LED illumination | - |
| LEDs (pcs.) | - |
| LED type | - |
| LEDs synchronizable with controller/motherboard | - |
| I/O Panel | |
| USB 3.2 Gen. 2 Type C | 1 |
| USB 3.2 Type A | 2 |
| USB 2.0 | - |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging Option (W) | - |
| Insulation and damping | |
| Top panel insulation mats | - |
| Front panel insulation mats | - |
| Side panel insulation mats | - |
| Anti-vibration decoupled HDD | ✓ |
| Anti-vibration decoupled fan | ✓ |
| Anti-vibration decoupled PSU | ✓ |
| Anti-vibration decoupled motherboard-tray | - |
| Scope of delivery | |
| Screw set (Drives/Motherboard) | ✓ |
| Additional standoffs (pcs.) | 1 |
| SSD bracket for PSU shroud | - |
| LED strips (pcs.) | - |
| Cable ties (pcs.) | 5 |
| Screw box | - |
| VGA holder | - |
| VGA holder for inverted layout | ✓ |
| Mesh Front Panel | - |
| ODD Bracket | - |
| Fan / Radiator bracket for multi mounting panel | - |
| Removeable dust filters | |
| Top | - |
| Front | - |
| Side | 1 |
| Bottom | 1 |
| Material | |
| Top cover | Steel |
| Front panel | Glass |
| Side panel | Glass |
| Side panel window | Steel |
| Stands | ABS |
| Safety certification | |
| Approvals | CE, UKCA |
| Environmental directives | |
| RoHS | ✓ |
| Reach | - |
| WEEE | ✓ |
| Triman | ✓ |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data and RRP | |
| Article number | BGW83 |
| EAN code | 4260052193808 |
| Dimensions, package (L x W x H), (mm) | 493 x 388 x 515 |
| Gross weight, package (kg) | 14.6 |
