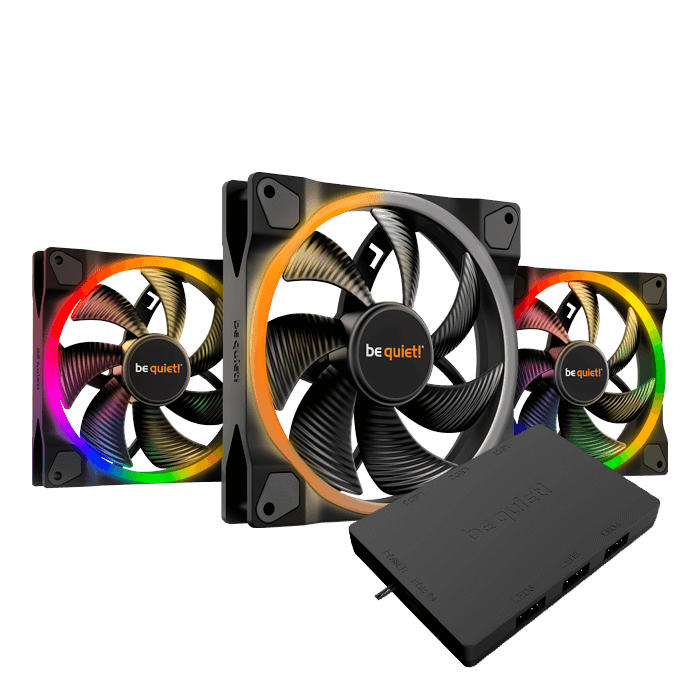

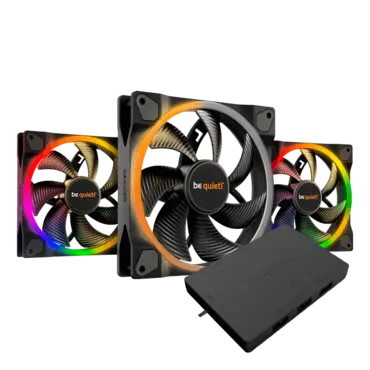

Light Wings, 3 x 140mm, w/ ARGB Hub, 1500 RPM, 56 CFM, 23.3 dBA, Cooling Fans
Quantity:
- SKU: 14688125
- Manufacturer: be quiet!
- MPN: BL078
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$84.90
Light Wings, 3 x 140mm, w/ ARGB Hub, 1500 RPM, 56 CFM, 23.3 dBA, Cooling Fans

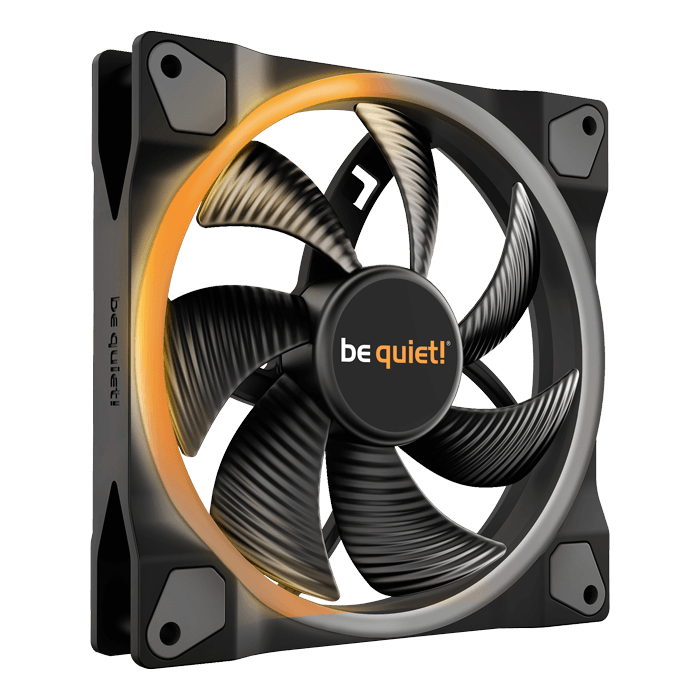

be quiet! Light Wings (BL078). Three Light Wings 140mm PWM offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.

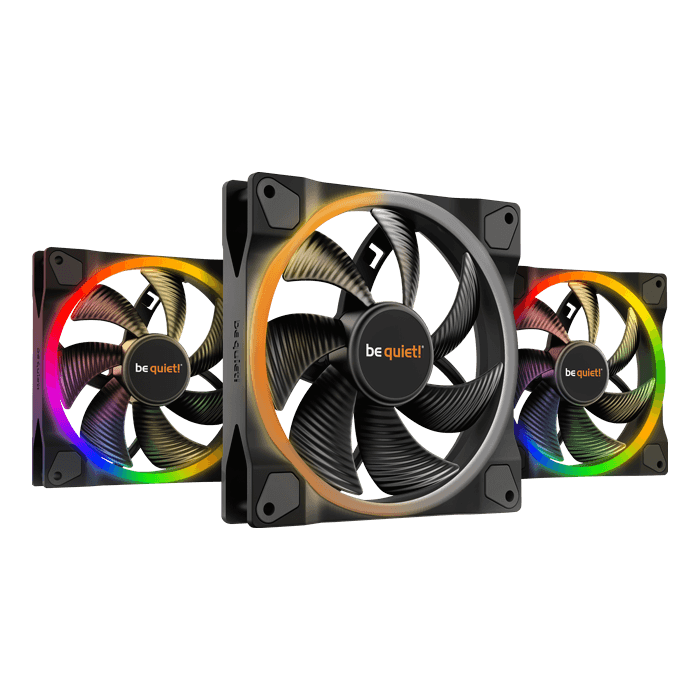

- Three fans included
- ARGB lighting on front and rear
- Multiple colors and modes for an individual look thanks to 20 LEDs

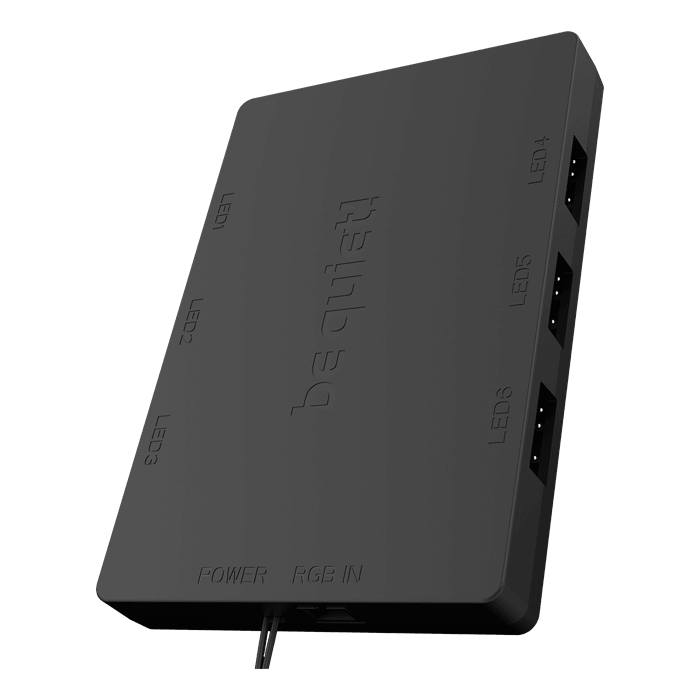

- ARGB Hub allows synchronization of up to six ARGB components
- Seven silence-optimized fan blades for high airflow and low noise-generating turbulences
- Very quiet operation with max. 23.3dB(A)
| General data | |
| Model | Light Wings 140mm PWM Triple Pack |
| Dimensions (mm) | 140 x 140 x 25 |
| Fan speed @ 100% PWM / 12V (rpm) | 1500 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 56 / 95.14 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.49 |
| Lighting | ARGB LED |
| Noise level @ 100% PWM / 12V (dB(A)) | 23.3 |
| Color option | Black |
| Mechanical specifications | |
| Dimensions (L x W x H), (mm) | 140 x 140 x 25 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Weight incl. fixed cables (kg) | 0.241 |
| Push pin fixing | - |
| Screw fixing | ✓ |
| Cables / Connectors | |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
| Performance / Noise | |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 56 / 95.14 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.49 |
| Noise level @ 100% PWM / 12V (dB(A)) | 23.3 |
| Lifespan (h / 25°C) | 60,000 |
| Electrical specifications | |
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.08 |
| Safety current (A) | 0.32 |
| Input power (W) | 3.84 |
| Rated Current LED (A) | 0.67 |
| Accessories | |
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 16 |
| Push pins | - |
| Silica gel washer | - |
| Others | ARGB Hub |
| Safety certification | |
| Approvals | CE / RoHs / RU / WEEE |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data, RRP | |
| Article number | BL078 |
| EAN code | 4260052188828 |
| Dimensions, package (L x W x H), (mm) | 192 x 133 x 86.5 |
| Gross weight, package (kg) | 1.002 |
| Pieces per packaging unit | 10 |
| Dimensions, shipping box (L x W x H), (mm) | 454 x 323 x220 |
| Gross weight, shipping box (kg) | 10.75 |
