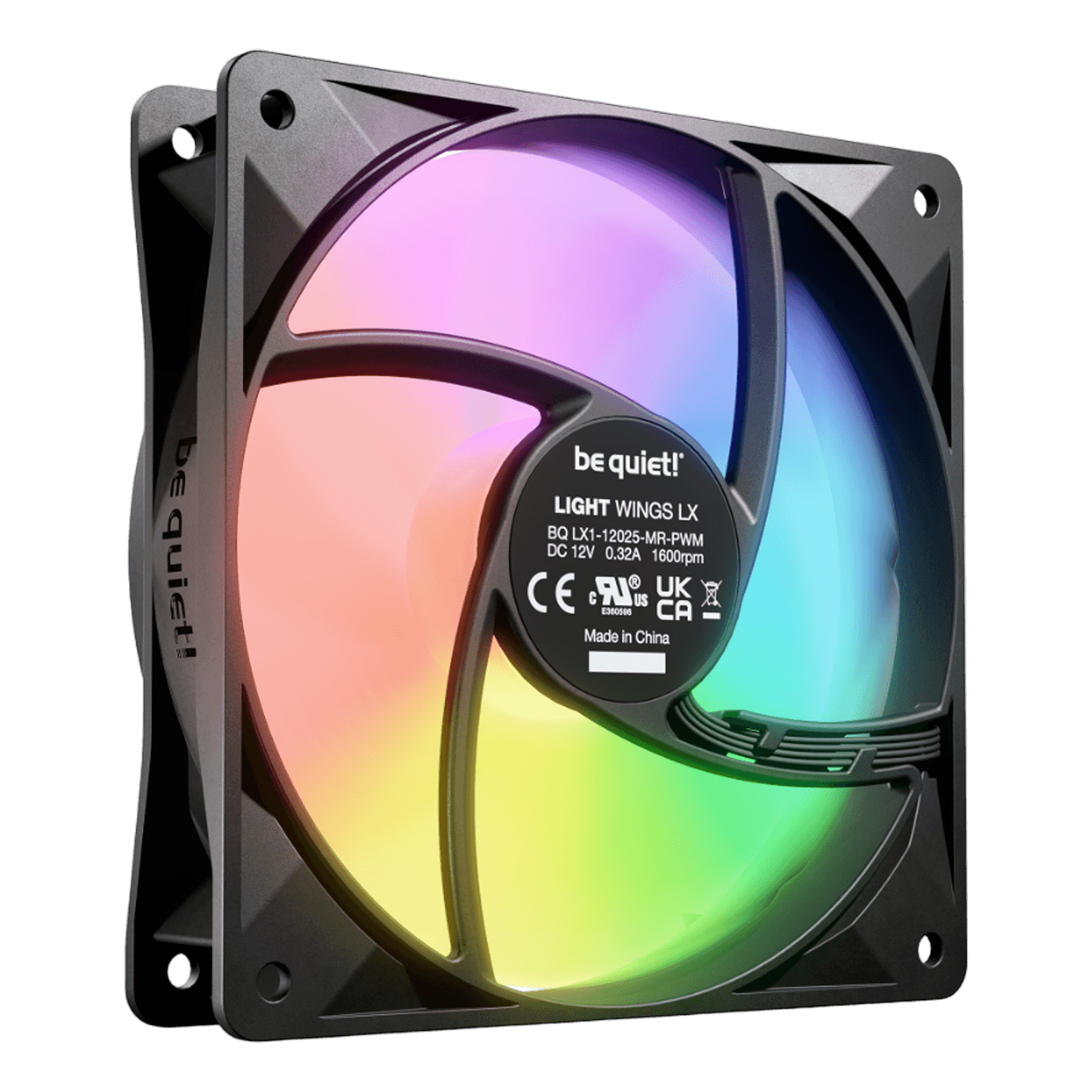

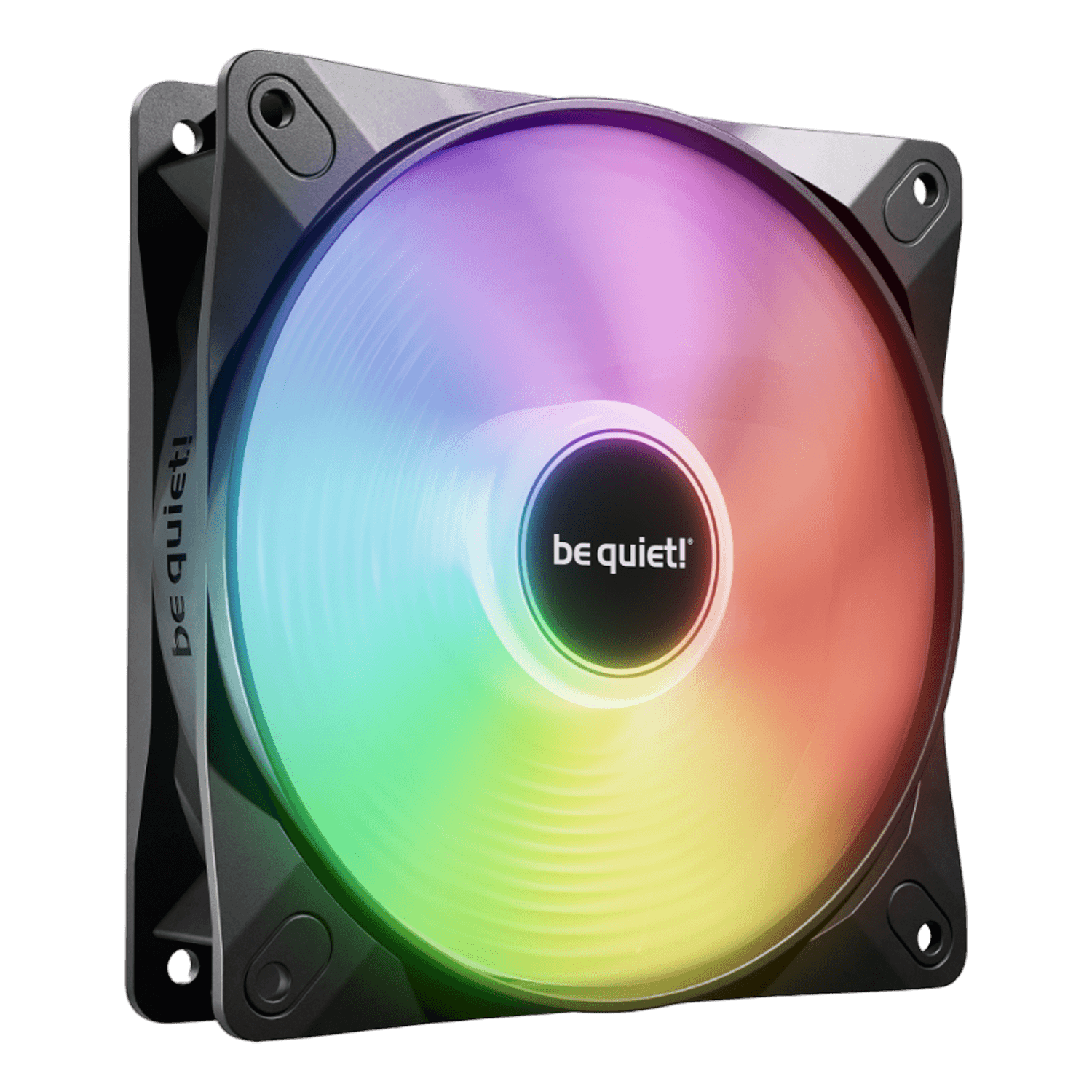

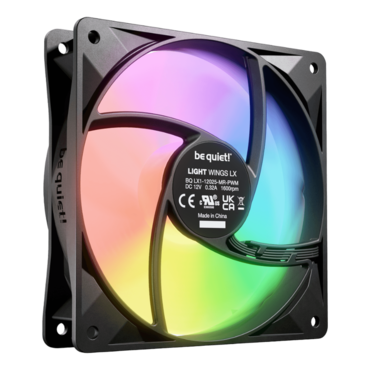

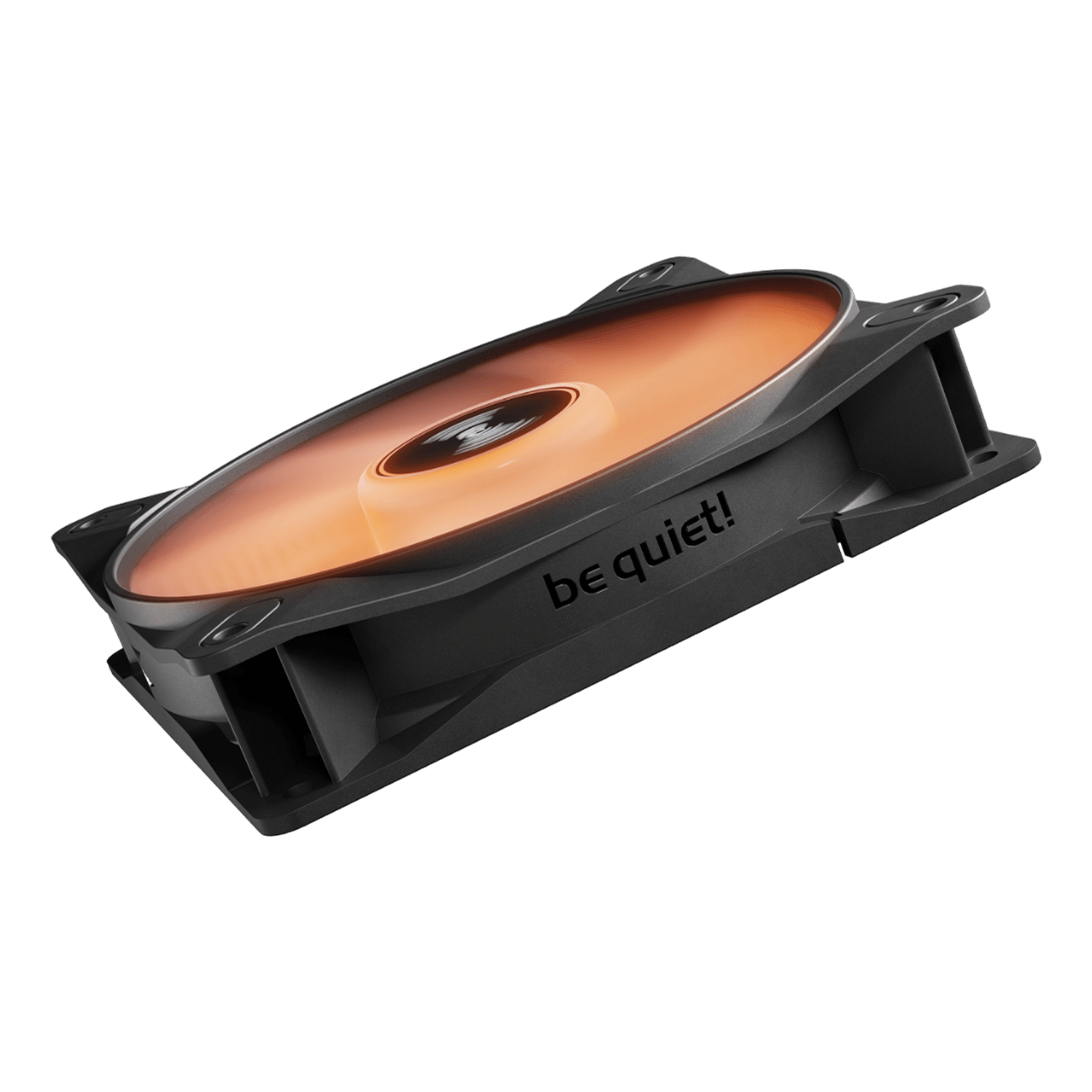

Light Wings LX 120mm, RGB LEDs, 1600 RPM, 51.5 CFM, 25.5 dBA, Cooling Fan
Great performance and impressive lighting
The Light Wings LX 120mm PWM boasts optimized fan blades and an illuminated impeller for great performance and lighting.
- Illuminated hub and frosted fan blades for unmistakable lighting effects that visually upgrade every PC system
- Multiple colors and modes for an individual look thanks to 16 LEDs
- 7 optimized fan blades with perfect angle for extraordinary air pressure
- ARGB connection cable with daisy chain option
- Low starting rpm for very quiet operation
- Long life rifle-bearing gives an operating lifetime of 60,000 hours
- 3-year manufacturer’s warranty
General data | |
Model | Light Wings LX 120mm PWM |
Dimensions (mm) | 120 |
Color option | Black |
Lighting | ARGB LED |
Fan speed at 100% PWM / 12V (rpm) | 1600 |
Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
Airflow at 100% PWM / 12V (CFM / m3/h) | 51.5 / 87.5 |
Air Pressure at 100% PWM / 12V (mm H2O) | 1.34 |
Mechanical specifications | |
Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
Weight incl. fixed cables (g) | 133 |
Bearing technology | Rifle |
Motor technology | 4-pole fan motor |
Push pin fixing | - |
Screw fixing | ✓ |
Cables / Connectors | |
Daisy-chain compatible | ✓ |
Lighting connector | 5V 3-pin ARGB |
Connector | 4-pin PWM |
Cable length (mm) | 500 |
Cable sleeve | - |
Performance / Noise | |
Airflow at 100% PWM / 12V (CFM / m3/h) | 51.5 / 87.5 |
Air Pressure at 100% PWM / 12V (mm H2O) | 1.34 |
Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
Lifespan (h / 25°C) | 60,000 |
Zero RPM mode | - |
Electrical specifications | |
Rated Voltage DC (V) | 12 |
Operating Voltage DC (V) | 5 - 13.2 |
Current consumption (A) | 0.10 |
Input current (A) | 0.10 |
Safety current (A) | 0.32 |
Input power (W) | 3.8 |
Rated Current LED (A) | 0.39 |
Accessories | |
3-pin to 4-pin 12V-connector | - |
12V to 7V adapter | - |
12V to 5V adapter | - |
Screws | 4 |
Push pins | - |
hard plastic washer | - |
Others | - |
Safety certification | |
Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives | |
RoHS | ✓ |
WEEE | ✓ |
Triman | ✓ |
Service | |
Warranty (Years) | 3 |
International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP | |
Article number | BL120 |
EAN code | 4260052191583 |
Dimensions, package (L x W x H), (mm) | 164 x 122 x 27 |
Gross weight, package (kg) | 0.17 |
