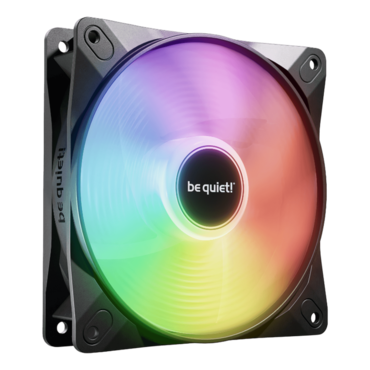

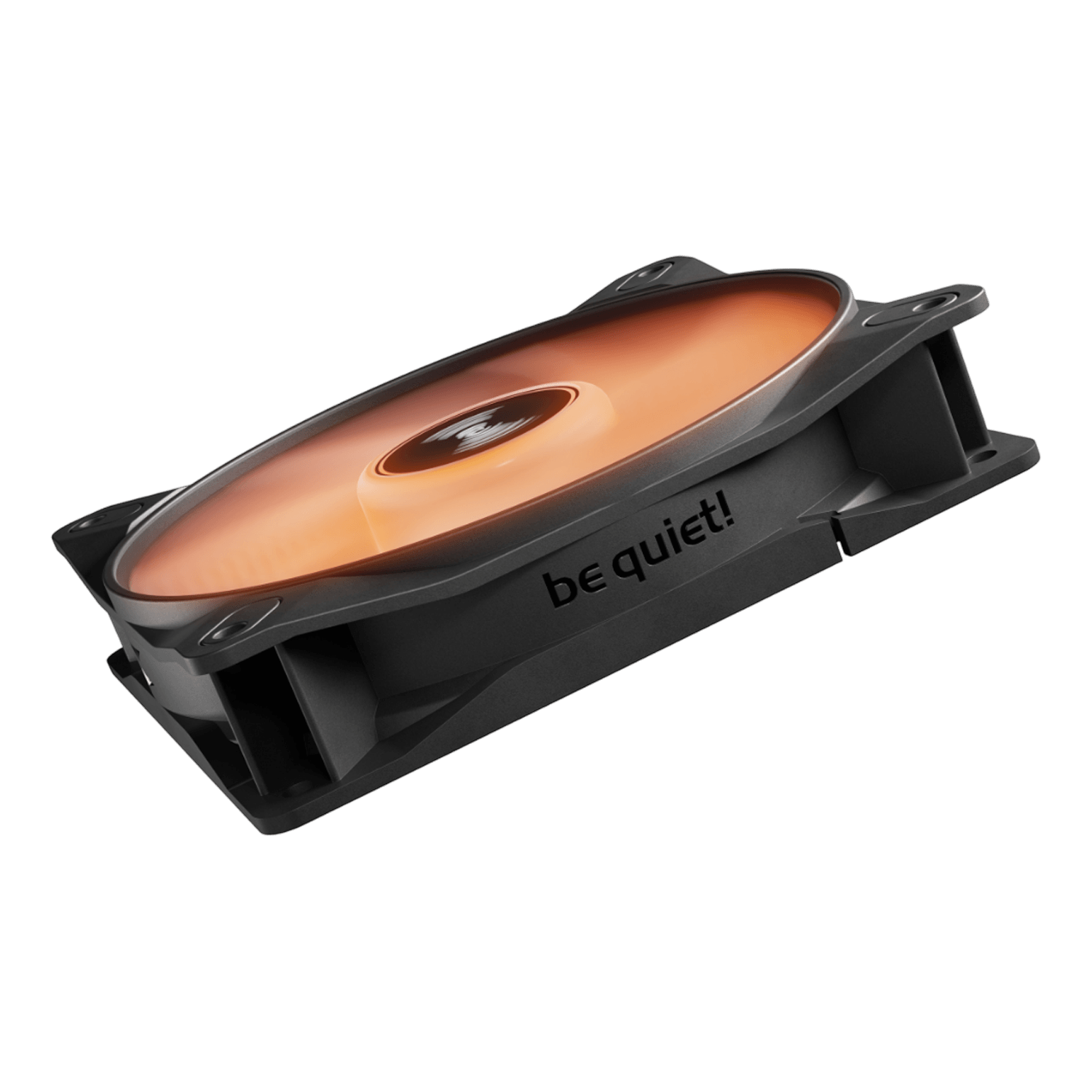

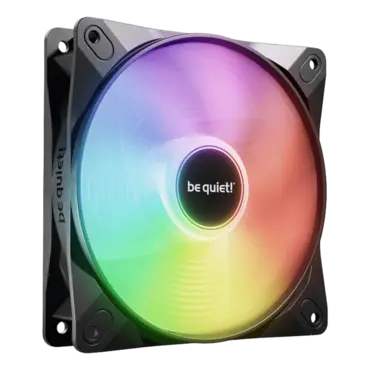

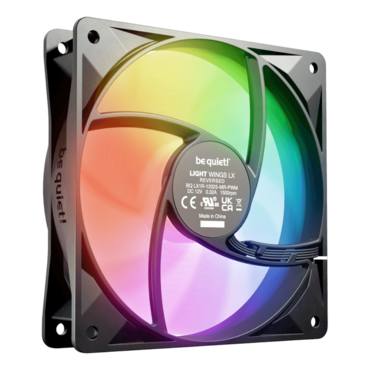

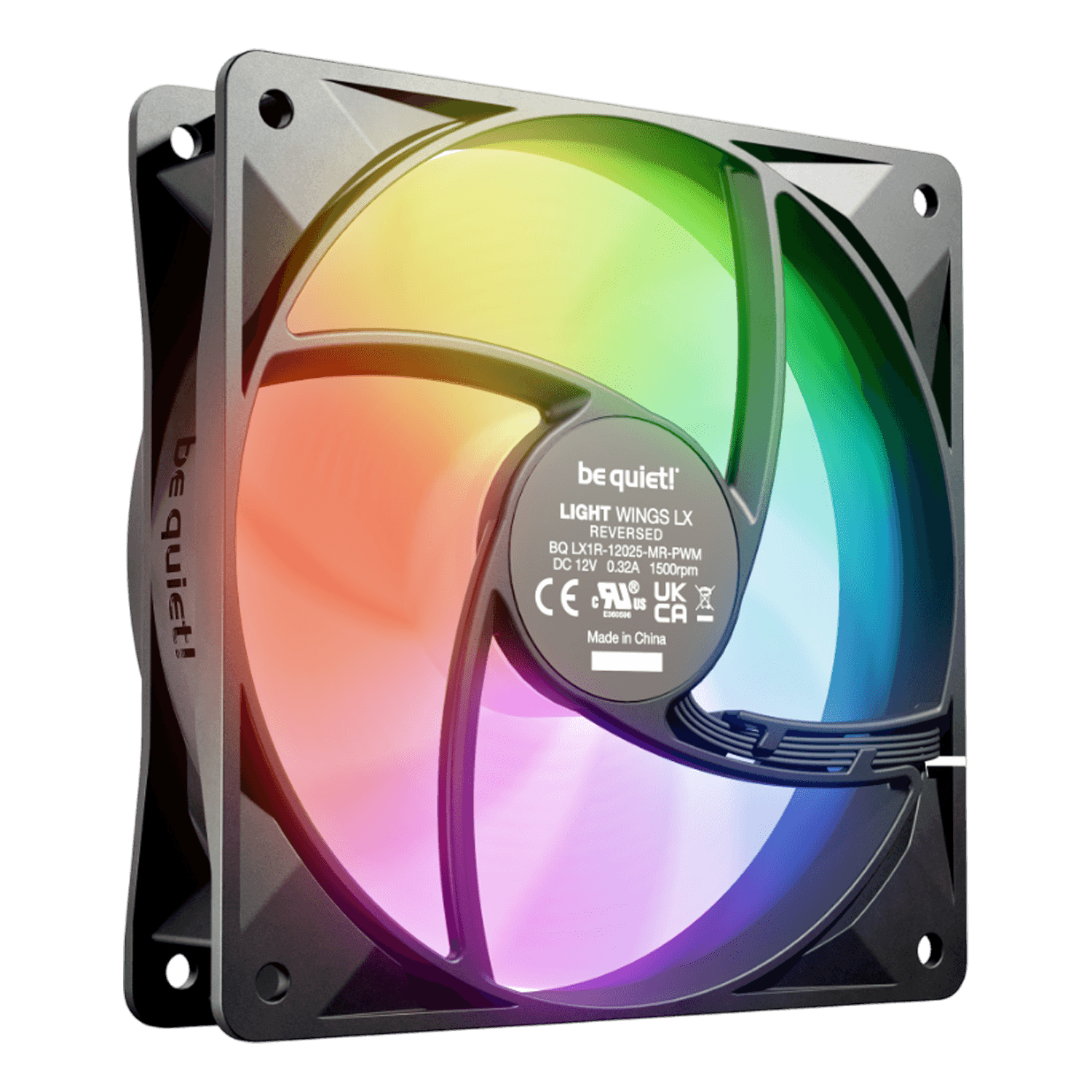

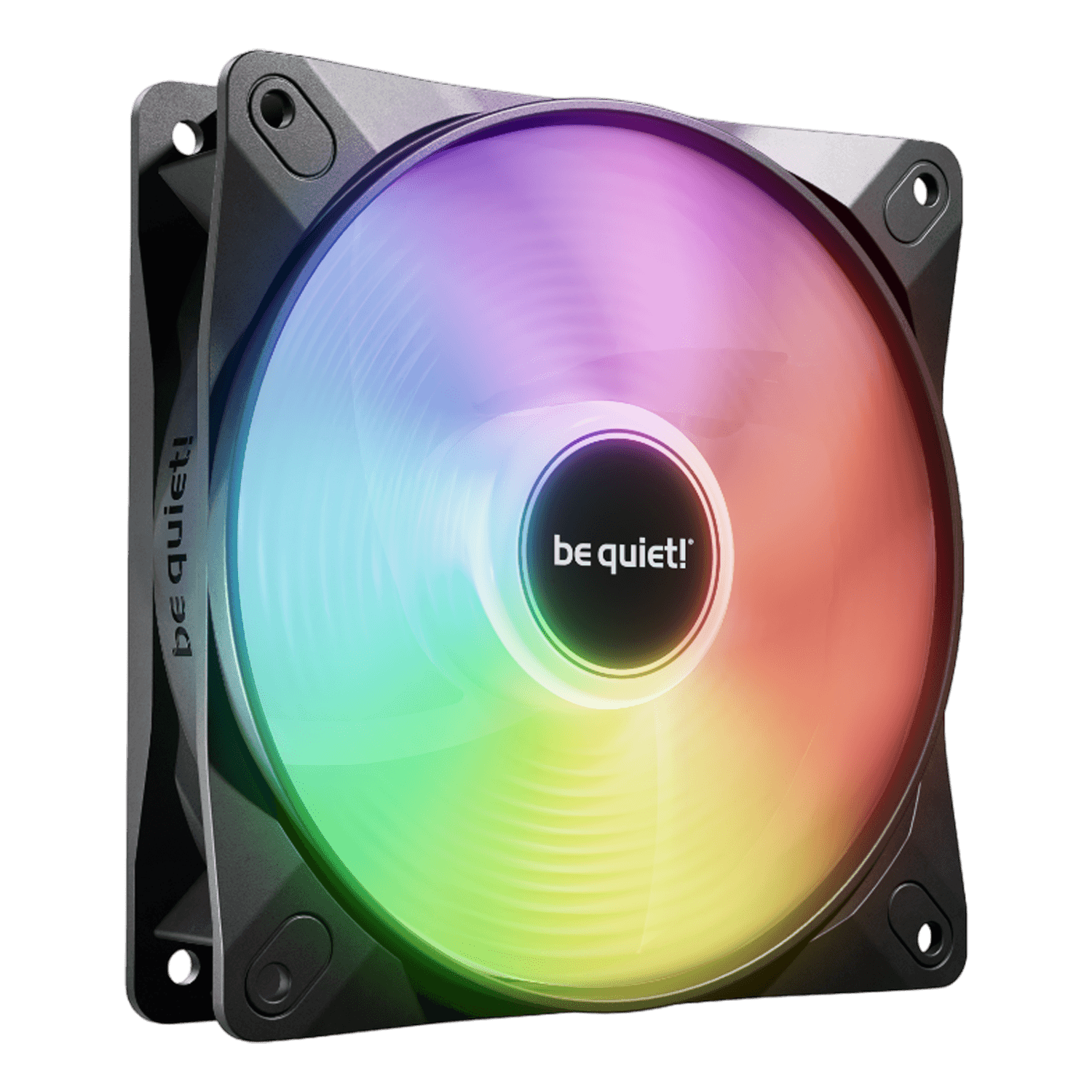

Light Wings LX Reverse 120mm, ARGB LEDs, 1500 RPM, 48.8 CFM, 28.5 dBA, Cooling Fan
- SKU: 18999325
- Manufacturer: be quiet!
- MPN: BL132
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$19.80
Light Wings LX Reverse 120mm, ARGB LEDs, 1500 RPM, 48.8 CFM, 28.5 dBA, Cooling Fan
Perfect choice as a side or bottom intake
Light Wings LX 120mm PWM Reverse Black undeniably upgrades all kind of PC cases with its spectacular lighting. Especially show cases with an emphasis on ARGB illumination benefit from this fan. Add a bunch of them to your show case and let friends and family gaze in awe.
- 7 optimized and reversed fan blades with perfect angle for extraordinary air pressure
- Reversed fan blades are ideal as side or bottom intake
- Illuminated hub and frosted fan blades for unmistakable lighting effects that visually upgrade every PC system
- Multiple colors and modes for an individual look thanks to 16 LEDs
- ARGB connection cable with daisy chain option
- Low starting rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of up to 60,000 hours
| General data | |
| Model | Light Wings LX 120mm PWM Reverse |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed at 100% PWM / 12V (rpm) | 1500 |
| Noise level at 100% PWM / 12V (dB(A)) | 28.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 48.8 / 83.0 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.04 |
| Mechanical specifications | |
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 133 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | √ |
| Cables / Connectors | |
| Daisy-chain compatible | √ |
| Lighting connector | 5V 3-pin ARGB |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
| Performance / Noise | |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 48.8 / 83.0 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.04 |
| Noise level at 100% PWM / 12V (dB(A)) | 28.5 |
| Lifespan (h / 25°C) | 60,000 |
| Zero RPM mode | - |
| Electrical specifications | |
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.10 |
| Safety current (A) | 0.32 |
| Input power (W) | 3.8 |
| Rated Current LED (A) | 0.39 |
| Accessories | |
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
| Safety certification | |
| Approvals | CE / RoHS / RU / UKCA / WEEE |
| Environmental directives | |
| RoHS | √ |
| WEEE | √ |
| Triman | √ |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | √ / DE, FR, US |
| Logistics data and RRP | |
| Article number | BL132 |
| EAN code | 4260052192870 |
| Dimensions, package (L x W x H), (mm) | 164 x 27 x 122 |
| Gross weight, package (kg) | 0.17 |
