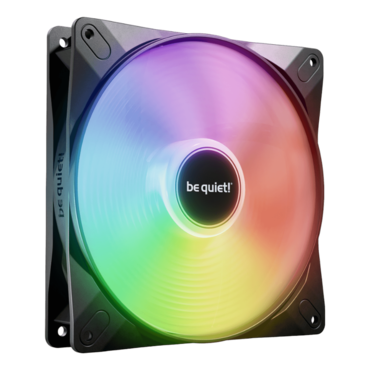

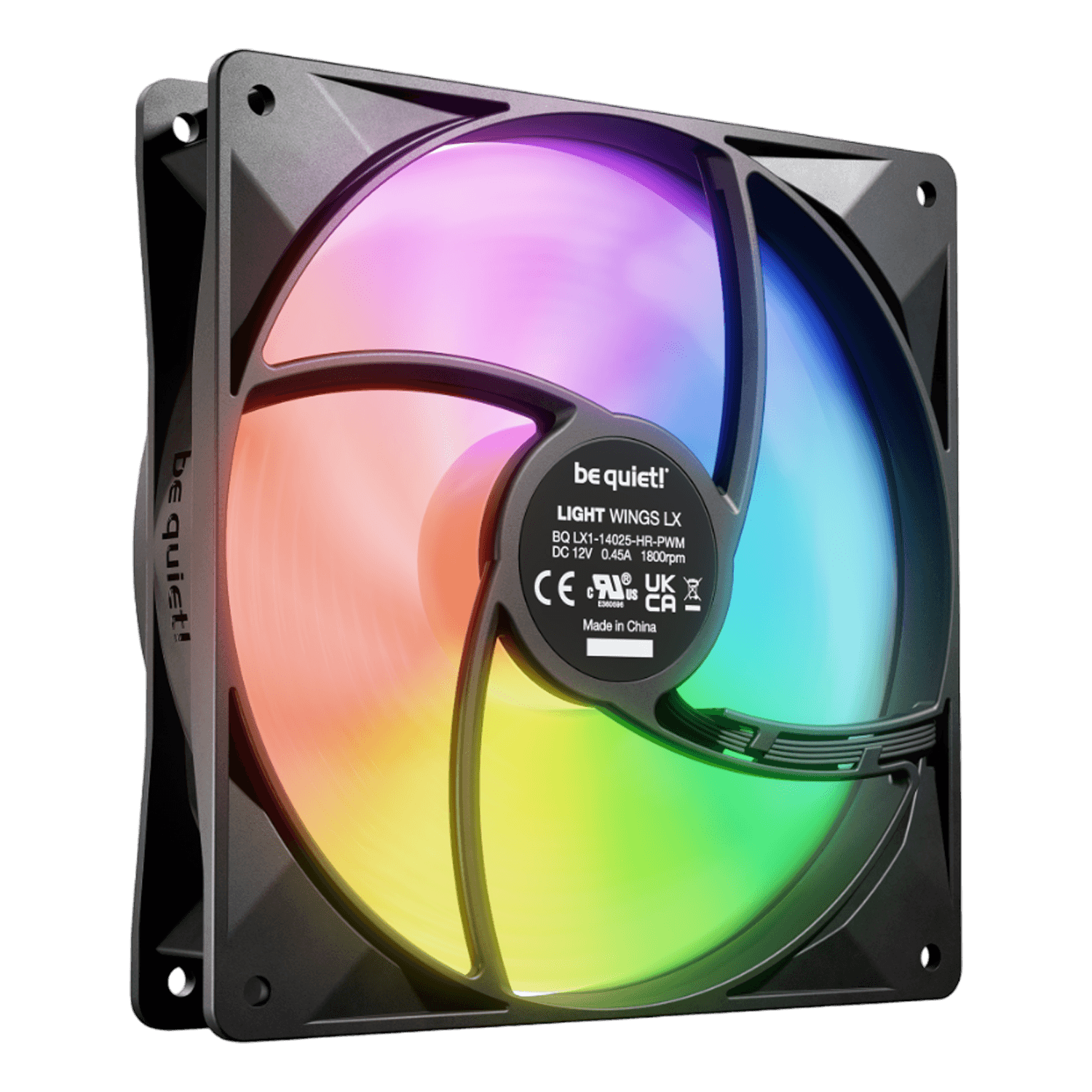

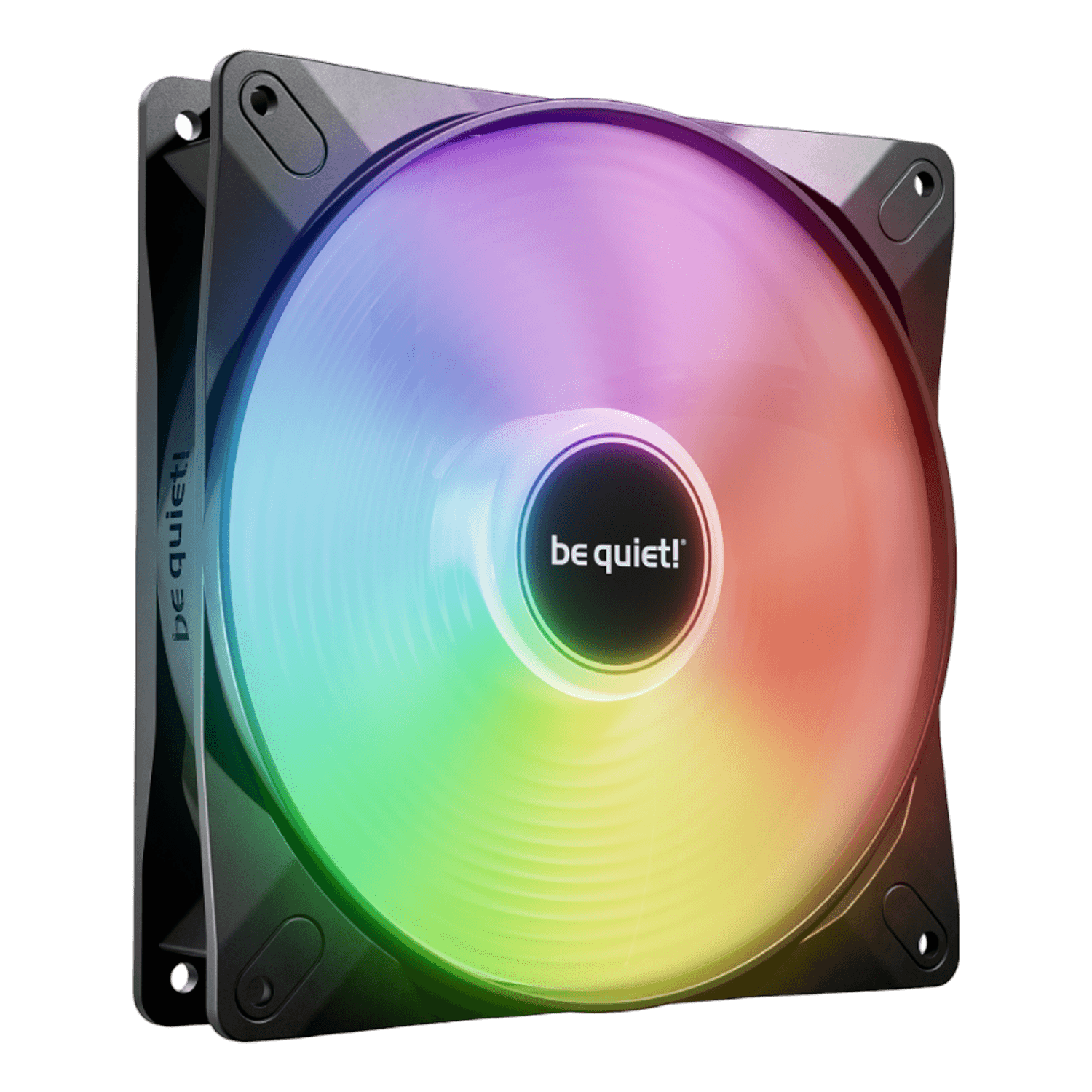

Light Wings LX high-speed 140mm, RGB LEDs, 1800 RPM, 75.3 CFM, 30.5 dBA, Cooling Fan
Great performance and impressive lighting
The Light Wings LX 140mm PWM high-speed boasts optimized fan blades and an illuminated impeller for great performance and lighting.
- Illuminated hub and frosted fan blades for unmistakable lighting effects that visually upgrade every PC system
- Multiple colors and modes for an individual look thanks to 16 LEDs
- 9 optimized fan blades with perfect angle for extraordinary air pressure
- Innovative closed loop motor keeps the rpm no matter the resistance
- ARGB connection cable with daisy chain option
- Low starting rpm for very quiet operation
- Long life rifle-bearing gives an operating lifetime of 60,000 hours
- 3-year manufacturer’s warranty
General data | |
Model | Light Wings LX 140mm PWM high-speed |
Dimensions (mm) | 140 |
Color option | Black |
Lighting | ARGB LED |
Fan speed at 100% PWM / 12V (rpm) | 1800 |
Noise level at 100% PWM / 12V (dB(A)) | 30.5 |
Airflow at 100% PWM / 12V (CFM / m3/h) | 75.3 / 127.9 |
Air Pressure at 100% PWM / 12V (mm H2O) | 2.45 |
Mechanical specifications | |
Dimensions (L x W x H), (mm) | 140 x 140 x 25 |
Weight incl. fixed cables (g) | 169 |
Bearing technology | Rifle |
Motor technology | 4-pole fan motor |
Push pin fixing | - |
Screw fixing | ✓ |
Cables / Connectors | |
Daisy-chain compatible | ✓ |
Lighting connector | 5V 3-pin ARGB |
Connector | 4-pin PWM |
Cable length (mm) | 500 |
Cable sleeve | - |
Performance / Noise | |
Airflow at 100% PWM / 12V (CFM / m3/h) | 75.3 / 127.9 |
Air Pressure at 100% PWM / 12V (mm H2O) | 2.45 |
Noise level at 100% PWM / 12V (dB(A)) | 30.5 |
Lifespan (h / 25°C) | 60,000 |
Zero RPM mode | - |
Electrical specifications | |
Rated Voltage DC (V) | 12 |
Operating Voltage DC (V) | 5 - 13.2 |
Current consumption (A) | 0.18 |
Input current (A) | 0.18 |
Safety current (A) | 0.45 |
Input power (W) | 5.4 |
Rated Current LED (A) | 0.39 |
Accessories | |
3-pin to 4-pin 12V-connector | - |
12V to 7V adapter | - |
12V to 5V adapter | - |
Screws | 4 |
Push pins | - |
hard plastic washer | - |
Others | - |
Safety certification | |
Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives | |
RoHS | ✓ |
WEEE | ✓ |
Triman | ✓ |
Service | |
Warranty (Years) | 3 |
International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP | |
Article number | BL129 |
EAN code | 4260052191675 |
Dimensions, package (L x W x H), (mm) | 184 x 142 x 27 |
Gross weight, package (kg) | 0.21 |
