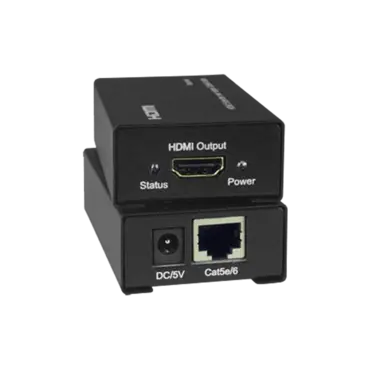

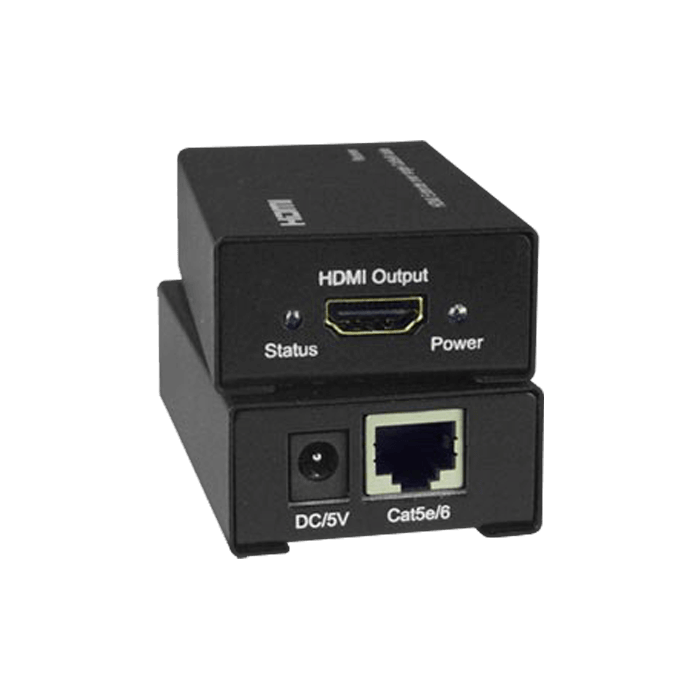

Low-Cost HDMI Extender via One CAT5e/6: Extend up to 150 feet
HDMI Extender Single CAT5 1080p Remote HDTV Display 150 feet
Low-Cost HDMI Extender via One CAT5e/6
Supports HDTV resolutions to 1080p
Bandwidth up to 225MHz
Local Unit |
- Compatible with a computer HDTV video source with HDMI output.
- One female HDMI connector.
- One female RJ45 port for sending/receiving high definition video/audio signals.
- Built-in default EDID table
- Recommended for use with 1080p HDMI displays.
- Supports 3D
- Note: if the input source is 3D the output display must support 3D.
|
Remote Unit |
- One female HDMI connector for display.
- Not recommended for use with DVI monitors.
- One female RJ45 port for sending/receiving high definition video/audio signals.
- Supports HDTV resolutions to 1080p.
- Supports embedded digital audio through HDMI compatible TVs or audio receivers.
- Auto equalization for different lengths of CAT5e/6 cable.
|
Power |
- Local and remote unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter.(US AC adapters included.)
- Optional universal power plug adapters available (not included).
- Power consumption (local and remote): 5W
|
Max Distance |
- 150 feet (46 meters) over CAT5e/6 cable.
|
Cables |
- Use HD-xx-MM cable to connect an HDMI source or display.
- Use CAT5e/6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
|
Environmental |
- Operating and storage temperature: 23 to 95°F (-5 to 35°C)
- Operating and storage relative humidity: 5 to 90% non-condensing RH.
|
Dimensions |
- WxDxH: 1.89x3.27x0.98 in (48x83x25 mm)
|
Regulatory Approvals |
- CE, RoHS
- FCC Part 15 Subpart Class B
|
Warranty |
|
