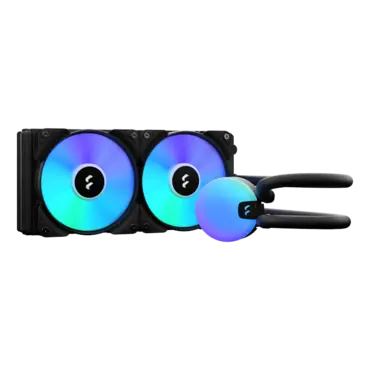

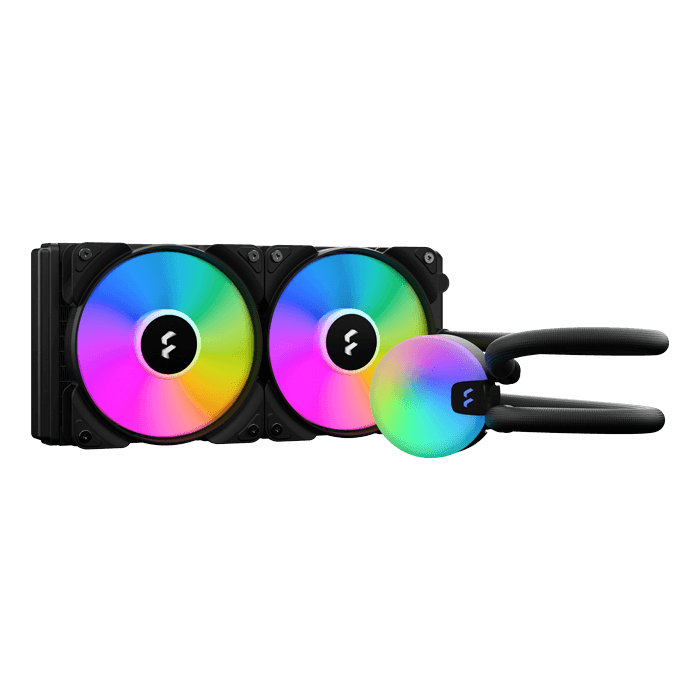

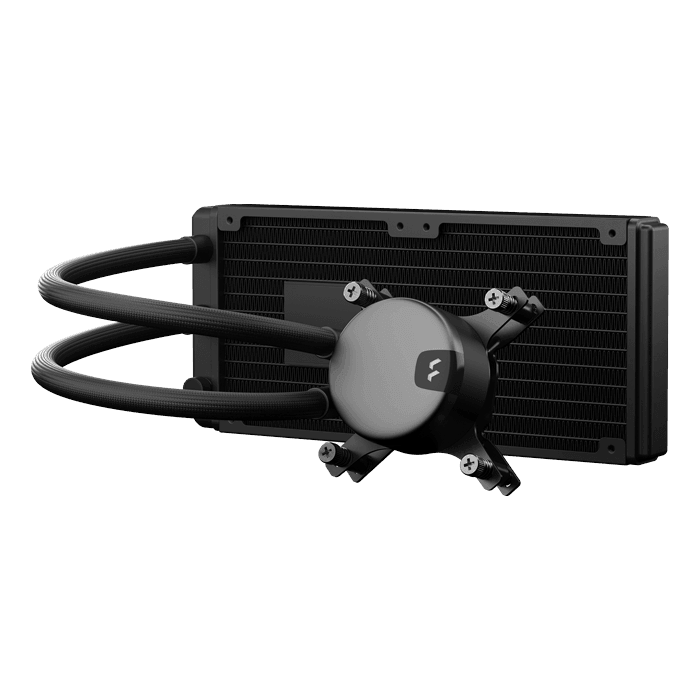

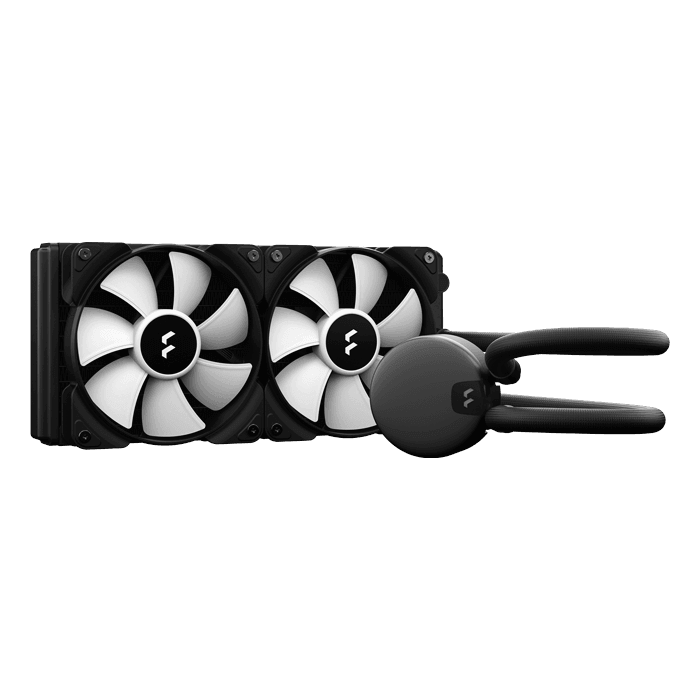

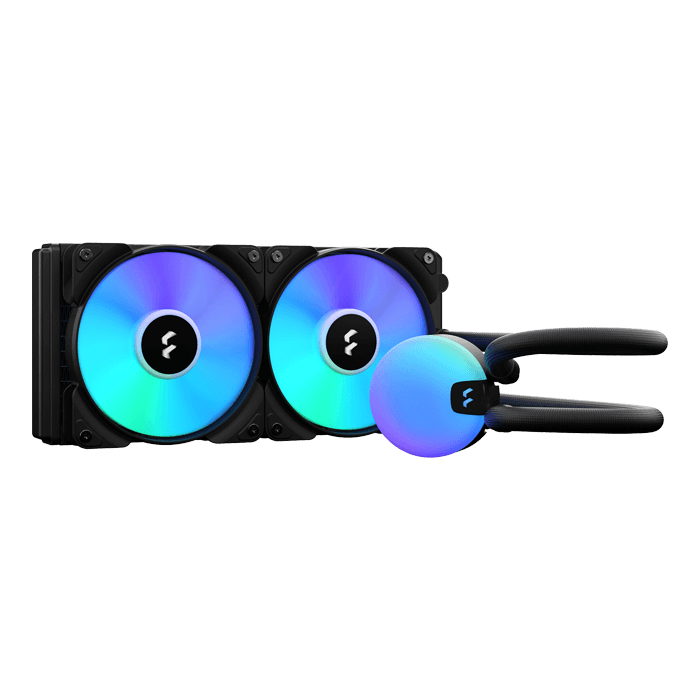

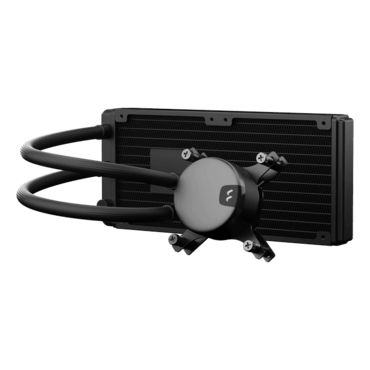

Lumen S24 RGB V2, 240mm Radiator, Liquid Cooling System

  • SKU: 16011759
  • Manufacturer: Fractal Design
  • MPN: FD-W-L1-S2412
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Lumen S24 RGB V2, 240mm Radiator, Liquid Cooling System

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

  • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
  • Six ARGB LEDs are yours to command via your motherboard or controller
  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
  • Compatible with LGA 1700 and AM5
General specifications
Sockets supported (Intel) LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
Sockets supported (AMD) AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
Cold plate material Copper
Thermal paste Pre-applied
Tube length 400mm
Tube material Low-permeability rubber with braided nylon sleeve
Fittings, block side Articulating 90-degree Elbow
Fittings, radiator side Barbed fitting
Block height 43mm
Block measurements (with fittings) 79 x 67 mm
Block diameter (main block body) 67 mm
Fan specifications
Fan type Aspect 12 RGB PWM
Rotational speed 500–2000 RPM
Fan bearing Rifle bearings
Fan PWM control Yes
Fan acoustical noise <10–33.2 dBA
Fan maximum air flow 13-56 CFM
Fan maximum static pressure 0.230–2.34 mm H2O
Fan input voltage 12V
Fan maximum input current 0.37A
Fan MTTF 90,000 hours
Pump specifications
Rotational speed 4000 ± 10% RPM
Bearing type Ceramic
PWM control No
Acoustical noise (full speed) 22 dBA
Maximum pressure 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Input voltage 12V DC
Input current (without fans) 0.34 A
MTTF 50 000 hours
Radiator specifications
Radiator dimensions 272 x 120 x 27 mm
Radiator housing material Aluminum
Radiator fin material Aluminum
Radiator fan screw threads 6-32

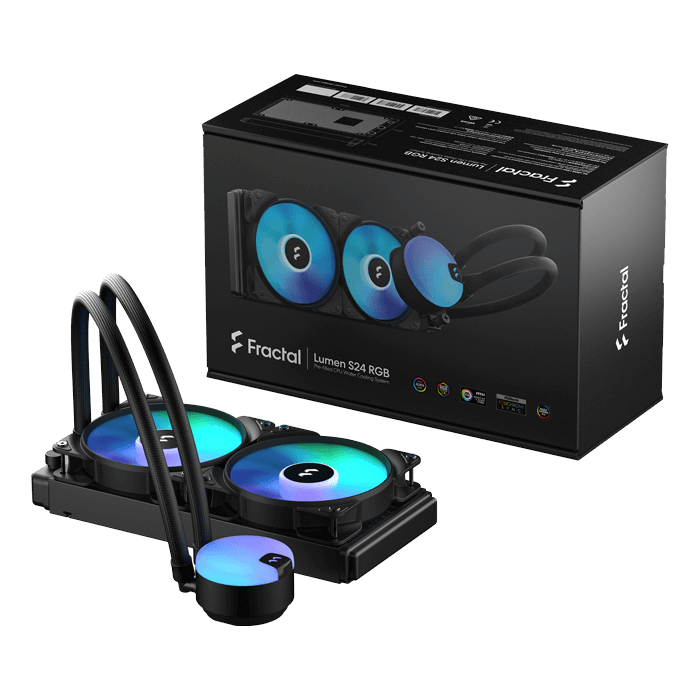

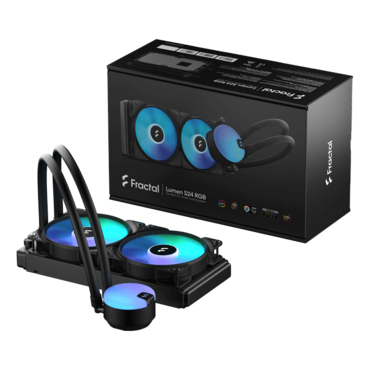

Package contents CPU Cooler Assembly, 2x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
Package dimensions 332 x 205 x 137 mm
Package weight 1.77kg
EAN 7340172705932
UPC 843276105938
JAN 4537694317610
Product Code FD-W-L1-S2412
