M.2 NVMe + M.2 SATA 80mm SSD PCIe x4 Adapter with Heat Sink

Quantity:
  • SKU: 14862967
  • Manufacturer: MICRO CONNECTORS INC.
  • MPN: PCIE-M20802HS
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$11.50
Quantity:
M.2 NVMe + M.2 SATA 80mm SSD PCIe x4 Adapter with Heat Sink

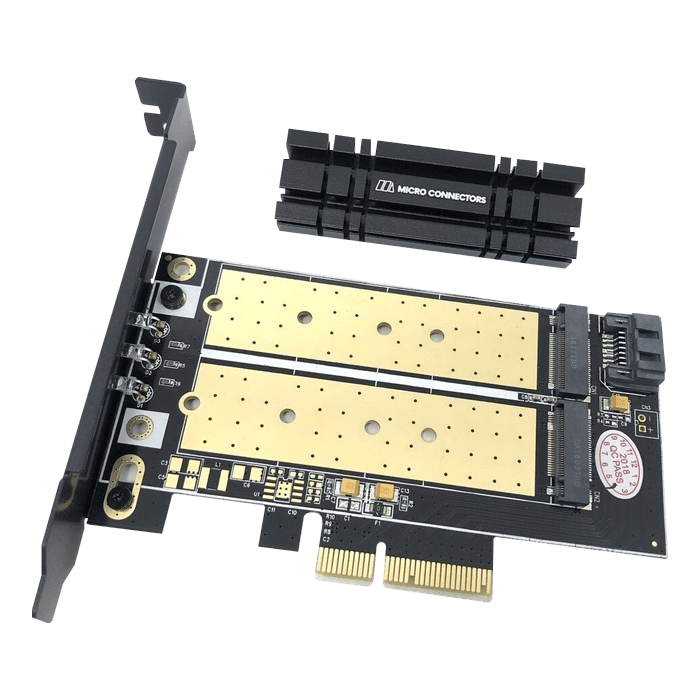

Micro Connectors M.2 NVMe + M.2 SATA 80mm SSD PCIe x4 Adapter with Heat Sink

  •  Heat sink kit to prevent overheating
  •  Supports two M.2 SSDs simultaneously
  •  Compatible with M.2 SSD up to 80mm length
  •  Converts one M.2 (M key) SSD to PCIe x4 interface
  •  Converts a second M.2 (B key) into SATA interface
  •  Gold-clad surface mounting to conduct and dissipate heat
  •  Low-profile bracket included
Model  PCIE-M20802HS
Interface  PCIe x4 and SATA III
M.2 SSD Key  NVMe or AHCI (M Key); SATA III (B Key)
Number of Drives  2
M.2 SSD Size  30mm, 42mm, 60mm, 80mm
OS support  Windows 7/8/8.1/10, Mac OS 10.2.8 or above, Linux
Box contents  PCIe x4 adapter, high and low-profile bracket, heat sink, thermal pad x3, mounting screws
Dimension  114.8 x 1.6 x 67.5mm
Weight  105g
UPC  715860033203
